interface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 24V AC | Mayer Electric

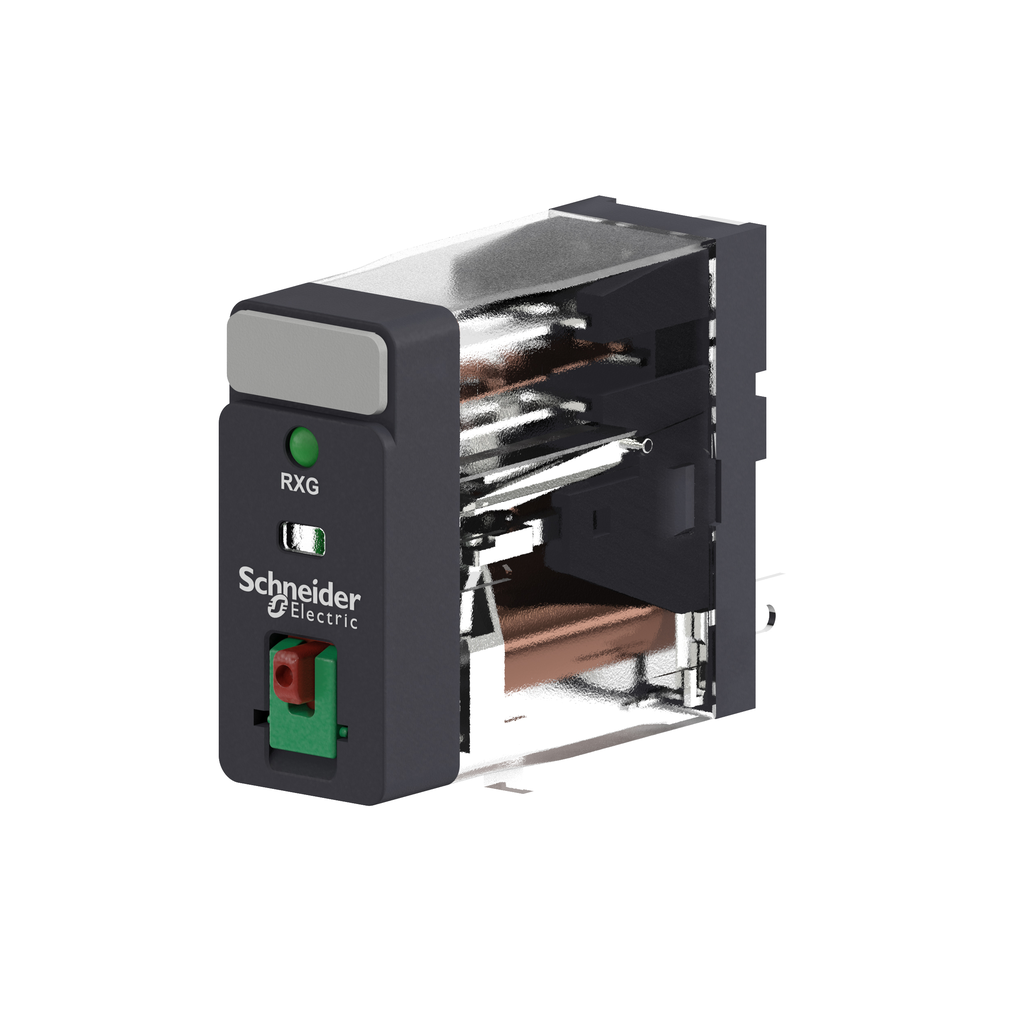

Shop SCHNEIDER ELECTRIC at Mayer. Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V AC

Mayer Electric Supply . RXG12B7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product Nameinterface plug in relay, Harmony Electromechanical Relays, 10A, 1CO, with LED, lockable test but to n, 24V AC | Mayer Electric
UPC3606480688669
Weight0.02
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Interface-plug-in-relay-10-A-1-CO-lockable-test-button-LED-24-V-AC-785901956471
jsonUrlData213aee4fb-5d8a-49af-b174-abd20063085c
keywordsSQUARE D, Mayer SQUARE D, 785901956471, RXG12B7
moq, multiple, tierMinQty11
MPNRXG12B7
qtyInStock0
SKUSQDRXG12B7
snippetShop SCHNEIDER ELECTRIC at Mayer. Interface plug-in relay, 10 A, 1 CO, lockable test button, LED, 24 V AC
tierPrice111.22
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1406006EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Circularity ProfileN/A
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Utilisation Coefficient20 %
Maximum Switching Capacity2500 VA
Safety Reliability DataB10d = 100000
[Uc] Control Circuit Voltage24 V AC 50/60 Hz
Average Consumption0.82 VA 60 Hz
Insulation Resistance1000 MOhm at 500 V DC
Torque Value0.8 N.m
Protection CategoryRT I
Test Levelslevel A group mounting
Contacts Materialsilver alloy (AgSnO2In2O3)
Pollution Degree2
Reset Time, Operating Time20 ms
Shock Resistance20 gn in operation || 100 gn not in operation
Dielectric Strength1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
Status Ledwith
Net Weight0.02 kg
Colour Of Coverstandard
Maximum Switching Voltage250 V AC || 30 V DC
Control Typelockable test button
Device Presentationcomplete product
Electrical Insulation Classclass F
[Ie] Rated Operational Current10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Electrical Durability100000 cycles NO resistive at 55 ?C || 100000 cycles NC resistive at 55 ?C
Mechanical Durability10000000 cycles
Resistance260 Ohm +/- 10 %
Control Circuit Voltage Limits0.8...1.1 Uc AC
Mounting Positionany position
Overvoltage CategoryIII
Load Current10 A 250 V AC
Drop-Out Voltage Threshold>= 0.3 Uc AC
Minimum Switching Capacity500 mW at 100 mA, 5 V DC
Contact Resistance100 mOhm
Range Of ProductHarmony Electromechanical Relays
Product Or Component Typeplug-in relay
Series Nameinterface relay
Contacts Type And Composition1 C/O
Local Signallingflag
Device Short NameRXG
[Ithe] Conventional Enclosed Thermal Current10 A -40-55 ?C
Product CertificationsEAC || CSA || UL || CE || DNV-GL
Ambient Air Temperature For Operation-40-70 ?C
StandardsIEC 61810-1 || CSA C22.2 No 14 || UL 508
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Relative Humidity10-85 %
Ambient Air Temperature For Storage-40-85 ?C
Ip Degree Of ProtectionIP40
