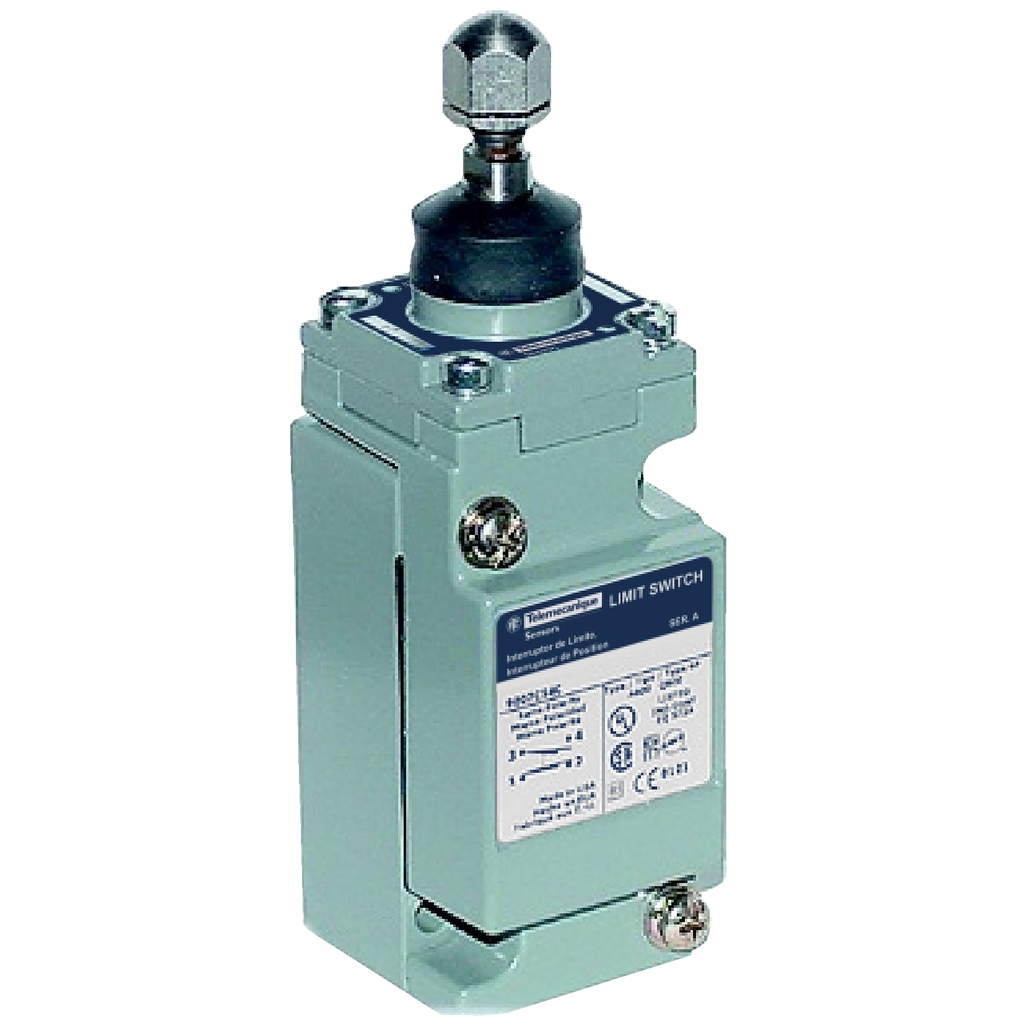

Limit switch, 9007, 600 V 10amp c +options | Mayer Electric

Shop SQUARE D at Mayer. LIMIT SWITCH 600V 10AMP C +OPTIONS

Mayer Electric Supply . 9007C62ED

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameLimit switch, 9007, 600 V 10amp c +options | Mayer Electric
UPCT785901540564
Weight1.25
WeightUnitlbs
Weight_AttribNet Weight
depth, length1.79
height10.44
height_AttribHeight
jsonUrlData/Product/SQUARE-D-LIMIT-SWITCH-600V-10AMP-C-OPTIONS-785901540564
jsonUrlData2e7d4a111-e2ab-4457-b643-abd200617da1
keywordsSQUARE D, Mayer SQUARE D, 785901540564, 9007C62ED
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN9007C62ED
qtyInStock0
SKUSQD9007C62ED
snippetShop SQUARE D at Mayer. LIMIT SWITCH 600V 10AMP C +OPTIONS
tierPrice1324.76
width1.55
width_AttribWidth
Switch Actuationon end
Type Of Approachvertical approach, 1 direction
Series Nameheavy duty
Contacts Type And Composition2(NC-NO)
Movement Of Operating Headlinear
Body Typeplug-in
Range Of Product9007
Positive Opening, Local Signallingwithout
Electrical Connectionscrew-clamp terminals AWG 22...AWG 12), 1-2
Contact Operationsnap action
Product Specific Applicationstandard box
Fixing Modeby the body
Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1
Product Or Component Typelimit switch
Materialmetal
Device Short Name9007C
Type Of Operatorstainless steel spring return plunger adjustable)
Number Of Poles2
Head Typeplunger head
Warranty18 months
Height5.22-5.22 in
Terminals Description Iso N?1(5-6)NC || (7-8)NO || (1-2)NC || (3-4)NO
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
Short-Circuit Protection10 A CC non-time delay
[Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA || 1.5 A 480 V AC, A600 NEMA || 3 A 240 V AC, A600 NEMA || 6 A 120 V AC, A600 NEMA || 0.11 A 250 V DC, R300 NEMA || 0.55 A 125 V DC, R300 NEMA
Contacts Materialsilver contacts
Mechanical Durability10000000 cycles
Body Material, Head Materialzinc
[Ithe] Conventional Enclosed Thermal Current10 A
Contact FormForm ZZ
Switch FunctionDPDT-DB
[Uimp] Rated Impulse Withstand Voltage2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
Width1.55 in
Depth1.79 in
Electrical Durability1000000 cycles
Net Weight1.25 lb(US)
Repeat Accuracy+/- 0.001 in linear travel of cam
Environmental DisclosureENVPEP111160EN
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-20-185 ?F
Environmental Characteristicstandard environment
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Ambient Air Temperature For Operation-20-185 ?F standard environment
Electrical Shock Protection Classclass 0 IEC 61140
Shock Resistance60 gn 9 ms IEC 60068-2-27
Vibration Resistance25 gn 10-150 Hz)IEC 60068-2-6
Protective Treatmentepoxy powder coat
Ip Degree Of ProtectionIP67 conforming to IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD9007C62ED111 @ $324.76
