Order YA36L2TC3890 by Burndy 510433 Cu Hylug 600 Kcmil 3/8" Stud 2 Holes, (Pack of 20 pcs) - US Mega Store

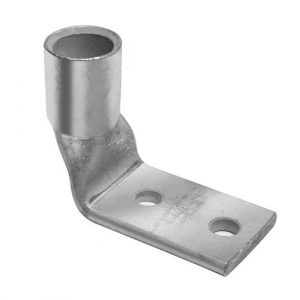

Cu compression tubular terminals-code conductor, 2 holes W/ insp window, 600 kcmil, 3/8" stud, Green, 22 or 472 index, 90 degree.

Burndy . YA36L2TC3890

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Connector Adapters
CategoryL3Burndy YA36L2TC3890
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA36L2TC3890 by Burndy 510433 Cu Hylug 600 Kcmil 3/8" Stud 2 Holes, (Pack of 20 pcs) - US Mega Store
UPC781810021200
diameter, length1.19
height2.68
height_AttribDimension - Height inch
length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty11
MPN, SKUYA36L2TC3890
qtyInStock-2
qtySourceFieldMap
snippetCu compression tubular terminals-code conductor, 2 holes W/ insp window, 600 kcmil, 3/8" stud, Green, 22 or 472 index, 90 degree.
tierPrice191.86
width1.74
width_AttribDimension - Pad Width inch
Color CodeGreen
Connector TypeTerminal
Die Index22;472
Feature - Barrel Type, Physical Attribute - Tongue TypeStandard
Material, Conductor - MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
Trade NameHYLUG
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818100212000
Dimension - B Length fraction1-3/8 in
Dimension - B Length inch1.38 in
Dimension - Bolt Hole Size inch0.39 in
Dimension - Bolt Size fraction, Dimension - Stud Size inch3/8
Dimension - Height inch2.68 in
Dimension - Hole Size inch0.40 in
Dimension - Hole Size mm10 mm
Dimension - L Length Overall mm71 mm
Dimension - Length Overall inch2.81 in
Dimension - N inch0.50 in
Dimension - Outside Diameter inch1.19 in
Dimension - Pad Width inch1.74 in
Dimension - Strip Length inch1-3/4
Dimension - Z inch0.52 in
Physical Attribute - Tongue Angle90 Degree
Rating - KVA35 kV
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Str Size600 kcmil
Conductor - Copper Str Size Range500 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA36L2TC38901-211 @ $91.86
