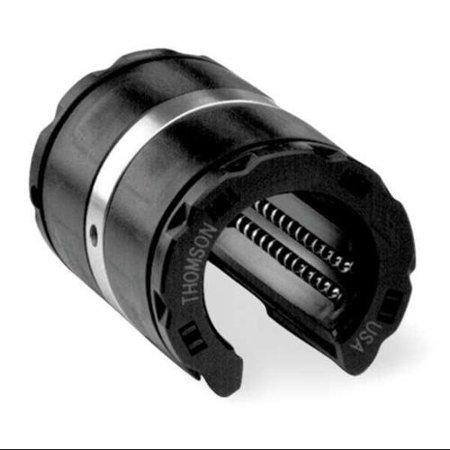

Ball Bushing, Open, Bore Dia 40 mm, Inside Dia Tolerance + .016, Outside Dia 62 mm, Required Housing Bore Dia 62 mm, Slot Width 19.00 mm, Slot Angle (Degrees) 54, Retention Hole Dia 3 mm, Retention Hole Location 1.50 mm Above Center Line, Between Grooves 60.30 mm, Length 80 mm, Load Capacity 13700 N, Temp Range 0 - 185 F, Delrin Material, For Use With Thomson Shafting Features Item: Ball Bushing Bearing Length (mm): 80 Material: Delrin Outside Dia.: 62mm Temp. Range (F): 0 - 185 Type: Open Load Capacity: 13,700 Accelerated Speed: 150 Milimeters/Second Self-Alignment: Yes Steady State Speed: 3 Milimeters/Second Slot Width (mm): 10.13 Inside Dia. Tolerance: + .016 Dimension F: 3mm Dimension T: 0.750 Dimension G: 1.50 mm Above Center Line Retention Hole Dia. (mm): 3mm Slot Angle (Degrees): 54 Dynamic Load Capacity (N): 13,700 Required Housing Bore Dia. (mm): 62 Bore Dia.: 40mm

Ball Bushing, Open, Bore Dia 40 mm, Inside Dia Tolerance + .016, Outside Dia 62 mm, Required Housing Bore Dia 62 mm, Slot Width 19.00 mm, Slot Angle (Degrees) 54, Retention Hole Dia 3 mm, Retention Hole Location 1.50 mm Above Center Line, Between Grooves 60.30 mm, Length 80 mm, Load Capacity 13700 N, Temp Range 0 - 185 F, Delrin Material, For Use With Thomson Shafting Features Item: Ball Bushing Bearing Length (mm): 80 Material: Delrin Outside Dia.: 62mm Temp. Range (F): 0 - 185 Type: Open Load Cap
