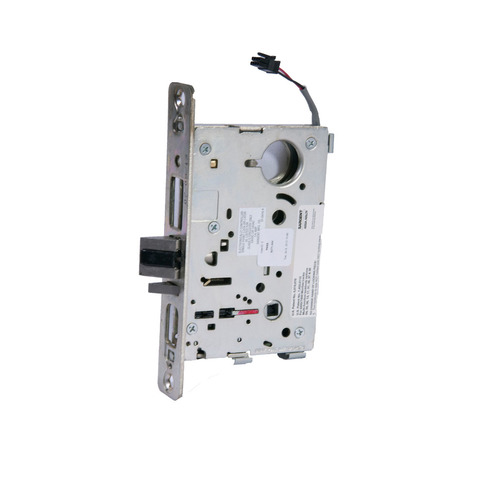

Sargent 8271-12V 26D 8271-12V Electrified Mortise Lock Body Only, Satin Chrome

8200 SeriesMortise Locks With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable?far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing?for additional resistance against vandalism and unauthorized entry.The electromechanical version of the 8200 Series Mortise Lock operates from 12 to 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technol

Sargent . 8271-12V 26D

Gallery

Attributes

Brand name, Manufacturer name, BrandSargent
ManufacturerSargent Sargent Manufacturing
CategoryIdL3Electric Locks
CategoryL1Windows and Door Hardware
CategoryL2Door and Window Security Hardware
DimensionUnitinch
Extra Product NameSargent 8271-12V 26D 8271-12V Electrified Mortise Lock Body Only, Satin Chrome
Voltage12V
atoms, moq, multiple, tierMinQty1, Package Qty, NumberOfItems, PackageQuantity1
color, Color, Finish, Finish Description, Finish FamilySatin Chrome
height4.875
height_AttribStrike Height
length9.25
length_AttribPackage Length
MPN, SKU, PartNumber8271-12V 26D
qtyInStock-2
qtySourceFieldMap
tierPrice1544.17
width5.625
width_AttribPackage Width
GradeANSI/BHMA Grade 1
ApplicationIdeal for All Types of Applications; Fire Doors and Windstorm Applications
HandField Reversible
PowerHard Wired
Color Code626/US26D
Function71-Fail Secure
Door Thickness1-3/4 inch
Fire Rated2 Hours {B}
OriginUSA
BAA QualifiedYes
Package Height4.375"
Package Length9.25"
Package Volume227.6367188
Package Width5.625"
Amp Draw500mA Peak, 15mA Holding
Bolt Protection3/4"
Operating Voltage12VDC/24VDC
ScrewsCombination
Special MarksFire rated 2 Hours {B}
Strike Height4-7/8"
Strike Number82-0110
Strike TypeCurved Lip
Strike Width1-1/4"
Base MaterialBrass or Bronze
Product TypeElectronic Mortise Lock
ADA CompliantYES
Included Components(2) Nickel Silver Keys
Strike Size4-7/8" x 3/32"
Cylinder MaterialBrass
Hub MaterialCold Forged Steel
StandardsANSI/BHMA A156.13; UL-cUL
Case Dimensions7/64" Thick
Function DescriptionPower On, Unlocks Outside Lever
Front Size8" x 1-1/4"
Function FamilyFail Secure
Peak Current0.5A
Strike Lip1-1/4 Inch
Minimum Stile Width4-3/4 Inch
Electrified Features12/24VDC at 0.015A Continuous
FeaturesFast and Easy Installation; Lock is Easily Re-Handed Without Removing Parts or Opening the Lock Case; Patented Design and Construction; Pre-Assembled Components Make Installation Fool-Proof
Backset2-3/4 Inch
Warranty10 Year Limited Warranty; 2 Year Limited Warranty on Electrified Locks; Warranty Limited to Replacement of Lockbody and Components
Cylinder TypeConventional
Latch Throw3/4 Inch
Manufacturer ParentAssa Abloy
Latchbolt Size1" x 5/8"
Latchbolt Type1-Piece Anti-Friction Reversible Latch
Sub-SeriesEAC_Electronic_Mortise_Locks_sargent_239
ASIN, AsinB007U854TM
Amount932.00
BindingElectronics
CurrencyCodeUSD
Height4.00 75
IsBrandQueryTrue
Label, Publisher, StudioSargent Manufacturing
Length9.00
ProductCategoryId511386 home_improvement_display_on_website
ProductGroupPhotography
ProductTypeNameLOCK
Rank2464190 2472199 2473951 2474536 2475859 2478597 2480220 2502392 2503083 2517616 2547178 5273 5288 5299 5303 5305 5310 5327 5464 5469 5490 5600
Sku8271-12V 26D 8271-12V LA 26D LH 8271-12V LA 26D RH 8271-12V LE 26D 8271-12V LE1B 26D 8271-12V LE1F 26D 8271-12V LE1W 26D 8271-12V LJ 26D 8271-12V LL 26D 8271-12V LNE 26D 8271-12V LNF 26D 8271-12V LNW 26D 8271-12V OF 26D 8271-12V OL 26D 8271-12V OP 26D 8271-12V WTB 26D 8271-12V WTF 26D 8271-12V WTJ 26D 8271-12V WTW 26D SARGENT 8271-12V 26D SARGENT 8271-12V LE 26D SARGENT 8271-12V OF 26D
TitleSargent 8271-12V 26D Electric Mortise Lock Sargent Manufacturing - 8271-12V 26D - 8271-12V 26D Sargent Electric Mortise Lock
URLhttps://m.media-amazon.com/images/I/31jEd8wjTPL._SL75_.jpg
Unitsinches pixels
Width50 6.00

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK Hardware8271-12V 26D1-211 @ $544.17
