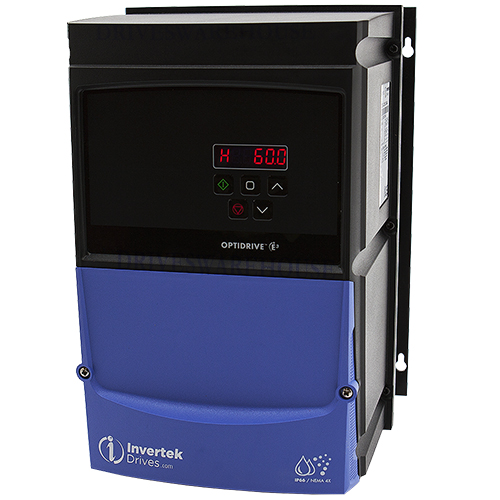

Invertek ODE-3-320240-3F4A 5.5kW 7.5Hp 24A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD

The ODE-3-320240-3F4A is produced by Invertek and is described as a Invertek ODE-3-320240-3F4A 5.5kW 7.5Hp 24A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD

Invertek . ODE-3-320240-3F4A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODE-3-320240-3F4A 5.5kW 7.5Hp 24A Output Current 200~240V 3Ph Input 200~240V 3Ph Output IP66/NEMA4X Indoor/Outdoor OptiDrive E3 Economy VFD
Voltage, Input voltage200 / 240V
Weight7.6
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length6.9
height10.3
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty11
MPNODE-3-320240-3F4A
qtyInStock0
SKU6092709
tierPrice1960.00
width10.62992125984252
width_AttribPackaged dimensions width
Frame, Phase, Drive dimensions size, Input phases3
Height10.3 in
Depth6.9 in
Rated power5.5 kW/7.5 HP
Width (in)5.2
Supply fuse or MCB (type B)40 A
Packaged dimensions depth440 mm (17.32 in)
Supply current continuous26.4 A
Drive dimensions weight6.6 kg (14.55 lbs)
Max motor cable size, Max supply cable size8 mm? (0.01 in?)
Brake transistorInternal brake transistor
Supply voltage200-240 V
Output current24 A
Drive dimensions fixings4 x M4
Drive dimensions depth225 mm (8.86 in)
Packaged dimensions weight7.6 kg (16.76 lbs)
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height310 mm (12.2 in)
EMC filterInternal EMC filter
DisplayLED
Packaged dimensions height305 mm (12.01 in)
Motor output rating5.5 kW (7.5 HP)
Drive dimensions width211 mm (8.31 in)
EnclosureIP66 outdoor non-switched
Packaged dimensions width270 mm (10.63 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092709111 @ $960.00
driveswarehouse.comODE-3-320240-3F4A1-211 @ $960.00
vfds.comODE-3-320240-3F4A111 @ $1071.43
