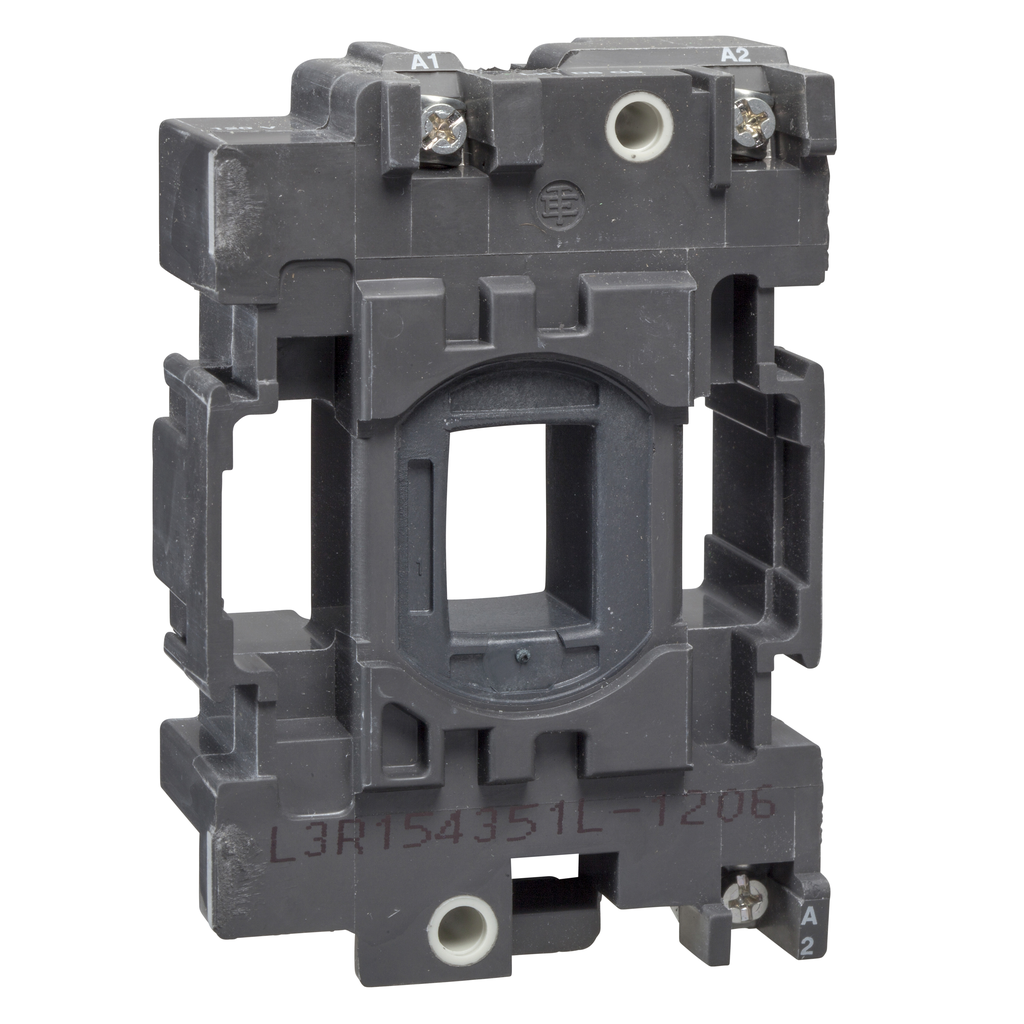

TeSys Deca - contactor coil - LX1D6 - 380 V AC 50/60 Hz for 80 & 95 A contactor | Mayer Electric

Mayer Electric Supply . LX1D6Q7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product NameTeSys Deca - contactor coil - LX1D6 - 380 V AC 50/60 Hz for 80 & 95 A contactor | Mayer Electric
UPC785901920557
Weight0.28
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SCHNEIDER-ELECTRIC-TeSys-D-contactor-coil-LX1D6-380-V-AC-50-60-Hz-for-80-And-95-A-contactor-785901920557
jsonUrlData2c23f129f-e7d2-48a1-b218-abd20062747d
moq, multiple, tierMinQty11
MPNLX1D6Q7
qtyInStock0
SKUSQDLX1D6Q7
tierPrice158.66
Average Resistance310 Ohm 20 ?C
[Uc] Control Circuit Voltage380 V AC 50/60 Hz
Control Circuit TypeAC 50/60 Hz
Product Or Component Typecontactor coil
RangeTeSys
Inductance Of Closed Circuit20 H
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability4 Mcycles
Product CompatibilityLC1D95 || LC1D80
Device Short NameLX1D6
Warranty18 months
Control Circuit Voltage Limitsdrop-out 0.3...0.6 Uc 50/60 Hz 55 ?C) || operational 0.8...1.1 Uc 50 Hz 55 ?C) || operational 0.85...1.1 Uc 60 Hz 55 ?C)
Inrush Power In Va245-245 VA 60 Hz 0.75 20 ?C) || 245-245 VA 50 Hz 0.75 20 ?C)
Coil Technologywithout built-in suppressor module
Hold-In Power Consumption In Va26-26 VA 60 Hz 0.3 20 ?C) || 26-26 VA 50 Hz 0.3 20 ?C)
Heat Dissipation6-10 W 50/60 Hz
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP110205EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation-5-60 ?C
Net Weight0.28 kg

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLX1D6Q7111 @ $58.66
