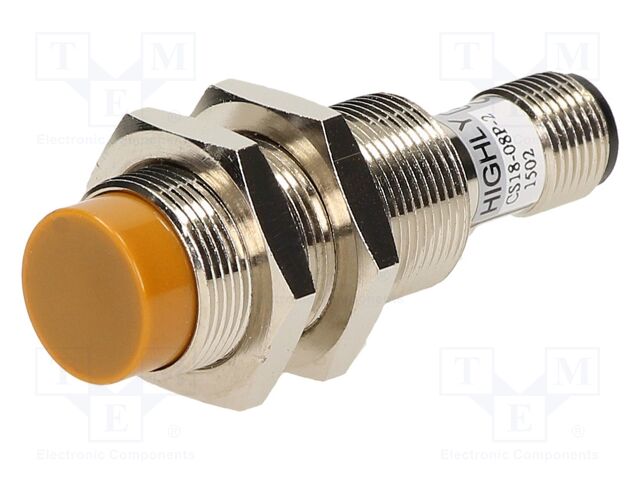

HIGHLY CS18-08P-2 | Sensor: inductive; OUT: PNP / NC; 0?8mm; 10?30VDC; M18; IP67; 100mA
HIGHLY CS18-08P-2 | Sensor: inductive; OUT: PNP / NC; 0?8mm; 10?30VDC; M18; IP67; 100m
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | HIGHLY |
|---|---|
| CategoryL1 | Automation |
| CategoryL2 | Sensors and Transducers |
| CategoryL3 | Inductive Sensors |
| CategoryL4 | Cylindrical Inductive Sensors |
| DimensionUnit | mm |
| Extra Product Name | HIGHLY CS18-08P-2 | Sensor: inductive; OUT: PNP / NC; 0?8mm; 10?30VDC; M18; IP67; 100mA |
| atoms, moq, multiple | 1 |
| jsonUrlData | cc463156a567fe3c2210d240ea07a015.5 |
| jsonUrlData2 | bf34cb755c626bd5c2fb |
| keywords | HIGHLY, CS18-08P-2, Automation, Sensors and Transducers, Inductive Sensors, Cylindrical Inductive Sensors, DC Cylindrical Inductive Sensors |
| length | 60.0 |
| length_Attrib | Overall length |
| MPN, SKU | CS18-08P-2 |
| qtyInStock | 0 |
| snippet | HIGHLY CS18-08P-2 | Sensor: inductive; OUT: PNP / NC; 0?8mm; 10?30VDC; M18; IP67; 100m |
| Type of sensor | inductive |
| Output configuration | PNP / NC |
| Range | 0...8mm |
| Switch housing | M18 |
| Connection | connector M12 |
| IP rating | IP67 |
| Max operating current | 100mA |
| Operating temperature | -25...70?C |
| Kind of forehead | non-embedded |
| Body material | brass |
| Switching frequency max | 1.5kHz |
| Overall length | 60mm |
| Body plating | nickel |
| Number of pins | 4 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| CS18-08P-2 | 1 | 1 |
