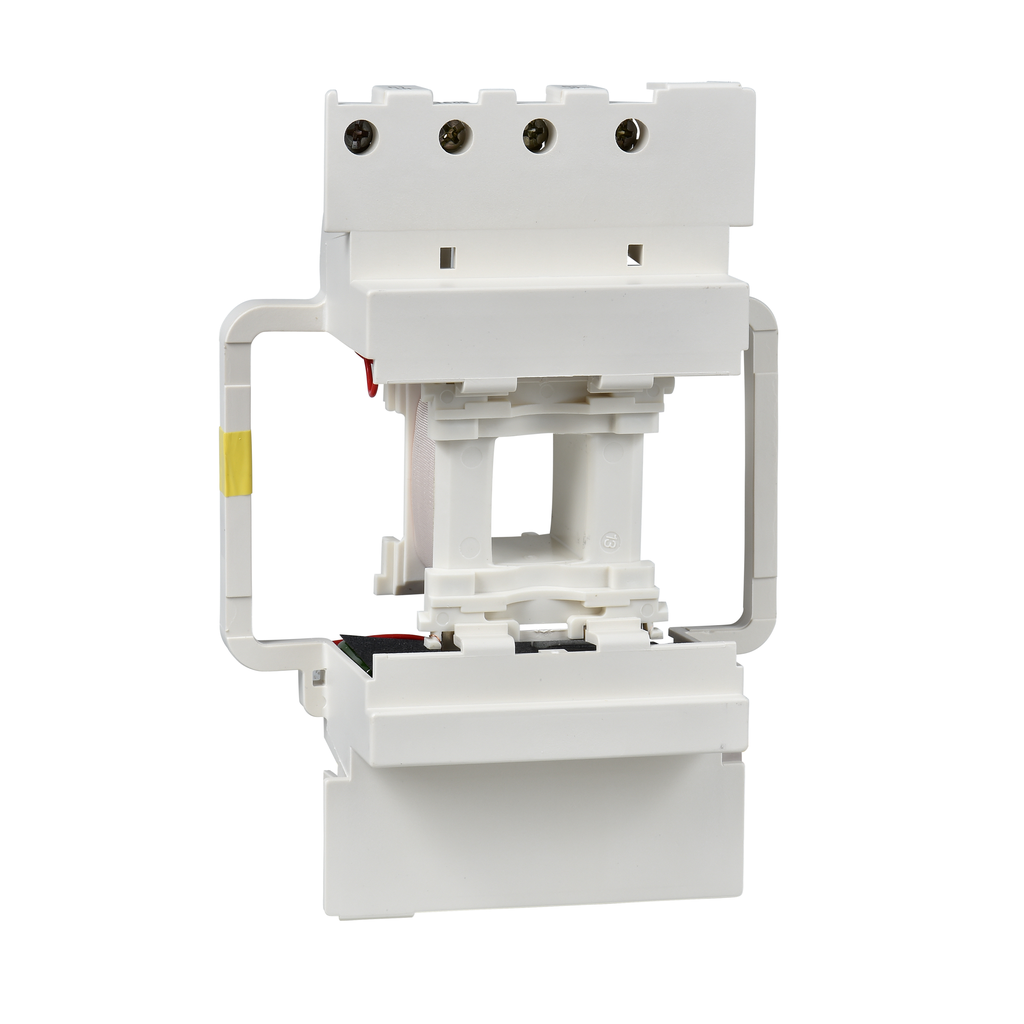

contactor coil - TeSys Deca - LX1D8 - 200 V AC 50/60 Hz - for 115..150 A contactor | Mayer Electric

Mayer Electric Supply . LX1D8L7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
Extra Product Namecontactor coil - TeSys Deca - LX1D8 - 200 V AC 50/60 Hz - for 115..150 A contactor | Mayer Electric
UPC785901303749
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Contactor-coil-TeSys-D-LX1D8-200-V-AC-50-60-Hz-for-115-150-A-contactor-785901303749
jsonUrlData2e1ea69b1-0288-4b60-8e27-abd200627500
moq, multiple, tierMinQty11
MPNLX1D8L7
qtyInStock0
SKUSQDLX1D8L7
tierPrice1200.51
[Uc] Control Circuit Voltage200 V AC 50/60 Hz
Maximum Operating Rate1200 cyc/h 60 ?C
Control Circuit TypeAC 50/60 Hz
Mechanical Durability8 Mcycles
Product Or Component Typecontactor coil
Product CompatibilityLC1D115 || LC1D150
Device Short NameLX1D8
RangeTeSys
Warranty18 months
Coil Technologywithout built-in suppressor module
Control Circuit Voltage Limitsdrop-out 0.3...0.5 Uc 50/60 Hz 55 ?C) || operational 0.8...1.15 Uc 50/60 Hz 55 ?C)
Hold-In Power Consumption In Va2-18 VA 60 Hz 0.9 20 ?C) || 2-18 VA 50 Hz 0.9 20 ?C)
Inrush Power In Va280-350 VA 60 Hz 0.9 20 ?C) || 280-350 VA 50 Hz 0.9 20 ?C)
Heat Dissipation3-4.5 W 50/60 Hz
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP110205EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation-5-60 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLX1D8L7111 @ $200.51
