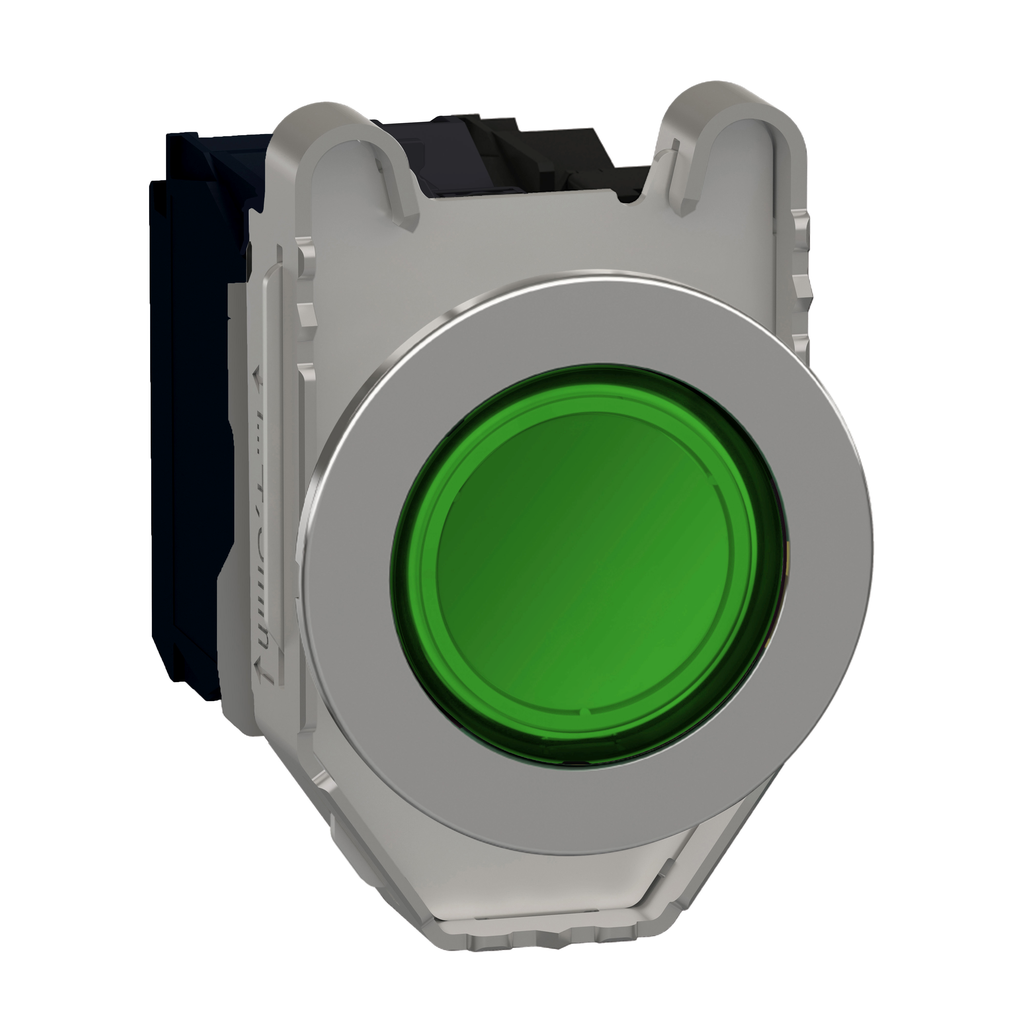

Harmony XB4, Illuminated push button flush mounted, metal, green, ?30, integral LED, 24V AC/DC 1 NO + 1 NC | Mayer Electric

SQUARE D . SQDXB4FW33B5

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameHarmony XB4, Illuminated push button flush mounted, metal, green, ?30, integral LED, 24V AC/DC 1 NO + 1 NC | Mayer Electric
UPC3606489580667
Weight0.132
WeightUnitkg
Weight_AttribNet Weight
depth, length55.0
height47.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Harmony-XB4-Illuminated-push-button-flush-mounted-metal-green-Ø30-integral-LED-24V-AC-DC-1-NO-1-NC-3606489580667
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDXB4FW33B5
qtyInStock0
tierPrice195.70
width36.6
width_AttribWidth
Operator Additional Informationwith plain lens
Range Of ProductHarmony XB4
Light Sourceprotected LED
Mounting Diameter30.5 mm
Type Of Operatorspring return
Product Or Component Typeilluminated push-button
Shape Of Signaling Unit Headround
Fixing Collar Materialzamak
Head Typebuilt-in-flush
Contacts Type And Composition1 NO + 1 NC
Bezel Materialchromium plated metal
Contact Operationslow-break
Operator Profilegreen flush
Device Short NameXB4F
[Us] Rated Supply Voltage24 V AC/DC 50/60 Hz
Bulb Baseintegral LED
Warranty18 months
Contacts Usagestandard contacts
Height47 mm
Terminals Description Iso N?1(21-22)NC || (13-14)NO
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force3.5 N NC changing electrical state || 3.8 N
Fixing Modeby screws 0.8 N.m
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwith EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Net Weight0.132 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Current Consumption18 mA
Device Presentationcomplete product
Resistance To High Pressure Washer7000000 Pa 55 ?C 0.1 m
Service Life100000 h at rated voltage and 25 ?C
Surge Withstand1 kV IEC 61000-4-5
[Ui] Rated Insulation Voltage600 V 3)EN/IEC 60947-1
Signalling Typesteady
Supply Voltage Limits19.2-30 V DC || 21.6-26.4 V AC
Mechanical Durability10000000 cycles
Width36.6 mm
Depth55 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Device Mountingbuilt-in
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL Listed || CSA || CCC || EAC
Ik Degree Of ProtectionIK06 IEC 50102
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Electrical Shock Protection Classclass I IEC 60536
Protective TreatmentTH
Resistance To Fast Transients2 kV IEC 61000-4-4
Electromagnetic Emissionclass B IEC 55011
