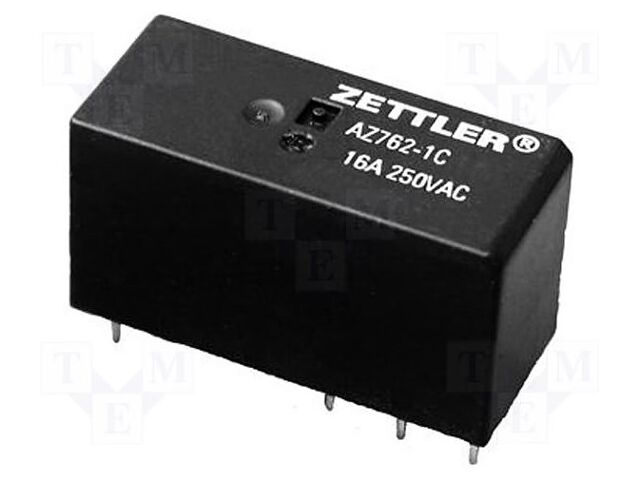

ZETTLER AZ762-1CB-05DE | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 16A; 16A/250VAC; PCB
ZETTLER AZ762-1CB-05DE | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 16A; 16A/250VAC; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ762-1CB-05DE | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 16A; 16A/250VAC; PCB |
| atoms, moq, multiple | 1 |
| jsonUrlData | ceab39f870fee0ede168b59769c4d278. |
| jsonUrlData2 | 23779844d3f2849ae6f2 |
| keywords | ZETTLER, AZ762-1CB-05DE, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ762-1CB-05DE |
| qtyInStock | 0 |
| snippet | ZETTLER AZ762-1CB-05DE | Relay: electromagnetic; SPDT; Ucoil: 5VDC; 16A; 16A/250VAC; PC |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 5V DC |
| Contact current max | 16A |
| AC contacts rating @R | 16A / 250V AC |
| DC contacts rating @R | 16A / 24V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 62? |
| Coil voltage min | 3.5V DC |
| Coil voltage max | 10.2V DC |
| Operate time | 7ms |
| Body dimensions | 29.5x13.2x16.2mm |
| Release time | 3ms |
| Coil power consumption | 200mW |
| Operating temperature | -40...85?C |
| Relay series | AZ762 |
| Contact resistance | 50m? |
| Terminal pitch | 5mm |
