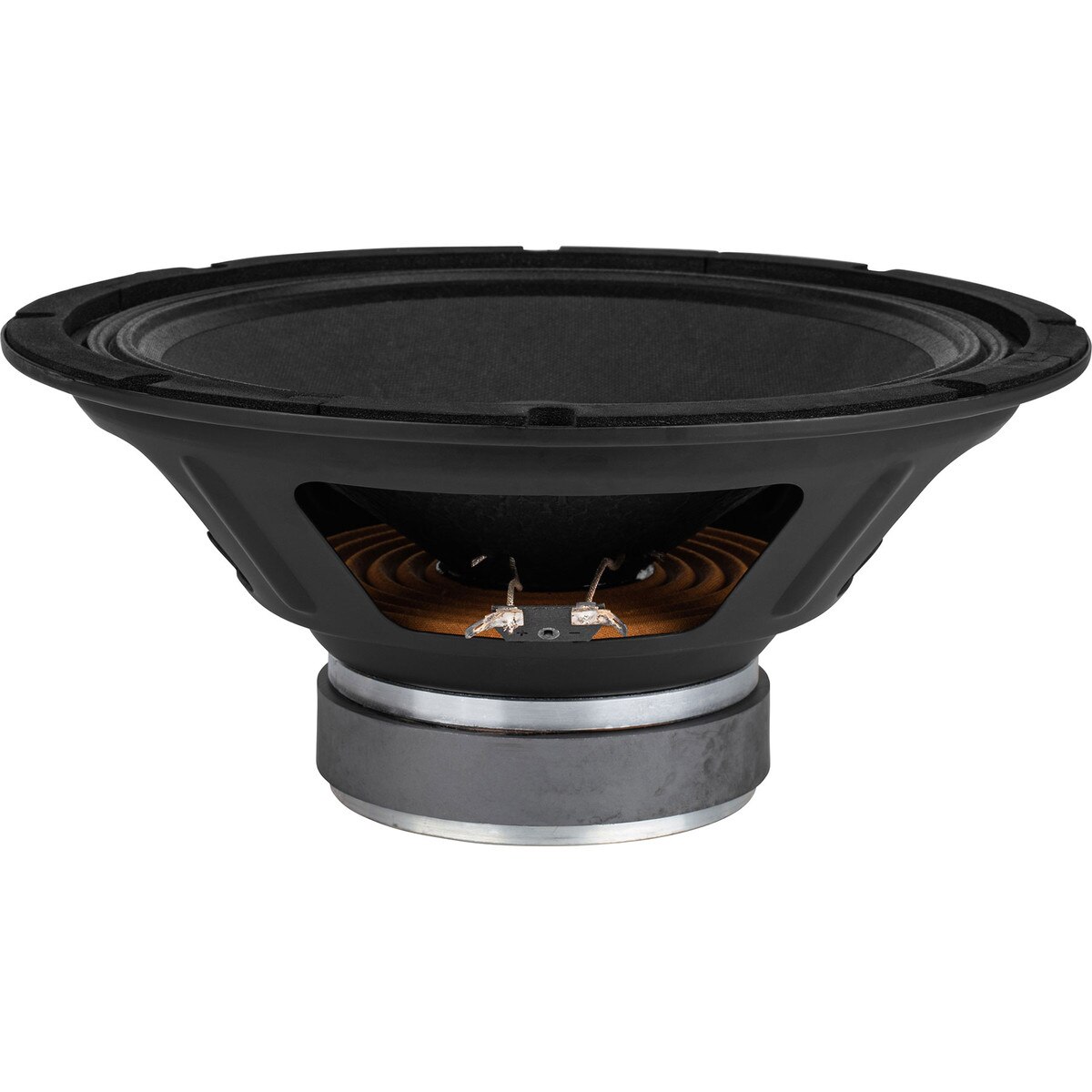

Community 108922 12" VERIS Subwoofer Driver 8 Ohm

Community 108922 12" VERIS Subwoofer Driver 8 Ohm. Part Number: 299-4124 by Factory Buyouts.

Factory Buyouts . VERIS

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameCommunity 108922 12" VERIS Subwoofer Driver 8 Ohm
UPC848864061399
Weight9.45
WeightUnitlbs
depth, length5.5
diameter, height, width12.25
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelVERIS
qtyInStock0
SKU, Part Number299-4124
snippetCommunity 108922 12" VERIS Subwoofer Driver 8 Ohm. Part Number: 299-4124 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.75
Power Handling (RMS)150 Watts
Power Handling (MAX)375 Watts
Impedance8?
Frequency Response30 to 1,000Hz
Sensitivity93dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)32Hz
DC Resistance (Re)5.22?
Voice Coil Inductance (Le)4.06mH
Mechanical Q (Qms)5.11
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.33
Compliance Equivalent Volume (Vas)4.7ft?
Mechanical Compliance of Suspension (Cms)0.39mm/N
BL Product (BL)13.74T?m
Diaphragm Mass Inc Airload (Mms)62g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)492.4cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.25"
Baffle Cutout Diameter11"
Depth5.5"
# Mounting Holes8
Sealed Volume0.8ft?
Sealed F383Hz
Vented Volume1.9ft?
Vented F353Hz
