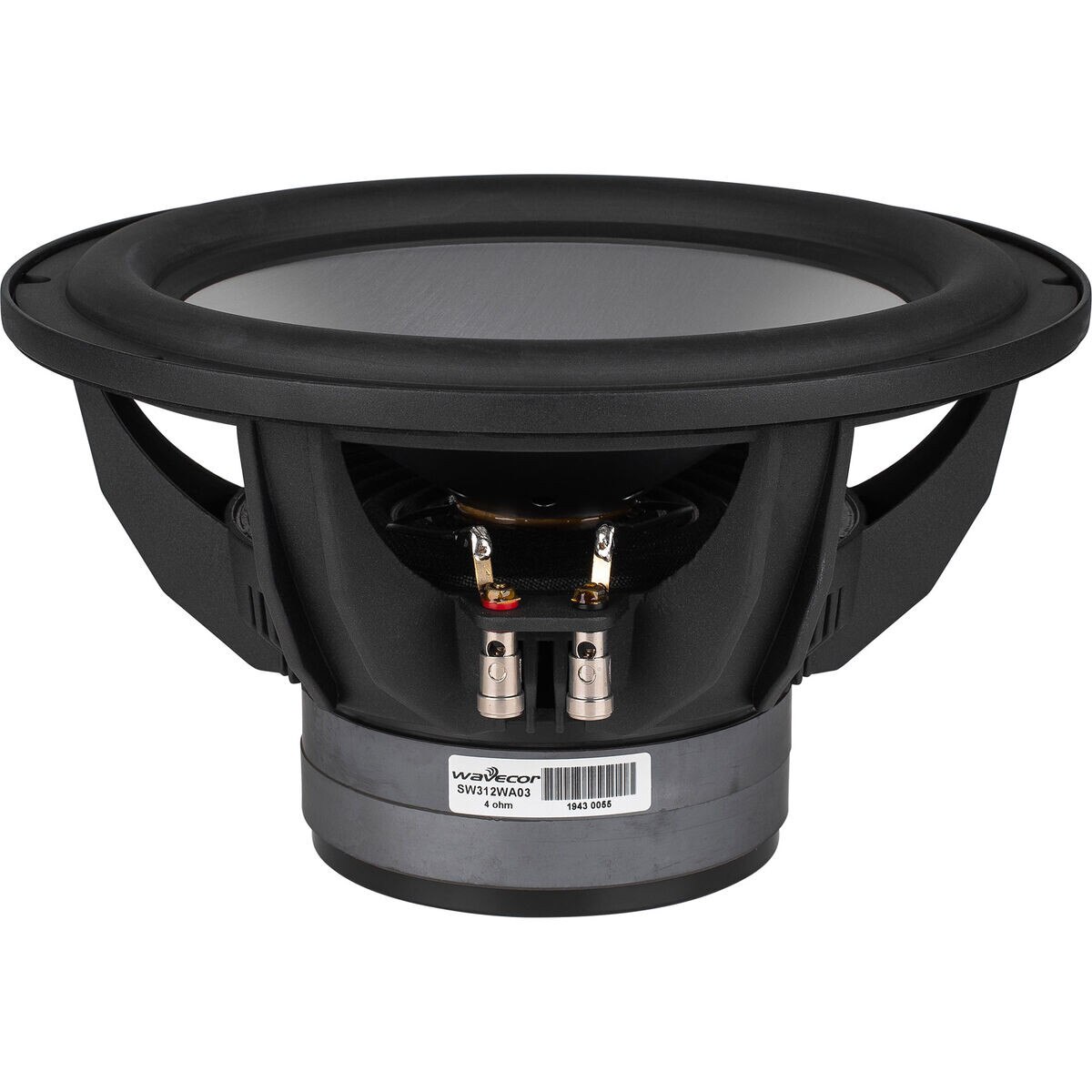

Wavecor SW312WA03 12-1/4" Aluminum Cone Subwoofer 4 Ohm

Wavecor SW312WA03 12-1/4" Aluminum Cone Subwoofer 4 Ohm. Part Number: 298-1082 by Wavecor.

Wavecor . SW312WA03

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandWavecor
DimensionUnitinch
Extra Product NameWavecor SW312WA03 12-1/4" Aluminum Cone Subwoofer 4 Ohm
UPC848864054421
Weight18.95
WeightUnitlbs
depth, length6.42
diameter, height, width12.28
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelSW312WA03
qtyInStock0
SKU, Part Number298-1082
snippetWavecor SW312WA03 12-1/4" Aluminum Cone Subwoofer 4 Ohm. Part Number: 298-1082 by Wavecor.
Unit of MeasureEach
Nominal Diameter12"
Power Handling (RMS)250 Watts
Power Handling (MAX)300 Watts
Impedance4?
Frequency Response28 to 300Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)28Hz
DC Resistance (Re)3.2?
Voice Coil Inductance (Le)1.55mH
Mechanical Q (Qms)11.5
Electromagnetic Q (Qes)0.5
Total Q (Qts)0.48
Compliance Equivalent Volume (Vas)2.15ft?
Mechanical Compliance of Suspension (Cms)0.18mm/N
BL Product (BL)14.5T?m
Maximum Linear Excursion (Xmax)11.5mm
Surface Area of Cone (Sd)488cm?
Cone Material, Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Overall Outside Diameter12.28"
Baffle Cutout Diameter10.87"
Depth6.42"
# Mounting Holes8
Sealed Volume0.916ft?
Sealed F349.75Hz
Vented Volume3.019ft?
Vented F323.91Hz
