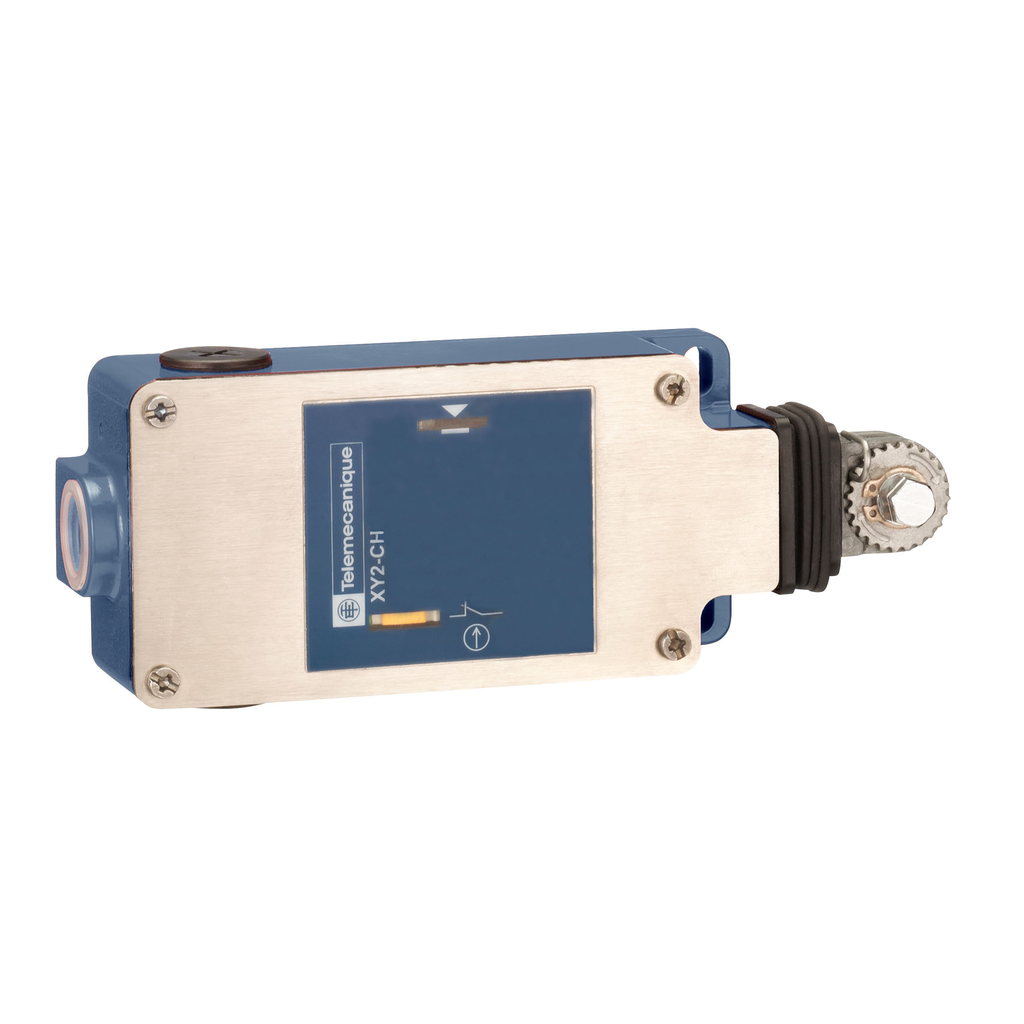

Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable 240 VAC 10amp XY2C +options | Mayer Electric

Mayer Electric Supply . XY2CH33010H7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitm
Extra Product NameLatching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, cable 240 VAC 10amp XY2C +options | Mayer Electric
UPC785901722502
Weight1.45
WeightUnitkg
Weight_AttribNet Weight
jsonUrlData/Product/SQUARE-D-Latching-emergency-stop-rope-pull-switch-Telemecanique-rope-pull-switches-XY2C-cable-240-VAC-10amp-XY2C-options-785901722502
jsonUrlData200a1c03a-55ba-4c5d-8726-ade40063c167
length15.0
length_AttribTrigger Cable Maximum Length
moq, multiple, tierMinQty1, Number Of Cables1
MPNXY2CH33010H7
qtyInStock0
SKUSQDXY2CH33010H7
tierPrice1309.46
Range Of ProductTelemecanique Emergency stop rope pull switches XY2C
Product Or Component Typelatching emergency stop rope pull switch
Housing Colourblue
Overvoltage Categoryclass I EN/IEC 61140 || class I NF C 20-030
Device Short Name, Compatibility CodeXY2CE
Warranty18 months
Resetby booted push-button
Terminals Description Iso N?1(21-22)NC || (13-14)NO
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60269
Positive Openingwith EN/IEC 60947-5-1
[Ithe] Conventional Enclosed Thermal Current10 A
MarkingCE
Local Signallingwithout pilot light
Net Weight1.45 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-1
Trigger Cable Maximum Length15 m
Connections - Terminalsscrew clamp terminal, 1 x 0.5...2 x 1.5 mm? || screw clamp terminal, 1 x 0.34...2 x 0.75 mm?
Contacts Type And Composition1 NC + 1 NO
[Ui] Rated Insulation Voltage500 V 3)EN/IEC 60947-1 || 300 VUL 508
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Contact Operationsnap action
Distance Between Cable Supports5-5 m
Mechanical Durability800000 cycles
Cable Entry Number3 tapped entry Pg 13.5 cable gland
Body Materialzamak
Trigger Cable Anchor PointRH or LH side
Safety Reliability DataB10d = 4000000 value given for a life time of 20 years limited by mechanical or contact wear IEC 60947-5-5
Cover Materialstainless steel
Tightening Torque0.8-1.2 N.m
Maximum Resistance Across Terminals25 MOhm EN/IEC 60255-7 category 3 || 25 MOhm NF C 93-050 method A
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP111159EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation-25-70 ?C
Standardsmachinery directive 2006/42/EC || EN/ISO 13850 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || work equipment directive 2009/104/EC || CSA C22.2 No 14
Product CertificationsUL category NISD emergency stop devices || CCC
Shock Resistance50 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance10 gn 10-300 Hz)EN/IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Ambient Air Temperature For Storage-40-70 ?C
Protective TreatmentTC

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXY2CH33010H7111 @ $309.46
