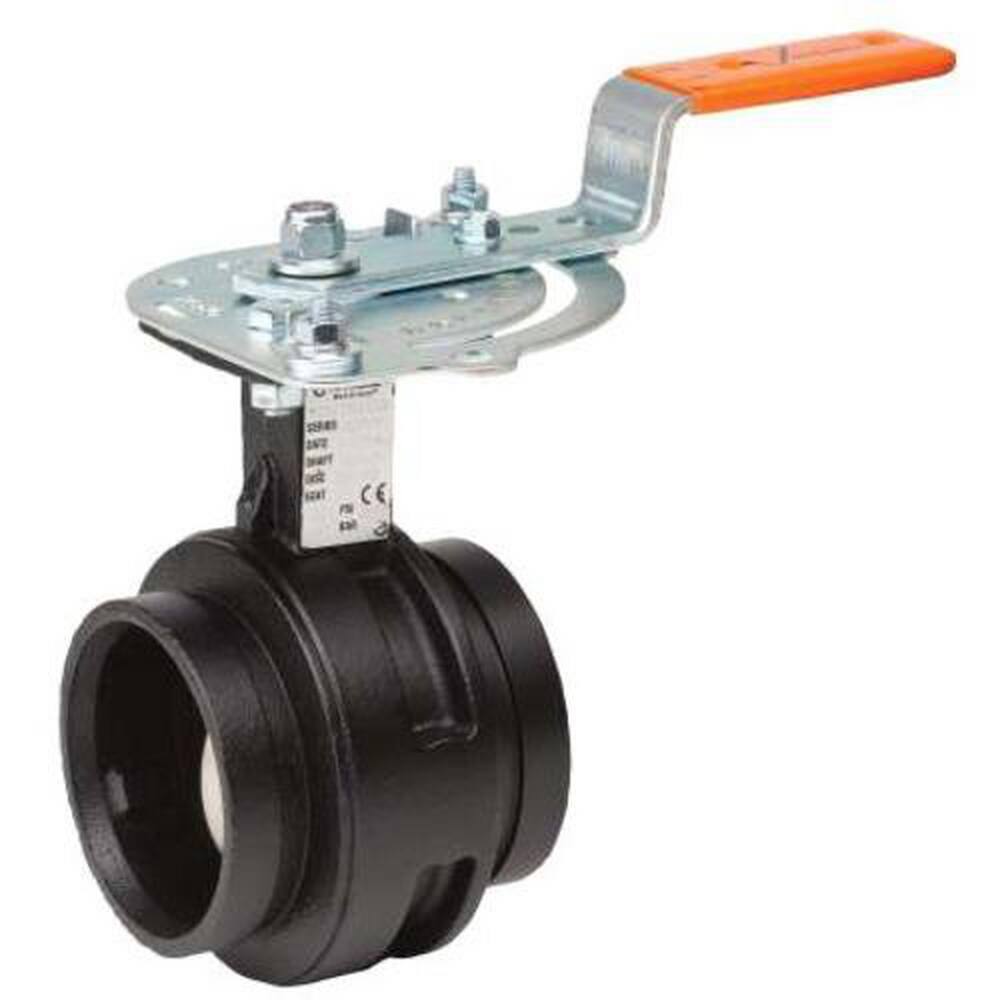

Victaulic . V040761XE2
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Victaulic |
|---|---|
| DimensionUnit | inch |
| Weight | 11.80 |
| Weight_Attrib | Weight |
| length | 11.16 |
| length_Attrib | Length |
| moq, multiple | 1 |
| MPN | V040761XE2 |
| qtyInStock | Call for Availability |
| SKU | 3038483 |
| width | 4.63 |
| width_Attrib | Width |
| ANSI Specifications | ANSI 300, ANSI 61 |
| ASTM Specifications | ASTM A-351 Grade CF8M, ASTM A-536 Grade 65-45-12, ASTM A-564, ASTM A-582, ASTM B-733 |
| Clean Bagged, FM Approved, IAPMO Listed | No |
| Coating | Stainless Steel |
| Collection | Vic-300™ MasterSeal™ |
| End Connection 1, End Connection 2, End Connections, Valve Body Style | Grooved |
| ISO Specifications | ISO 5211 |
| Length | 11-4/25 in |
| MSS Specifications | MSS SP-67 |
| Material | Carbon Steel |
| Maximum Pressure | 300 psi |
| Maximum Temperature | 250 |
| Minimum Temperature | -30 |
| NSF Certified, UL Listed | Yes |
| NSF Specifications | NSF 61 |
| Origin | Domestic |
| Pressure Class | 300# |
| Recommended Valve Application | Water |
| Valve Disc Material | Ductile Iron |
| Valve Operator | Lever Handle |
| Valve Seat Material | EPDM |
| Valve Size | 4 in |
| Valve Stem | Blowout-proof |
| Valve Type | Butterfly Valve |
| Width | 4-63/100 in |
