BASO . C610U-1C

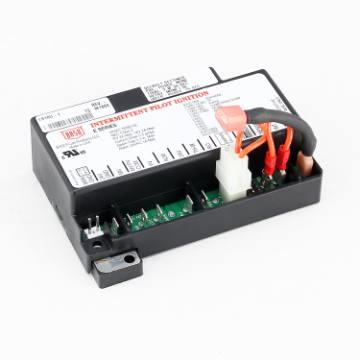

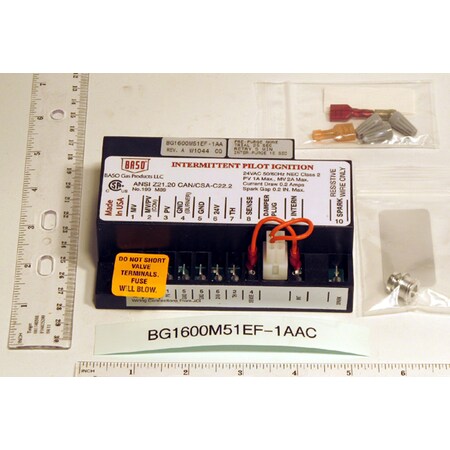

Baso C610U-1C 24V Universal Intermittent Pilot Ignition Control Specifications Input Voltage Control: 24 VAC (18-30VAC) 50/60 Hz Input Current 0.3 A nominal + valves Gas Valve Contact Rating 2A Pilot and 2A Main @ 24 VAC Operating Temperature -40 to 176°F (-40 to 80°C) Flame Detection Means Flame Rectification Flame Detection Type Local/Internal or Remote/External Minimum Flame Current 0.07 microamperes Flame Failure Response Time 1.0 second maximum Ignition Source High voltage spark, capacitive discharge Maximum Spark Gap 0.2 in. (5.1 mm) High Voltage Cable 48 in. (1219 mm) max., rated 15kV min. (Resistive recommended) Flame Sense Cable 48 in. (1219 mm) max. (Shielded recommended) Spark 30 sparks/second Humidity 0% to 95% RH (non-condensing) Gas Types Natural, LP, or Manufactured Trials Before 100% Shutoff* Preset 1, 3, Cont. Trial for Ignition Time * Preset 4, 8, 15, 30, 60, 90 seconds Pre-Purge Time * Preset 0, 15, 30 or 45 seconds Inter-Purge Time * Preset 0, 15, 300, 360 seconds Retry Delay Period * Preset 0, 5, or 60 minutes Lockout Recovery Period * Preset None, 5 or 60 minutes Direct cross of Johnson Controls G779LHA-1, Johnson Controls G779LHA-1C, Baso BG1600M51EF-1AAC Note: Terminals are in a different order IMPORTANT: Only qualified personnel should install or service BASO Gas Products. These instructions are a guide for such personnel.
