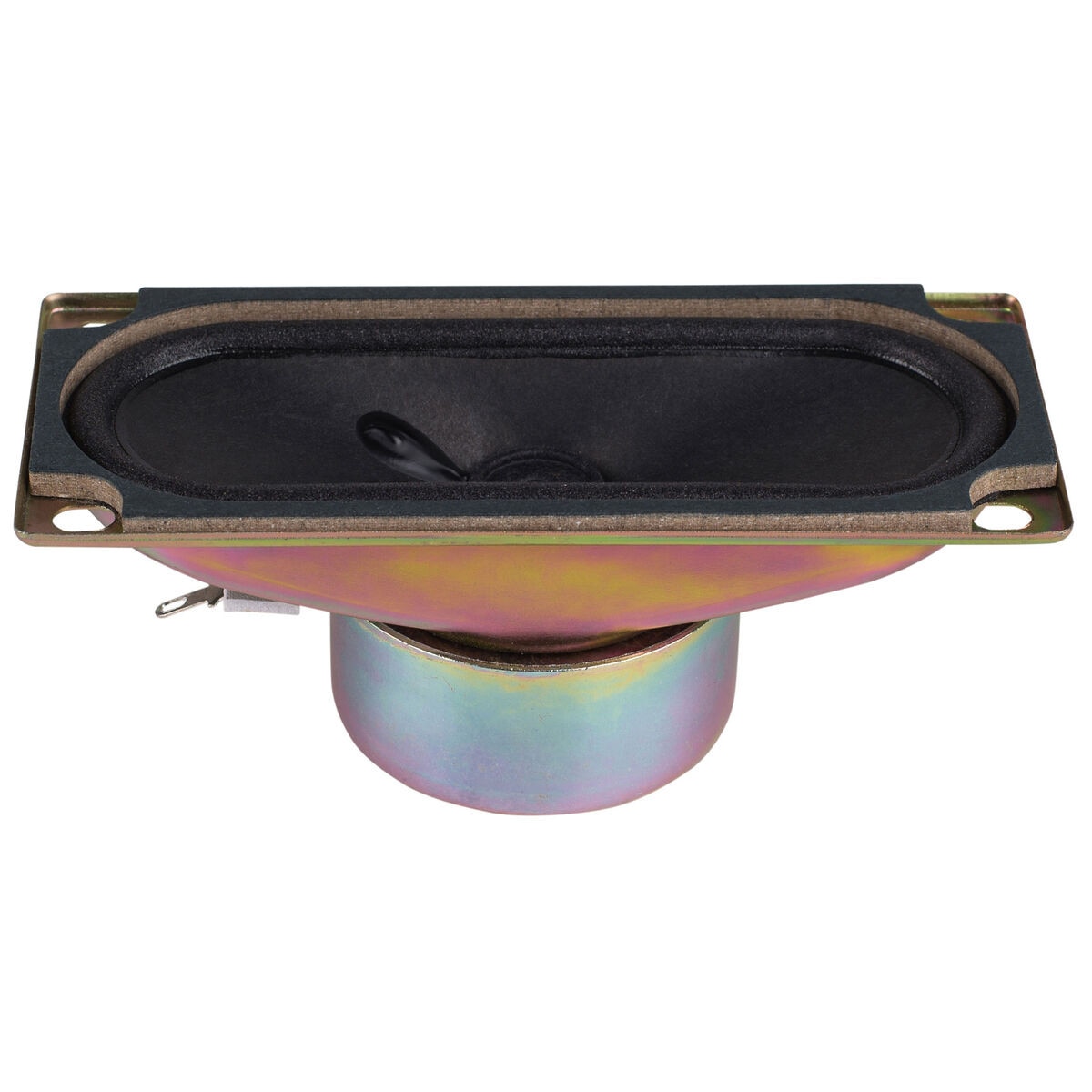

YDP512-12 2" x 4-3/8" Paper Cone Shielded Full-Range Speaker 8 Ohm

YDP512-12 2" x 4-3/8" Paper Cone Shielded Full-Range Speaker 8 Ohm. Part Number: 289-2346 by Factory Buyouts.

Factory Buyouts . YDP512-12

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameYDP512-12 2" x 4-3/8" Paper Cone Shielded Full-Range Speaker 8 Ohm
UPC848864048956
Weight0.5
WeightUnitlbs
depth, length1.75
diameter, height, width4.75
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelYDP512-12
qtyInStock-2
qtySourceFieldMap
SKU, Part Number289-2346
snippetYDP512-12 2" x 4-3/8" Paper Cone Shielded Full-Range Speaker 8 Ohm. Part Number: 289-2346 by Factory Buyouts.
tierMinQty210
tierMinQty3100
tierMinQty4500
tierPrice10.97
tierPrice20.78
tierPrice30.58
tierPrice40.39
Unit of MeasureEach
Nominal Diameter2 x 3"
Power Handling (RMS)10 Watts
Power Handling (MAX)15 Watts
Impedance8?
Frequency Response150 to 15,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter0.5"
Resonant Frequency (Fs)150Hz
DC Resistance (Re)7.1?
Voice Coil Inductance (Le)0.63mH
Mechanical Q (Qms)7.43
Electromagnetic Q (Qes)2.02
Total Q (Qts)1.56
Compliance Equivalent Volume (Vas)0.061ft?
Mechanical Compliance of Suspension (Cms)0.164mm/N
BL Product (BL)4.76T?m
Diaphragm Mass Inc Airload (Mms)6.84g
Surface Area of Cone (Sd)13.33cm?
Cone MaterialPaper
Surround MaterialFoam
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter4.75" x 2"
Baffle Cutout Diameter4.375" x 1.75"
Depth1.75"
# Mounting Holes4
Sealed Volume0.1ft?
Sealed F3135Hz
Vented Volume0.89ft?
Vented F378Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com289-23461-211 @ $0.97, 10 @ $0.78, 100 @ $0.58, 500 @ $0.39
