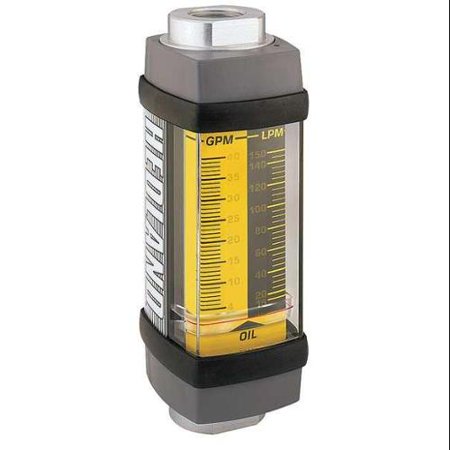

Flowmeter, Variable Area, Max. Pressure 3500 PSI, Connection Size (In.) SAE 10, Max. Temp. 240 F, Housing Material Aluminum, Chamber Material Aluminum, Seal Material Viton, Accuracy +/-2% Full Scale %, Flow Material Petroleum Fluids, Flow Range @ GPM/LPM 1 to 10 / 5 to 38, Pressure Drop - 100% Flow 9.5 PSI, Pressure Drop - 50% Flow 4 PSI, Specific Gravity 0.876 Features Application: - Connection Size (In.): SAE 10 Flow Range: 1 to 10 gpm Height (In.): 2-3/8 Includes: - Length: 6-5/8" Max. Temp. (F): 240 Type: Variable Area Housing Material: Aluminum Max. Pressure (PSI): 3500 Seal Material: Viton Standards: - Max. Viscosity: 500 SSU Accuracy (%): +/-2% Full Scale Chamber Material: Aluminum Specific Gravity: 0.876 For Pipe Size: 1/2" Flow Material: Petroleum Fluids Flow Range @ GPM/LPM: 1 to 10 / 5 to 38

Flowmeter, Variable Area, Max. Pressure 3500 PSI, Connection Size (In.) SAE 10, Max. Temp. 240 F, Housing Material Aluminum, Chamber Material Aluminum, Seal Material Viton, Accuracy +/-2% Full Scale %, Flow Material Petroleum Fluids, Flow Range @ GPM/LPM 1 to 10 / 5 to 38, Pressure Drop - 100% Flow 9.5 PSI, Pressure Drop - 50% Flow 4 PSI, Specific Gravity 0.876 Features Application: - Connection Size (In.): SAE 10 Flow Range: 1 to 10 gpm Height (In.): 2-3/8 Includes: - Length: 6-5/8" Max. Temp
