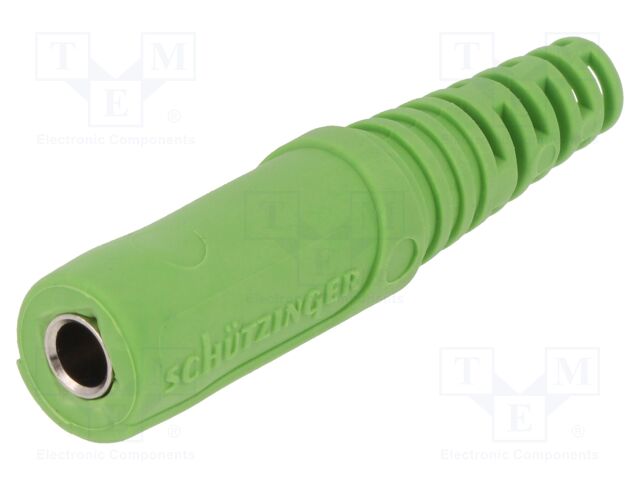

SCH?TZINGER KU 09 L NI / GN | Socket; 4mm banana; 32A; 33VAC; 70VDC; green; nickel plated; ?: 4mm
SCH?TZINGER KU 09 L NI / GN | Socket; 4mm banana; 32A; 33VAC; 70VDC; green; nickel plated; ?: 4m
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SCH?TZINGER |
|---|---|
| CategoryL1 | Workplace Equipment |
| CategoryL2 | Measuring Accessories |
| CategoryL3 | Banana Sockets |
| CategoryL4 | 4mm Banana Sockets |
| DimensionUnit | mm |
| Extra Product Name | SCH?TZINGER KU 09 L NI / GN | Socket; 4mm banana; 32A; 33VAC; 70VDC; green; nickel plated; ?: 4mm |
| atoms, moq, multiple | 1 |
| diameter, height, width | 4.0 |
| height_Attrib, width_Attrib | Max. wire diameter |
| jsonUrlData | ac366d2b8da8aabafc6941a04aeadba6. |
| jsonUrlData2 | e786b25cc5a1a65d1d0d |
| keywords | SCH?TZINGER, KU 09 L NI / GN, KU09LNI-GN |
| length | 47.5 |
| length_Attrib | Overall length |
| MPN | KU 09 L NI / GN |
| qtyInStock | 19 |
| SKU | KU09LNI-GN |
| snippet | SCH?TZINGER KU 09 L NI / GN | Socket; 4mm banana; 32A; 33VAC; 70VDC; green; nickel plated; ?: 4m |
| Connector | socket |
| Type of connector | 4mm banana |
| Current rating | 32A |
| Rated voltage | 33V AC/ |
| Colour | green |
| Contact plating | nickel plated |
| Mounting | on cable |
| Overall length | 47.5mm |
| Insulator material | elastomer thermoplastic TPE |
| Connection | soldered |
| Operating temperature | -30...110?C |
| Max wire diameter | 4mm |
| Wire cross-section | 2.5mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| KU09LNI-GN | 1 | 19 | 1 |
