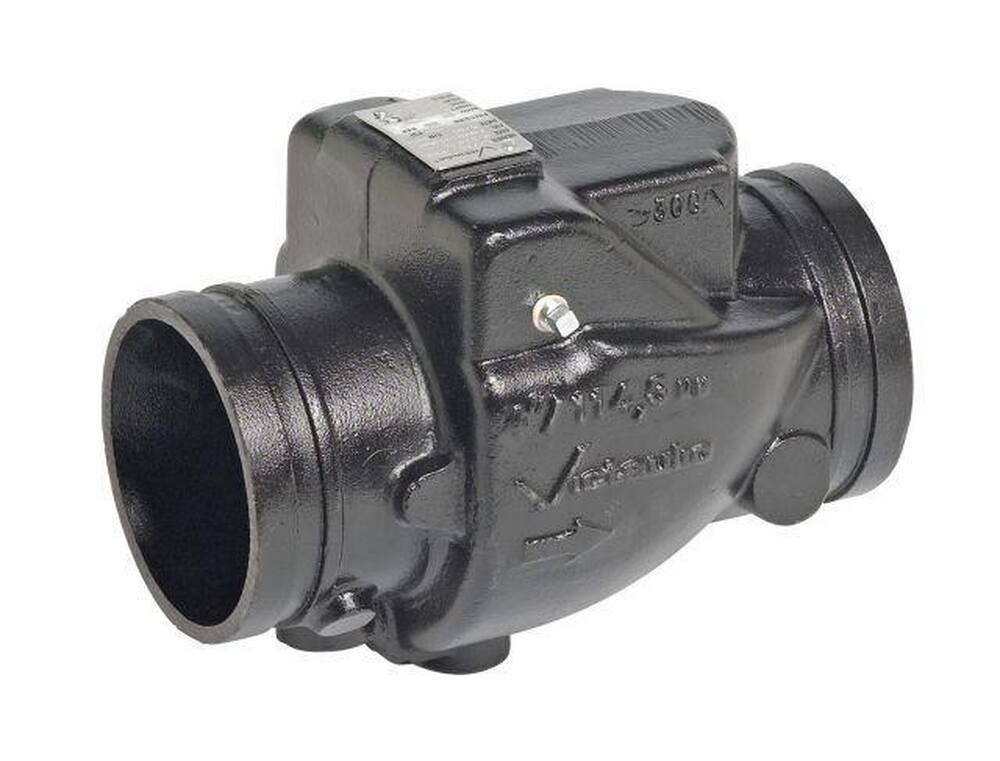

Victaulic . V020716PE3
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Victaulic |
|---|---|
| DimensionUnit | inch |
| Weight | 10.7 |
| Weight_Attrib | Weight |
| diameter, height | 2.375 |
| height_Attrib | Outside Diameter |
| length | 8.75 |
| length_Attrib | Length |
| moq, multiple | 1 |
| MPN | V020716PE3 |
| qtyInStock | Call for Availability |
| SKU | 4008033 |
| width | 6.5 |
| width_Attrib | Width |
| ASTM Specifications | ASTM A-536 Grade 65-45-12, ASTM B-733 |
| CE Approved | Yes |
| Clean Bagged, FM Approved, IAPMO Listed, NSF Certified, UL Listed | No |
| Coating | Painted |
| Collection | Series 716H |
| Color Finish | Black |
| End Connection 1, End Connection 2, End Connections, Valve Body Style | Grooved |
| High Pressure | 365 |
| Installation Type | Horizontal, Vertical |
| Length | 8-3/4 in |
| Material | Ductile Iron |
| Outside Diameter | 2-3/8 in |
| Pressure Class | 365# |
| Temperature Range | -30 to 230 Deg F (-34 to 110 Deg C) |
| Valve Disc Material | Stainless Steel |
| Valve Seat Material | EPDM, Electroless Nickel Plated |
| Valve Size | 2 in |
| Valve Type | Check Valve |
| Width | 6-1/2 in |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 4008033 | 1 | Call for Availability | 1 | ||
| 5174095 | 1 | Call for Availability | 1 |
