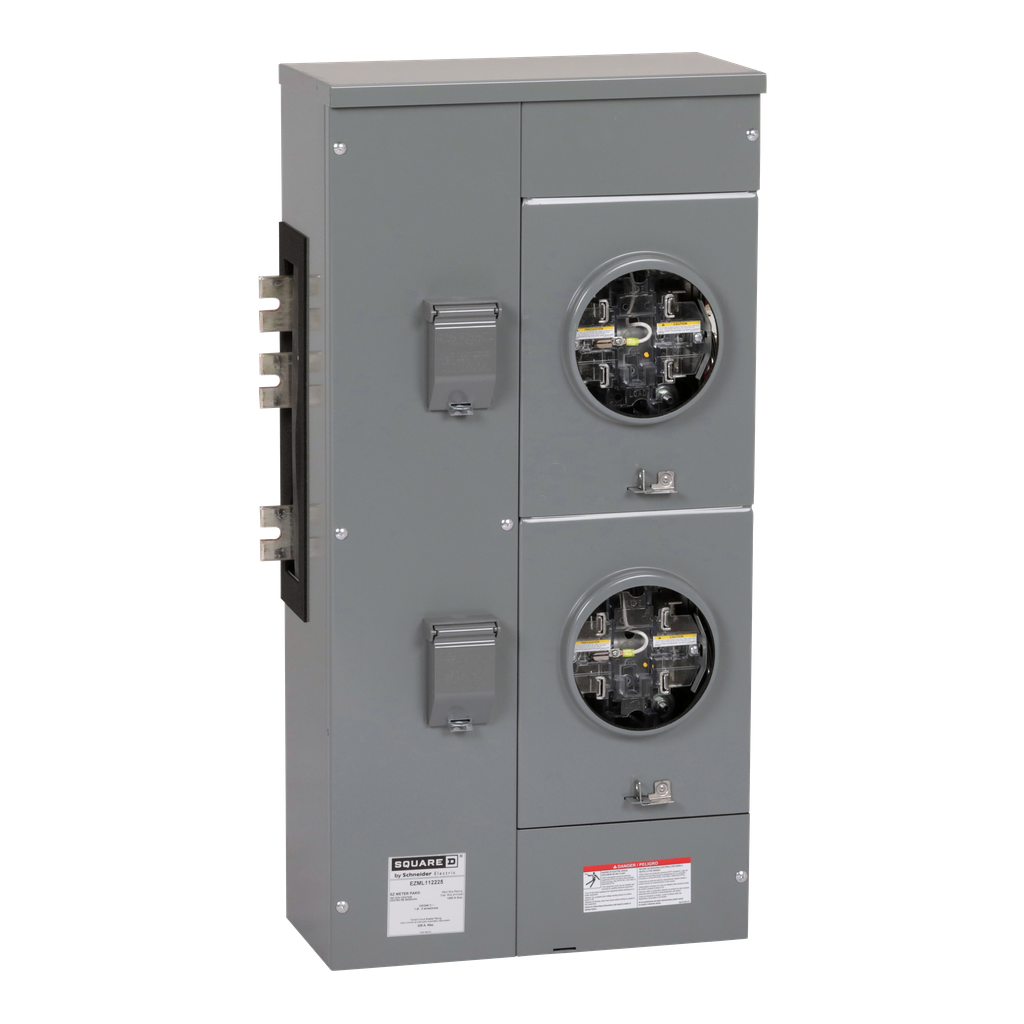

Branch unit, EZ Meter-Pak, 225A, 2 sockets, 120/240VAC, lever bypass, ringless, 1200A busbar | Mayer Electric

Mayer Electric Supply . EZML112225

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameBranch unit, EZ Meter-Pak, 225A, 2 sockets, 120/240VAC, lever bypass, ringless, 1200A busbar | Mayer Electric
UPC785901337966
Weight51.210
WeightUnitkg
Weight_AttribNet Weight
depth, length240.0
height992.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Branch-unit-EZ-Meter-Pak-225A-2-sockets-120-240-VAC-lever-bypass-ringless-1200A-Al-Cu-busbar-785901337966
jsonUrlData275d4a876-93d1-4bbd-856f-abd2006211b4
length_AttribDepth
moq, multiple, tierMinQty11
MPNEZML112225
qtyInStock0
SKUSQDEZML112225
tierPrice14466.00
width494.0
width_AttribWidth
Range Of ProductMeter-Pak
Bypass Typelever bypass
Meter Socket Typeringless
Number Of Meter Sockets2
Line Rated Current225 A
Bus Rated Current1200 A
Product Or Component TypeMeter Center Branch Unit
Number Of Jaws5 with jaw release
Warranty18 months
Product CertificationsUL Listed
Height992 mm
Phase1 phase in || 1 phase out
Nema Degree Of ProtectionNEMA 3R
Device Mountingsurface
[Ue] Rated Operational Voltage120/240 V AC
Materialaluminium/copper busbar
Enclosure Materialsteel
Wiring Configuration3-wire
Width494 mm
Depth240 mm
Net Weight51.210 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDEZML112225111 @ $4466.00
