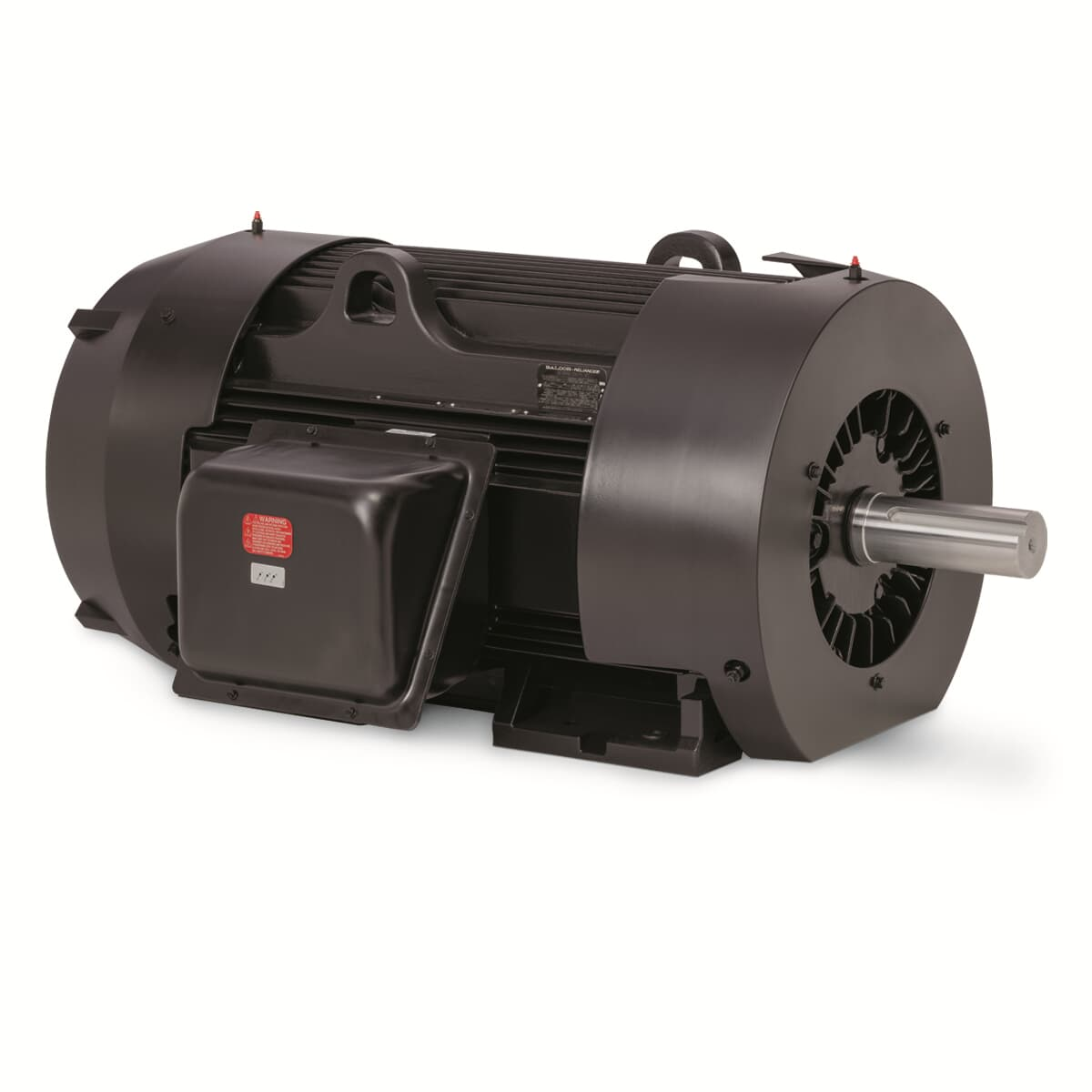

Baldor XT32506T-5 Three Phase Severe Duty XT Motor
Product Type: Three PhaseHP: 250RPM: 1190Volts: 575Amps: 226.4Phase: 3Frame: 449TEnclosure Material: IronMounting: RigidShaft Diameter: 3.375"Overall Length: 53.22"Rotation: ReversibleNumber of Speeds: 1Service Factor: 1.15Bearings: BallEfficiency: 96.2%Maximum Ambient Temperature: 40? CInsulation Class: FDuty Cycle: C
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Baldor |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Baldor XT32506T-5 Three Phase Severe Duty XT Motor |
| Voltage, Volts | 575 |
| Weight | 3125 |
| WeightUnit | lbs |
| diameter, height, width | 3.375 |
| height_Attrib, width_Attrib | Shaft Diameter |
| length | 53.22 |
| length_Attrib | Overall Length |
| moq, multiple, tierMinQty1, Number of Speeds | 1 |
| MPN, SKU | XT32506T-5 |
| qtyInStock | -2 |
| qtySource | Default field |
| tierPrice1 | 44511.31 |
| Product Type | Three Phase |
| HP | 250 |
| RPM | 1190 |
| Amps | 226.4 |
| Phase | 3 |
| Frame | 449T |
| Enclosure Material | Iron |
| Mounting | Rigid |
| Shaft Diameter | 3.375" |
| Overall Length | 53.22" |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Bearings | Ball |
| Efficiency | 96.2% |
| Maximum Ambient Temperature | 40? C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | A44-0001-2258 |
| Ship Weight | 3125 lbs. |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| XT32506T-5 | 1 | -2 | 1 | 1 @ $44511.31 |
