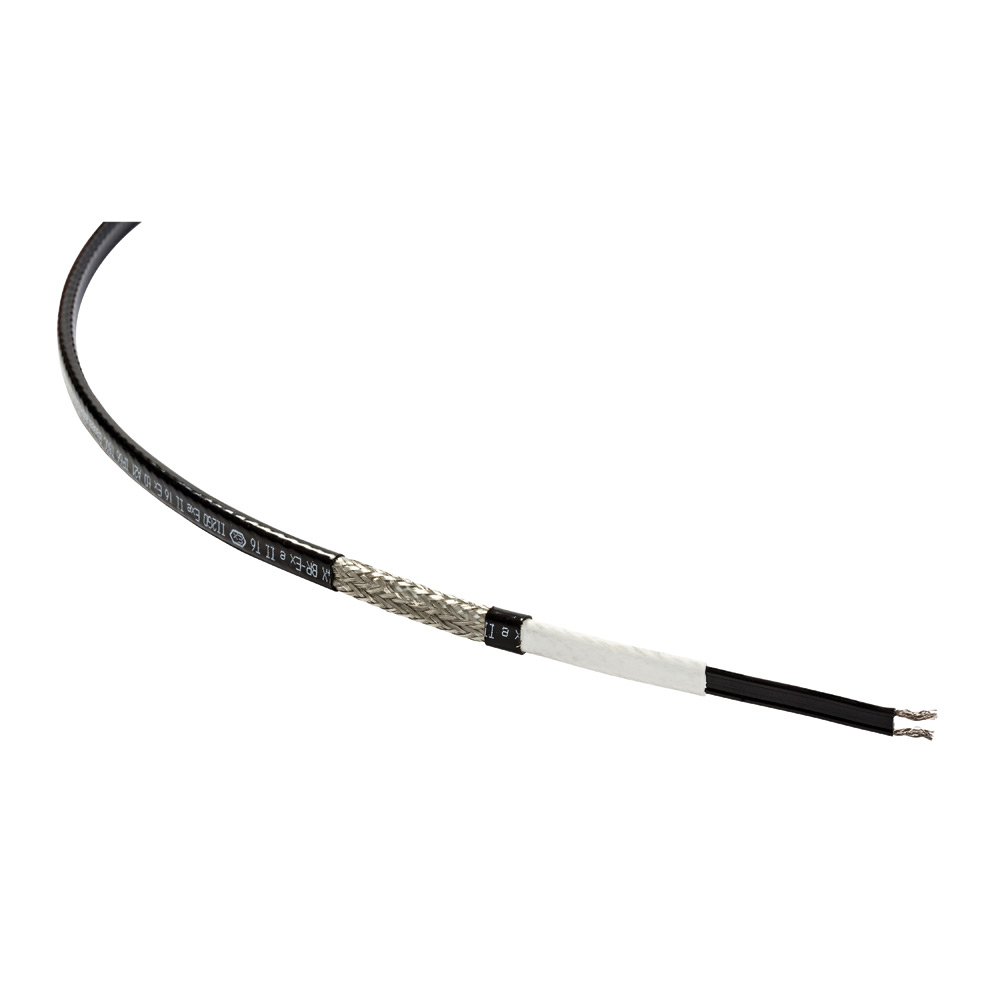

BTV Self-Regulating Heating Cable, 120 V, 5 W/ft at 50F/10C, CT-Jacket | Mayer Electric

NVENT RAYCHEM . 5BTV1CT

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerNVENT RAYCHEM
DimensionUnitmm
Extra Product NameBTV Self-Regulating Heating Cable, 120 V, 5 W/ft at 50F/10C, CT-Jacket | Mayer Electric
UPC, SKUCHM5BTV1CT
Weight0.11
WeightUnitkg
Weight_AttribWeight
height, Nominal Height (millimetre), Nominal Thickness (millimetre)5.5
height_AttribHeight
jsonUrlData/Product/NVENT-RAYCHEM-BTV-Self-Regulating-Heating-Cable-120-V-5-W-ft-at-50F-10C-CT-Jacket-CHM5BTV1CT
jsonUrlData230445481-29ad-4fcf-864c-abb200c99cce
length1000.0
length_AttribLength
moq, multiple, tierMinQty11
MPN5BTV1CT
qtyInStock0
tierPrice119.28
width, Nominal Width (millimetre)10.5
width_AttribWidth
Simplified design in hazardous areaunconditional T6 class
Fast installationcut-to-length, multiple overlaps allowed, meter markings, user-friendly connections kits
Safe and efficient in operationno overheating, uniform pipe temperatures, energy saving technology
Reliable during long life10 year product warranty available, maintenance free
Length1000.00 millimetre
Width10.50 millimetre
Height5.50 millimetre
Heating Cable TechnologySelf-Regulating
Supply Voltage (volt)100-130.00
Nominal Voltage (volt), Nominal Cable Weight (gram per metre)110
Area ClassificationNon-Hazardous
Conductor MaterialNickel-Plated Copper
Ground Path TypeBraid
ColorBlack
Outer Jacket Material, Jacket MaterialFluoropolymer
Max Circuit Length (metre)80
Max Circuit Length (foot)270
Nominal Width (inch)0.46
Nominal Height (inch), Nominal Thickness (inch)0.25
Conductor Quantity, Number of Conductors2
Nominal Cable Weight (pound per foot)0.07
Max Maintain or Continuous Exposure Temperature, Power On/Off (degree Celsius)65
Max Maintain or Continuous Exposure Temperature, Power On/Off (degree Fahrenheit), Temperature Rating150
Max Intermittent Exposure Temperature, Power On/Off (degree Celsius), Max Exposure Temperature (degree Celsius)85
Max Intermittent Exposure Temperature, Power On/Off (degree Fahrenheit), Max Exposure Temperature (degree Fahrenheit)185
Max Cumulative Hours for Intermittent Exposure (hour)1,000
Min Bending Radius @ 20?C (millimetre)13
Min Bending Radius @ 68?F (inch)0.5
Min Bending Radius @ -60?C (millimetre)35
Min Bending Radius @ -76?F (inch)1.38
Nominal Power Output @ 10?C, 120V (watt per metre)16
Nominal Power Output @ 50?F, 120V (watt per foot), Wattage5
Min Installation Temperature (degree Fahrenheit), Min Installation Temperature (degree Celsius)-40
Hazardous AreaYes
Sub BrandRAYCHEM
CoreSelf-regulating conductive core
Voltage Rating120

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comCHM5BTV1CT111 @ $19.28
