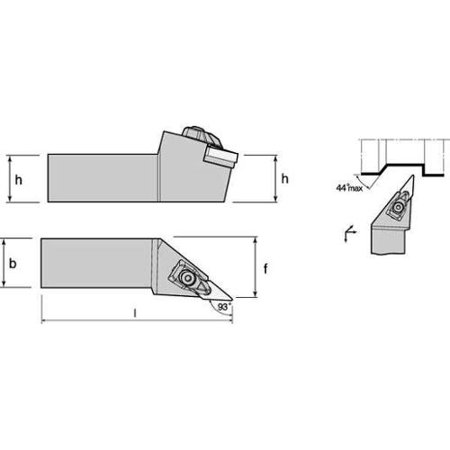

External Turning Holder, With Shim, Style TVJN, Cutting Edge Type -3, Negative Rake, Left Hand, Square Shank, Shank Width 3/4 In, Shank Height 3/4 In, Inscribed Circle 3/8 In, Overall Length 5 In, Insert Shape 35 Deg Rhombic, Insert Thickness 3/16 In, DLM3-V16 Clamp, DLS5 Clamp Screw, DSP5 Clamp Clip, Top Clamp Lock, TSV33 Shim, SO35080I Shim Screw, Torx Wrench L-W4, For Use With VNMG Inserts Features Dimension A (In.): 3/4 Dimension B (In.): 3/4 Dimension C (In.): 5 Dimension F (In.): 1 Inscribed Circle (In.): 3/8 Item: External Turning Holder Overall Length (In.): 5 Style: TVJN Type: With Shim Clamp: DLM3-V16 Clamp Screw: DLS5 Shank: Square Shim: TSV33 Shim Screw: SO35080I Torx Wrench: L-W4 Lock: Top Clamp Rake Angle (Deg.): -3 Rake: Negative Left/Right Hand: Left Hand Insert Shape: 35 Deg Rhombic Insert Thickness (In.): 3/16 Clamp Clip: DSP5 Shank Width (In.): 3/4 Shank Height (In.): 3/4 Nomenclature: TVJNL12-3C

External Turning Holder, With Shim, Style TVJN, Cutting Edge Type -3, Negative Rake, Left Hand, Square Shank, Shank Width 3/4 In, Shank Height 3/4 In, Inscribed Circle 3/8 In, Overall Length 5 In, Insert Shape 35 Deg Rhombic, Insert Thickness 3/16 In, DLM3-V16 Clamp, DLS5 Clamp Screw, DSP5 Clamp Clip, Top Clamp Lock, TSV33 Shim, SO35080I Shim Screw, Torx Wrench L-W4, For Use With VNMG Inserts Features Dimension A (In.): 3/4 Dimension B (In.): 3/4 Dimension C (In.): 5 Dimension F (In.): 1 Inscribed Circle (In.): 3/8</l
