Outback Power FWPV-8 :: Combiner Box, 8 Circuit :: PLATT ELECTRIC SUPPLY

Part Number: FWPV-8 Part: Outback Power FWPV-8 Combiner Box, 8 Circuit Combiner Box. Can be fused or can use with 150V DC breakers. 8 Circuit. NEMA 3R. 600V DC max. Volts DC: 600 Type: Fused, Combiner Box Also known as: OUTFWPV8, Outback Power, FWPV-8, Combiner Boxes - Without Disconnect, Solar Distribution, Solar Products, Solar/Clean Energy Equivalent to:

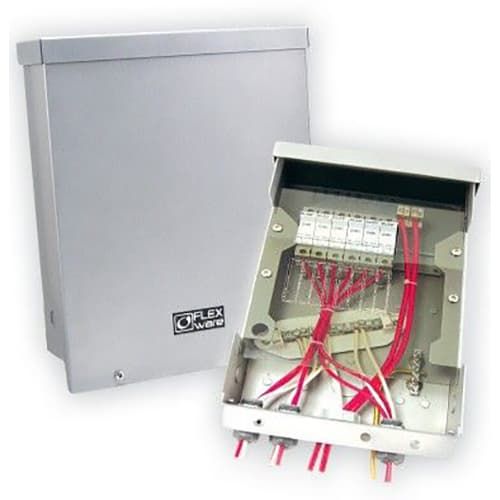

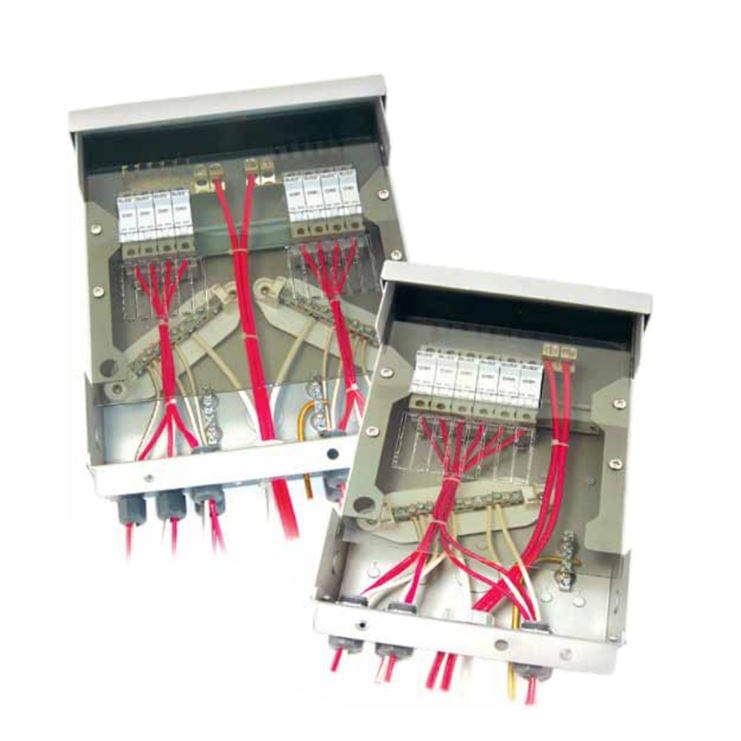

FLEXware PV Combiner Boxes The FLEXware PV Combiner Box Series takes installations to the next level and sets a new standard for PV balance-of-system hardware. Ideal for both small and large systems, the FLEXware PV8 holds up to 8 DC DIN rail breakers or 6 fuse holders (breakers, fuse holders, fuses sold separately) and accommodates an application’s overcurrent protection requirements. From 150VDC breakers to 600VDC fuse holders, the FLEXware PV Combiner series handles it all. Designed to survive in outdoor environments, the rainproof, UL-type 3R powder coated aluminum chassis can be mounted on a wall, sloped roof or pole. The unique angled negative terminal bus bar design make wiring fast and easy without the common problem of larger output conductors blocking access to the smaller input terminals. Dual output lug terminals are included for up to 2/0 AWG conductors. The tinted flame-retardant polycarbonate “dead” front panel creates a clean appearance and protection against accidental contact with the live terminals and is easily removable during installation. Use appropriate wire size in accordance with NEC.

The OutBack Power Technologies FLEXware pv combiner series sets the new standard for pv balance-of-system hardware. Ideal for both small or large systems, the FLEXware pv8 accommodates the overcurrent protection requirements of your application. From 150vdc breakers for low voltage pv systems, to 600vdc fuse holders for high voltage pv systems, the FLEXware pv Combiner series handles it all. Designed to survive in outdoor environments, the rainproof, ul type 3r powder coated aluminum chassis can be mounted on a wall, sloped roof or pole. The unique angled negative terminal bus bar design makes wiring fast and easy without the larger output conductors blocking access to the smaller input terminals. Dual output lug terminals are included for up to 2/0 awg conductors. The tinted flame-retardant polycarbonate deadfront panel creates a clean appearance while preventing accidental contact with the live terminals and is easily removable during installation. The FLEXware fwpv-8 Combiner makes
