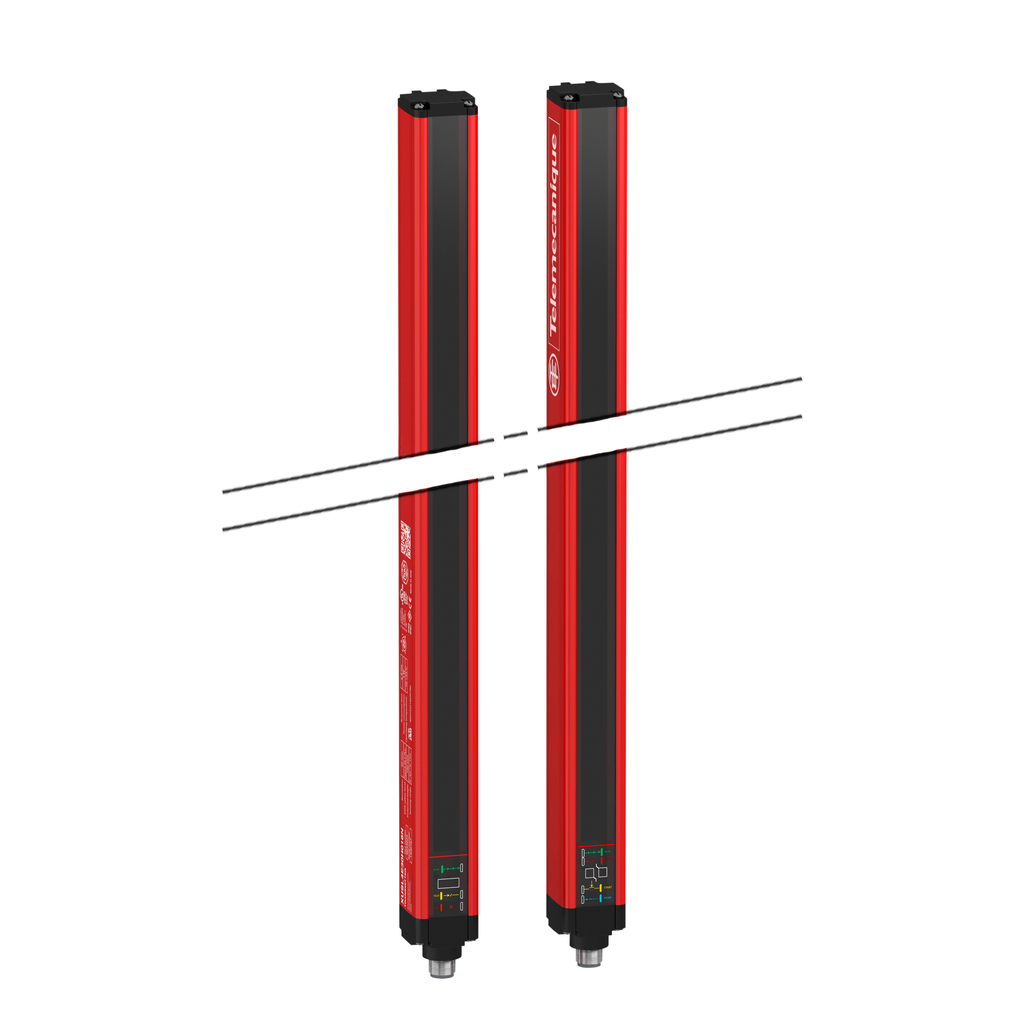

Safety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Long sensing range, Hp = 910 mm, R=30 mm | Mayer Electric

SQUARE D . SQDXUSL4E30H091L

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameSafety light curtain type 4, Telemecanique Safety light curtains XUSL, XUSL For hand protection, Long sensing range, Hp = 910 mm, R=30 mm | Mayer Electric
UPC3389119618465
Weight1.7
WeightUnitkg
Weight_AttribNet Weight
diameter, length, width30.0
height910.0
height_AttribHeight Protected
jsonUrlData/Product/SQUARE-D-Safety-light-curtain-type-4-Telemecanique-Safety-light-curtains-XUSL-XUSL-For-hand-protection-Long-sensing-range-Hp-910-mm-R30-mm-3389119618465
jsonUrlData213a9f5ea-12c0-4226-b621-aeea0058b386
length_Attrib, width_AttribMinimum Object Diameter For Detection
moq, multiple, tierMinQty11
MPN, SKUSQDXUSL4E30H091L
qtyInStock0
tierPrice12017.9
Minimum Object Diameter For Detection30 mm
Range Of ProductTelemecanique Safety light curtains XUSL
Height Protected910 mm
Control Typeselected by wiring
Product Specific Applicationfor hand protection
Number Of Beams46
Product Or Component Typesafety light curtain type 4
[Sn] Nominal Sensing Distance3-20 m by cabling || 0-10 m by cabling
Output Type2 safety outputs OSSD solid-state PNP arc suppression)
Device Short NameXUSL4E
Type Of Startautomatic || manual
Warranty18 months
Electrical Connection1 male connector M12 5 pins transmitter || 1 male connector M12 8 pins receiver
Function Availabletest || muting through external safety module XPSLCMUT1160 || LED display of operating modes and faults
Current Consumption42 mA no-load transmitter || 83 mA no-load receiver || 42 mA transmitter || 900 mA with maximum load receiver
Housing Colourred RAL 3000
Offer Typelong distance
Fixing Modeby fixing brackets
Materialaluminium casing || polycarbonate front panel || polypropylene end caps
[Ie] Rated Operational Current2 A
Kit Compositionadjustable mounting bracket(s) || 1 receiver(s) || 1 transmitter(s) || 1 user guide with certificate of conformity on CD-ROM
EmissionIR LED 950 nm
Output Voltage24 V
Detection Systemtransmitter-receiver system
Response Time7.5 ms
MarkingCE
Output Current Limits0.4 A safety outputs OSSD
Supplypower supply IEC 61496-1 || power supply IEC 60204-1
Output Circuit TypeDC
[Eaa] Effective Aperture Angle2.5 ? at 3 m
Net Weight1.7 kg
Local Signalling1 multi-colour LED transmitter || 2 dual colour LEDs receiver
[Us] Rated Supply Voltage24 V DC +/- 20 %
Circularity ProfileENVEOLI1406015EN
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1406015EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationFree of Substances of Very High Concern above the threshold
Product CertificationsT?V || cULus || CE
Ambient Air Temperature For Operation-20-55 ?C || 14-131 ?F
Directives89/336/EEC - electromagnetic compatibility || 89/655/EEC - work equipment || 98/37/EEC - machinery
Ambient Air Temperature For Storage-13-158 ?F || -35-70 ?C
Service Life20 year(s)
Relative Humidity0-95 % without condensation
Safety Reliability DataPFHd = 1.30E-8 1/h IEC 61508
Shock Resistance10 gn 16 ms IEC 61496-1
Environmental Characteristicresistance to light disturbance EN/IEC 61496-2
Vibration Resistance0.35 +/- 0.05 mm 10-55 Hz)IEC 61496-1
Ip Degree Of ProtectionIP65 || IP67
Safety Leveltype 4 IEC 61496-1 || SIL 3 IEC 61508 || SILCL 3 IEC 62061 || category 4 EN/ISO 13849-1 || PL = e EN/ISO 13849-1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXUSL4E30H091L111 @ $2017.90
