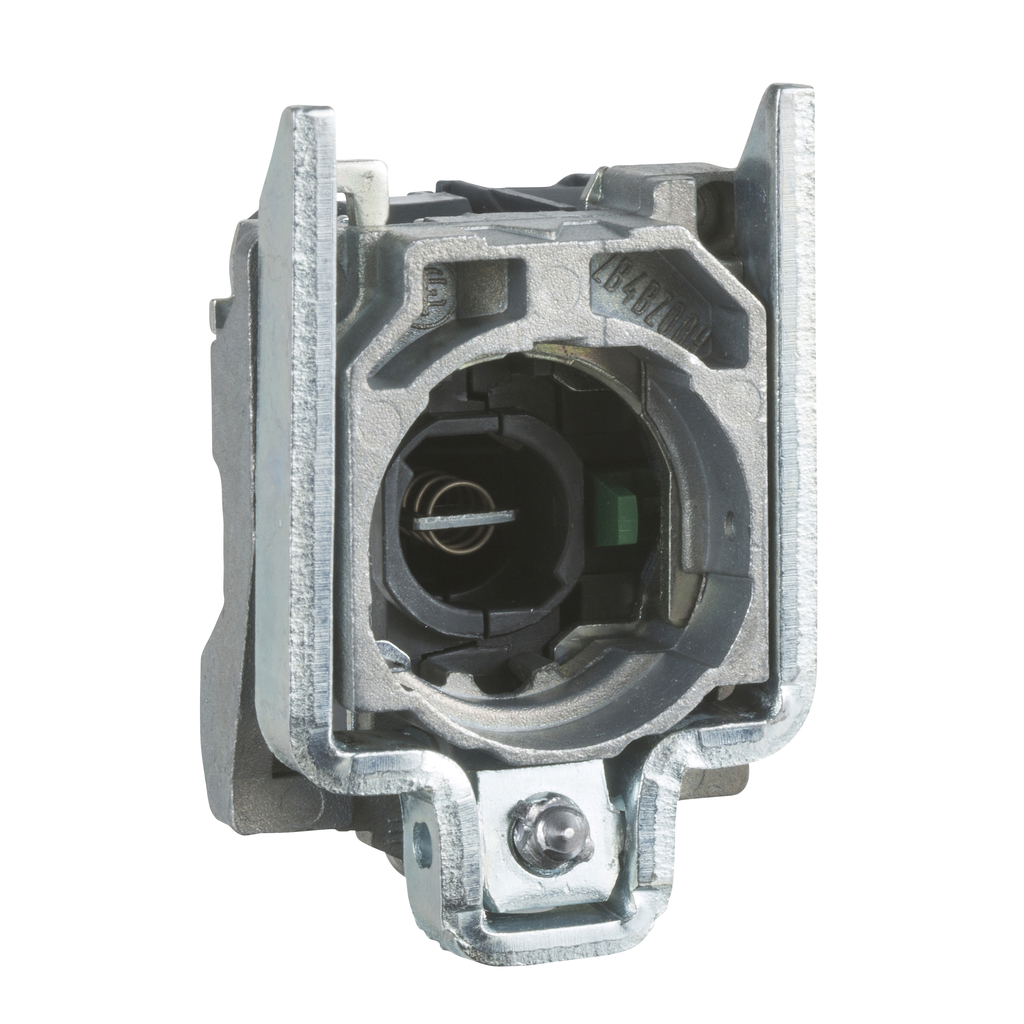

Harmony XB4, Light block with body/fixing collar, metal, for BA9s bulb,

SQUARE D . SQDZB4BW065

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameHarmony XB4, Light block with body/fixing collar, metal, for BA9s bulb,
UPC3389110891157
Weight0.073
WeightUnitkg
Weight_AttribNet Weight
height47.0
height_AttribCad Overall Height
jsonUrlData/Product/SQUARE-D-Harmony-XB4-Light-block-with-body-fixing-collar-metal-for-BA9s-bulb-250-V-1-NO-1-NC-3389110891157
jsonUrlData2946d2a3d-0064-4999-b682-aeea0058fa38
length37.0
length_AttribCad Overall Depth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDZB4BW065
qtyInStock0
tierPrice169.21
width30.0
width_AttribCad Overall Width
Range Of ProductHarmony XB4
Light Sourcebulb not included
Product Or Component Typecomplete body/contact assembly and light block
Fixing Collar Materialzamak
Head Type, Contacts Usagestandard
Contacts Type And Composition1 NO + 1 NC
Contact Operationslow-break
Device Short NameZB4
Bulb BaseBA 9s
Warranty18 months
Terminals Description Iso N?1(11-12)NC
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force2 N NC changing electrical state || 2.3 N NO changing electrical state
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwith EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Net Weight0.073 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
Cad Overall Height47 mm
Device Presentationbasic sub-assemblies
[Ui] Rated Insulation Voltage600 V 3)EN 60947-1
Signalling Typesteady
Operating Torque0.05 N.m NO changing electrical state
Mechanical Durability5000000 cycles
Tightening Torque0.8-1.2 N.m EN 60947-1
Cad Overall Width30 mm
Cad Overall Depth37 mm
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL Listed || CSA || DNV || GL || BV || LROS (Lloyds register of shipping)
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
StandardsEN/IEC 60947-5-5 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Electrical Shock Protection Classclass I IEC 60536
Protective TreatmentTH

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDZB4BW065111 @ $69.21
