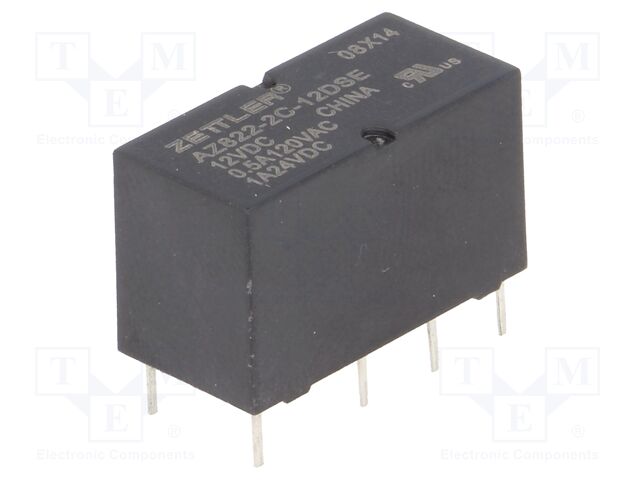

ZETTLER AZ822-2C-12DSE | Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.5A/120VAC; PCB
ZETTLER AZ822-2C-12DSE | Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.5A/120VAC; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ822-2C-12DSE | Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.5A/120VAC; PCB |
| atoms, moq, multiple, tierMinQty1, tierPrice2 | 1 |
| jsonUrlData | a2e4769b7d9ae9ce2662e7cd88add631. |
| jsonUrlData2 | 65f34883561e9ee8fa82 |
| keywords | ZETTLER, AZ822-2C-12DSE |
| MPN, SKU | AZ822-2C-12DSE |
| qtyInStock | 3407 |
| snippet | ZETTLER AZ822-2C-12DSE | Relay: electromagnetic; DPDT; Ucoil: 12VDC; 2A; 0.5A/120VAC; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 20 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 1.09 |
| tierPrice3 | 0.9 |
| tierPrice4 | 0.75 |
| tierPrice5 | 0.67 |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 12V DC |
| Contact current max | 2A |
| AC contacts rating @R | 0.5A / 120V AC |
| DC contacts rating @R | 1A / 24V DC |
| Switched voltage | max. 220V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 960? |
| Coil voltage min | 8.4V DC |
| Coil voltage max | 30V DC |
| Operate time | 5ms |
| Body dimensions | 20x9.8x12mm |
| Release time | 2ms |
| Coil power consumption | 74mW |
| IP rating | IP64 |
| Operating temperature | -55...90?C |
| Relay series | AZ822 |
| Contact resistance | 50m? |
| Terminal pitch | 5mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ822-2C-12DSE | 1 | 3407 | 1 | 1 @ $1.09, 5 @ $1.00, 20 @ $0.90, 100 @ $0.75, 500 @ $0.67 |
