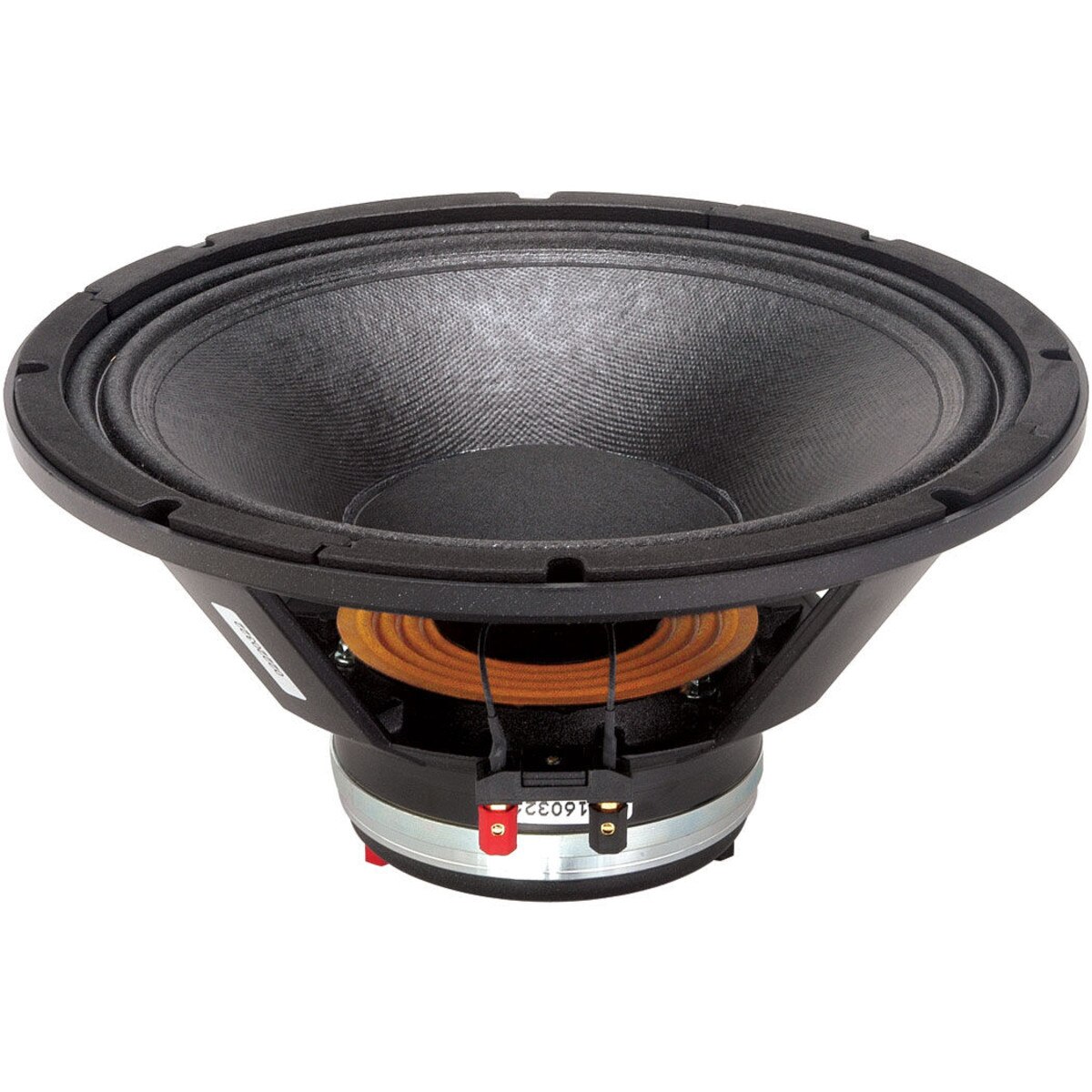

B&C 12NCX 12" Neodymium Coaxial Speaker

B&C 12NCX 12" Neodymium Coaxial Speaker. Part Number: 294-686 by B&C Speakers.

B&C Speakers . 12NCX

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12NCX 12" Neodymium Coaxial Speaker
UPC844632002311
Weight12.1
WeightUnitlbs
depth, length6.6
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12NCX
qtyInStock0
SKU, Part Number294-686
snippetB&C 12NCX 12" Neodymium Coaxial Speaker. Part Number: 294-686 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.6
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance8?
Frequency Response60 to 18,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)59Hz
DC Resistance (Re)5.8?
Voice Coil Inductance (Le)1.2mH
Mechanical Q (Qms)4.2
Electromagnetic Q (Qes)0.58
Total Q (Qts)0.51
Compliance Equivalent Volume (Vas)2.3ft?
BL Product (BL)12.8T?m
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)522cm?
Cone MaterialPaper
Voice Coil Wire MaterialAluminum
Magnet MaterialNeodymium
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.2"
Depth6.6"
# Mounting Holes8
Sealed Volume1.18ft?
Sealed F399Hz
Vented Volume3.7ft?
Vented F350Hz
