Enerpac

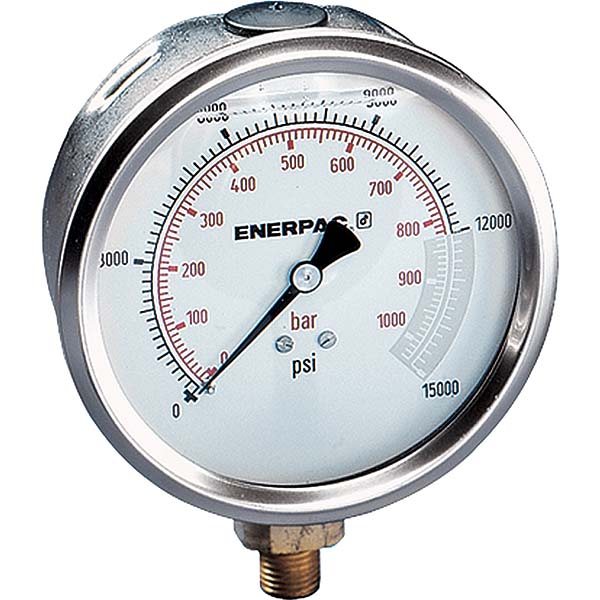

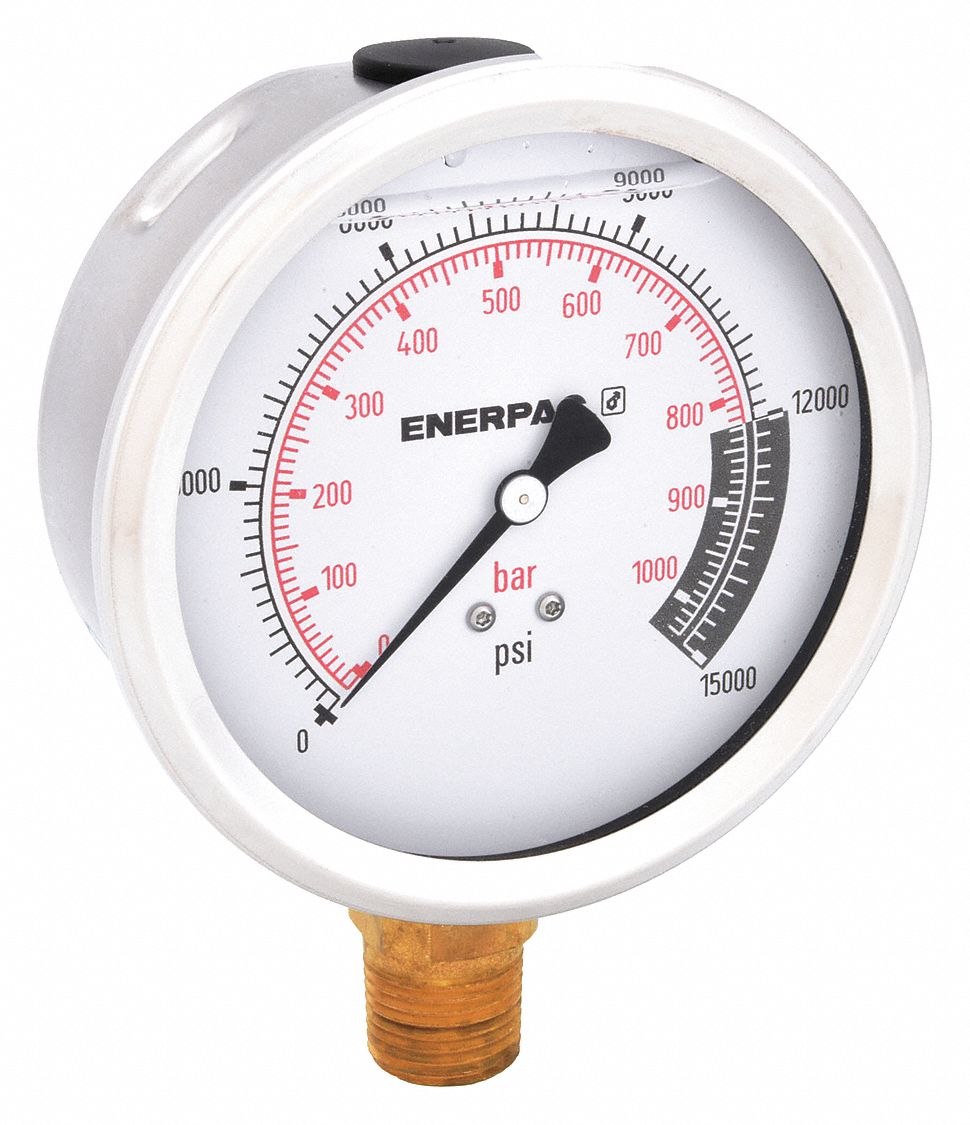

The G4089L is produced by Enerpac and is described as a Enerpac G4089L 223428 4" Gauge 0-15000 PSI

Enerpac . G4089L

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameEnerpac
DimensionUnitinch
GraingerSku18Y528
UPC662005223428
UnitOfMeasureEA
Weight2.65
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
height2.25
jsonUrlData924526ffbdad25e5923b
length5.5
moq, multiple, tierMinQty11
MPNG4089L
qtyInStock5
qtyInStockOverride-2
SKUG5201515
tierPrice1395.56
urlhttps://www.zoro.com/enerpac-pressure-gauge-0-to-15-000-psi-14-in-nptf-stainless-steel-silver-g4089l/i/G5201515/
width4.5
Promotion RestrictionNot eligible for promotion
Connection LocationLower
Item, Pressure Gauge TypeHydraulic Cylinder Pressure Gauge
Connection Size1/4 in NPTF
Gauge ApplicationGeneral Purpose
IncludesSafety Blowout Disc and Pressure Equalizing Membrane
Range, Primary Pressure Range0 to 15,000 psi
Accuracy+/- 1%
Material, Basic Gauge Case Material, Gauge Case Material, Gauge Case ColorStainless Steel
Color, Case ColorSilver
Length4.8"
Diameter4"
Dial Size (In )4
Gauge Primary Range Values, Primary Range0 to 15,000
Gauge Primary Range Units, Primary Units, Primary Scale Unitspsi
Gauge Connection Type, Process Connection TypeNPTF
Gauge Connection Size, Process Connection Size1/4 in
Liquid Filled, Requires Adapter, Liquid-Filled Case, Blowout Safety BackYes
Gauge Nominal Dial Size, Nominal Dial Size, Case Diameter4 in
Gauge Panel Mountable, Calibration Certificate Included, Includes Mounting Hardware, Adjustable Pointer, Panel-Mountable, Freeze Resistant Movement, Removable Bezel, Field Fillable, Includes Vent PlugNo
Gauge Connection Location, Process Connection LocationBottom
SeriesG
Pressure and Vacuum Gauge TypePressure Gauge
Max Pressure (PSI)15000
Basic Gauge Lens Material, Gauge Lens Material, Lens MaterialGlass
Gauge Accuracy+/-1.00%
Gauge Filled With, Gauge Case LiquidGlycerin
Compatible Brand and SeriesENERPAC V-91
IP/NEMA Rating, Hazardous Location RatingNot Rated
Secondary Units, Secondary Scale Unitsbar
Vibration ResistanceLiquid-Filled
Process Connection GenderMale
Compatible Cylinder/PressAll Cylinders and Presses
Scale TypeDual
Primary Scale Minor Graduations200
Secondary Scale Minor Graduations20
Dial ColorWhite
Case Depth1.15 in
Compatible Manufacturer Model NumberV-91
Secondary Pressure Range0 to 1,000 psi
Hydraulic Pressure Gauge TypeDial Pressure Gauge for Hydraulic Systems
Case ConstructionCorrosion Resistant
Compatible Gauge AdapterEnerpac GA-3
Accuracy ScaleFull Scale
Compatible Grainger Part Number25TV84
Secondary Range0 to 1,000 bar
Pressure Range TypePressure
Gauge Mounting TypeStem-Mount
(hidden) association builderENERPAC G4089L
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG52015151511 @ $395.56
RadwellG4089L11
Grainger18Y5281-211 @ $456.81
MRO Supply576500911
Raptor SuppliesAA8KTH111 @ $656.19
Applied Industrial10018871611
sustainablesupply.comC17583021-211 @ $383.35
Turner Supply2835234281-211 @ $380.00
proindustrialequipment.comG4089L1111 @ $309.00
stellarindustrial.comENERP G4089L11
grainger.caENPG4089L11
National Supply Network103055061-211 @ $624.88
imsbolt.comG4089L1-211 @ $337.89
factorysupplyoutlet.com277-G4089L1-211 @ $448.39
