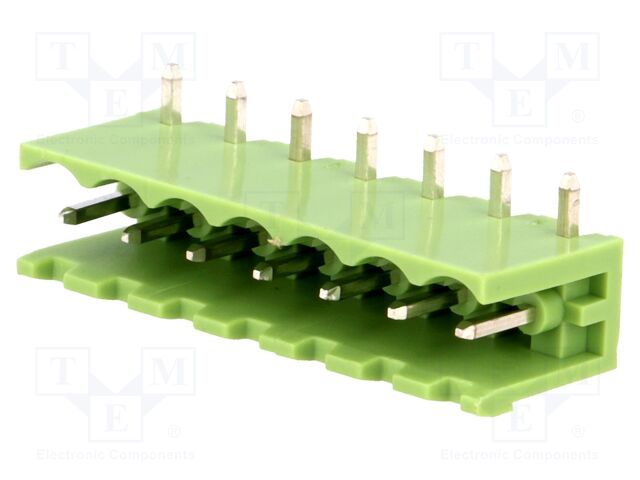

XINYA XY2500R-C(5.08)-7PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 7; socket
XINYA XY2500R-C(5.08)-7PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 7; socke
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | XINYA |
|---|---|
| CategoryL1 | Connectors |
| CategoryL2 | Power connectors |
| CategoryL3 | Terminal blocks |
| CategoryL4 | Pluggable terminal blocks |
| DimensionUnit | mm |
| Extra Product Name | XINYA XY2500R-C(5.08)-7PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 7; socket |
| atoms | 1 |
| height | 8.4 |
| height_Attrib | Height |
| jsonUrlData | 37a675e66e3977feae6524bd2e14bffc. |
| jsonUrlData2 | a813e38cb9458f200c22 |
| moq, multiple, tierMinQty1 | 500 |
| MPN | XY2500R-C(5.08)-7PIN |
| qtyInStock | 0 |
| SKU | TBG-5-KB-7P-GN |
| snippet | XINYA XY2500R-C(5.08)-7PIN | Pluggable terminal block; Contacts ph: 5.08mm; ways: 7; socke |
| tierPrice1 | 0.149 |
| Type of connector | pluggable terminal block |
| Contacts pitch | 5.08mm |
| Number of ways, Number of pins | 7 |
| Spatial orientation | angled 90? |
| Connector | socket |
| Kind of connector | male |
| Mechanical mounting | on PCBs |
| Electrical mounting | THT |
| Colour | green |
| Rated voltage | 300V |
| Locking system | friction lock |
| Type of pin configuration | 1x7 |
| Current rating | 12A |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Conform to the norm | UL |
| Contact plating | tinned |
| Operating temperature | -40...105?C |
| Contact material | brass |
| Connector variant | without side walls |
| Height | 8.4mm |
| Connectors features | assembling possibility |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TBG-5-KB-7P-GN | 500 | 500 | 500 @ $0.15 |
