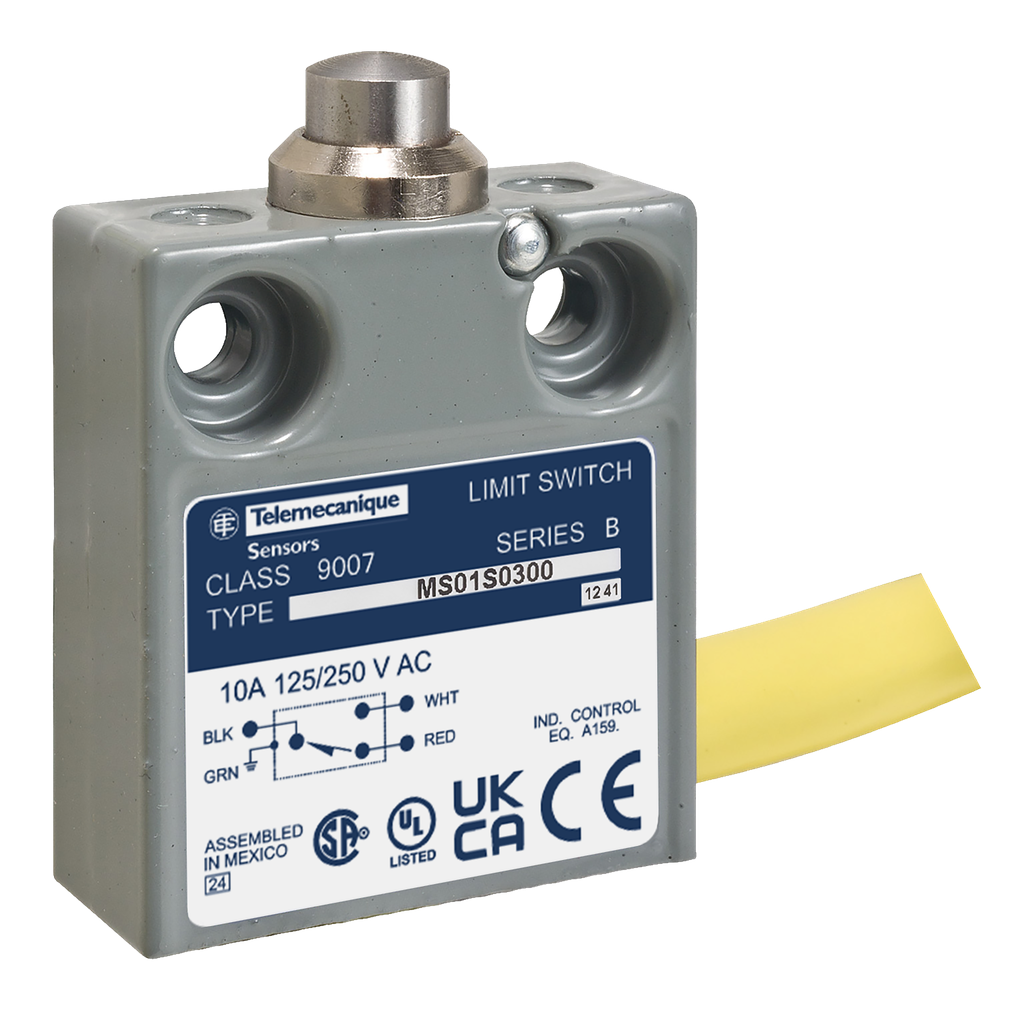

Limit switch, 9007MS, miniature, top plunger, 10A at 240VAC, 1NO/1NC, 6 feet of cable, side entrance, NEMA 4, 6P, 12, 13 | Mayer Electric

Shop SQUARE D at Mayer. LIMIT SWITCH 240VAC 10AMP MS +OPTIONS

Mayer Electric Supply . 9007MS01S0206

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameLimit switch, 9007MS, miniature, top plunger, 10A at 240VAC, 1NO/1NC, 6 feet of cable, side entrance, NEMA 4, 6P, 12, 13 | Mayer Electric
UPCT785901398943
Weight1.2
WeightUnitlbs
Weight_AttribNet Weight
depth, length0.62
height3.5
height_AttribHeight
jsonUrlData/Product/SQUARE-D-LIMIT-SWITCH-240VAC-10AMP-MS-OPTIONS-785901398943
jsonUrlData28f5b8706-62f1-4f2e-bb48-abd2006182f7
keywordsSQUARE D, Mayer SQUARE D, 785901398943, 9007MS01S0206
length_AttribDepth
moq, multiple, tierMinQty1, Number Of Poles, Sale Per Indivisible Quantity1
MPN9007MS01S0206
qtyInStock0
SKUSQD9007MS01S0206
snippetShop SQUARE D at Mayer. LIMIT SWITCH 240VAC 10AMP MS +OPTIONS
tierPrice1141.13
width1.56
width_AttribWidth
Range Of Product9007
Product Or Component Typelimit switch
Materialmetal
Head Typeplunger head
Series Nameminiature potted
Body Typefixed
Body Materialcast zinc
Sensor Designminiature
Device Short Name9007MS/ML
Warranty18 months
Height1.75-1.75 in
Movement Of Operating Headlinear
Terminals Description Iso N?1(red)NC || (black)com || (white)NO || (green-yellow)gnd
Fixing Modeby the body
Contacts Materialsilver contacts
Maximum Force For Tripping80 ozf
Type Of Operatorspring return plunger stainless steel -
[Ithe] Conventional Enclosed Thermal Current10 A
Contact FormForm C
Electrical Connectionpre-wired cable side
Marking, Product CertificationsUL || CE || CSA
Net Weight1.2 lb(US)
Switch Actuationon end
Type Of Approachvertical approach, 1 direction
Contacts Type And CompositionNC-NO
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 300 V 3)CSA C22.2 No 14
Positive Openingwithout
Contact Operationsnap action
[Ie] Rated Operational Current6 A 120 V AC, A300 NEMA rating designation || 3 A 240 V AC, A300 NEMA rating designation || 5 A 28 V DC
Mechanical Durability10000000 cycles
Type Of CableSJTO AWG 18), 6 ft, Yellow
Wire Insulation MaterialPVC
Switch FunctionSPDT
Width1.56 in
Depth0.62 in
Electrical Durability100000 cycles
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP111160EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-220 ?F
StandardsLR 25490 Class 32 11 03 || E78403
Shock Resistance35 gn 9 ms IEC 60068-2-27
Vibration Resistance10 gn 75-1200 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250
Protective Treatmentepoxy powder coat

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD9007MS01S0206111 @ $141.13
