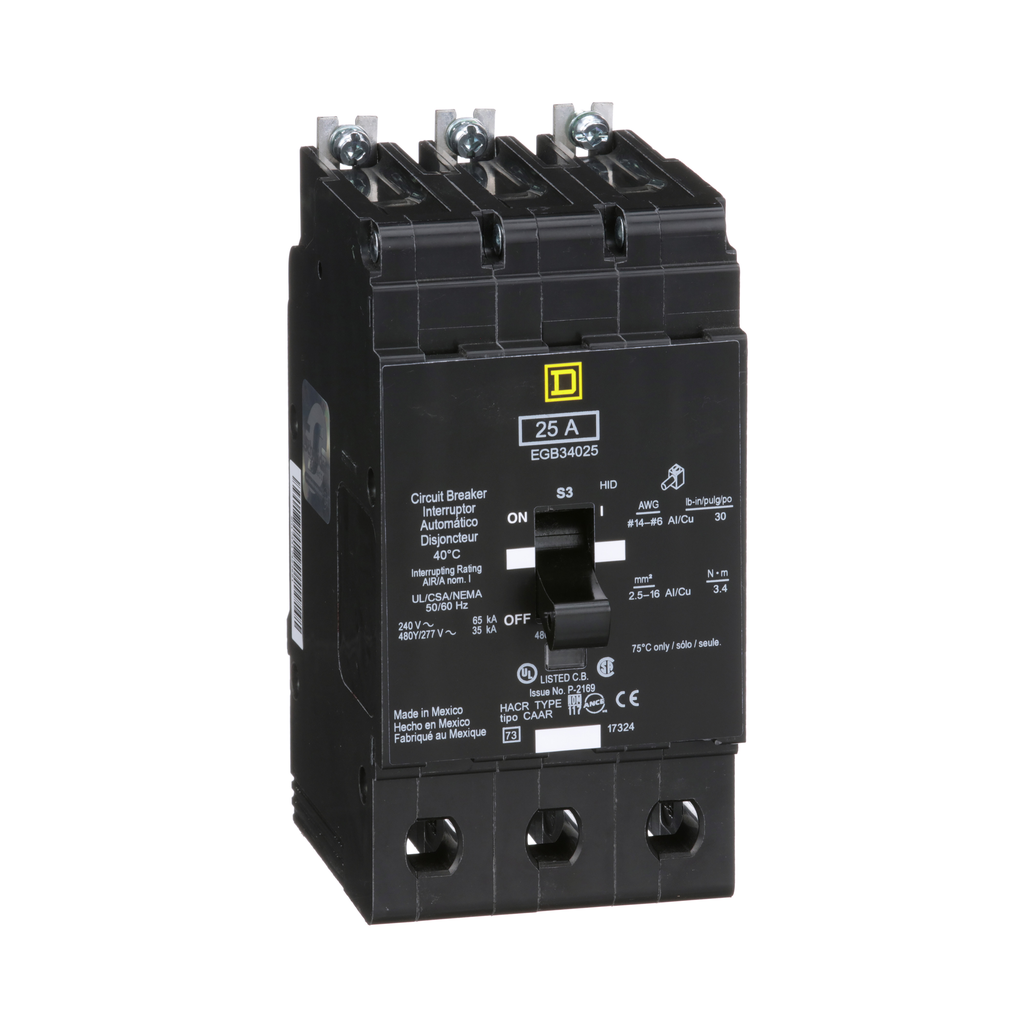

Mini circuit breaker, E-Frame, 25A, 3 pole, 480Y/277 VAC, 65 kA max, bolt on | Mayer Electric

Mayer Electric Supply . EGB34025

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameMini circuit breaker, E-Frame, 25A, 3 pole, 480Y/277 VAC, 65 kA max, bolt on | Mayer Electric
UPC785901311140
Weight4
WeightUnitlbs
Weight_AttribNet Weight
depth, length4.05
height5.66
height_AttribHeight
jsonUrlData/Product/SQUARE-D-E-Frame-Brkr-25A-3P-480Y-277V-35-65kA-Bolt-on-Mnt-785901311140
jsonUrlData251d93413-2da9-4bf8-a2cd-abd200620626
length_AttribDepth
moq, multiple, tierMinQty11
MPNEGB34025
qtyInStock0
SKUSQDEGB34025
tierPrice11024.28
width2.94
width_AttribWidth
Module TypeE-Frame
Range Of Product125 A Frame EDB-EGB-EJB
Trip Unit Rating875-875 A
Product Or Component Typeminiature circuit-breaker
Device Short NameEGB
Warranty18 months
Circuit Breaker ApplicationHACR rated || HID rated
Height5.66 in
Mounting Modebolt-on
Holding Current270 A
Tightening Torque3.4-3.4 N.m 2.5-16 mm? (AWG 14...AWG 6)
Breaking Capacity CodeG
Product DestinationNF panelboard
Electrical Connectionlugs aluminium
Number Of Spaces Required, Number Of Spaces, Number Of Poles3
Line Rated Current25 A
Protection Typeoverload || short-circuit
Local Signallingtrip indicator
Awg GaugeAWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
Width2.94 in
Depth4.05 in
Breaking Capacity35 kA 277 V AC || 65 kA 240 V AC || 35 kA 480Y/277 V AC || 65 kA 120 V AC || 65 kA 120/240 V AC
Net Weight4 lb(US)
Trip Unit Technologythermal-magnetic
[Ue] Rated Operational Voltage480Y/277 V AC
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
Product CertificationscULus
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDEGB34025111 @ $1024.28
