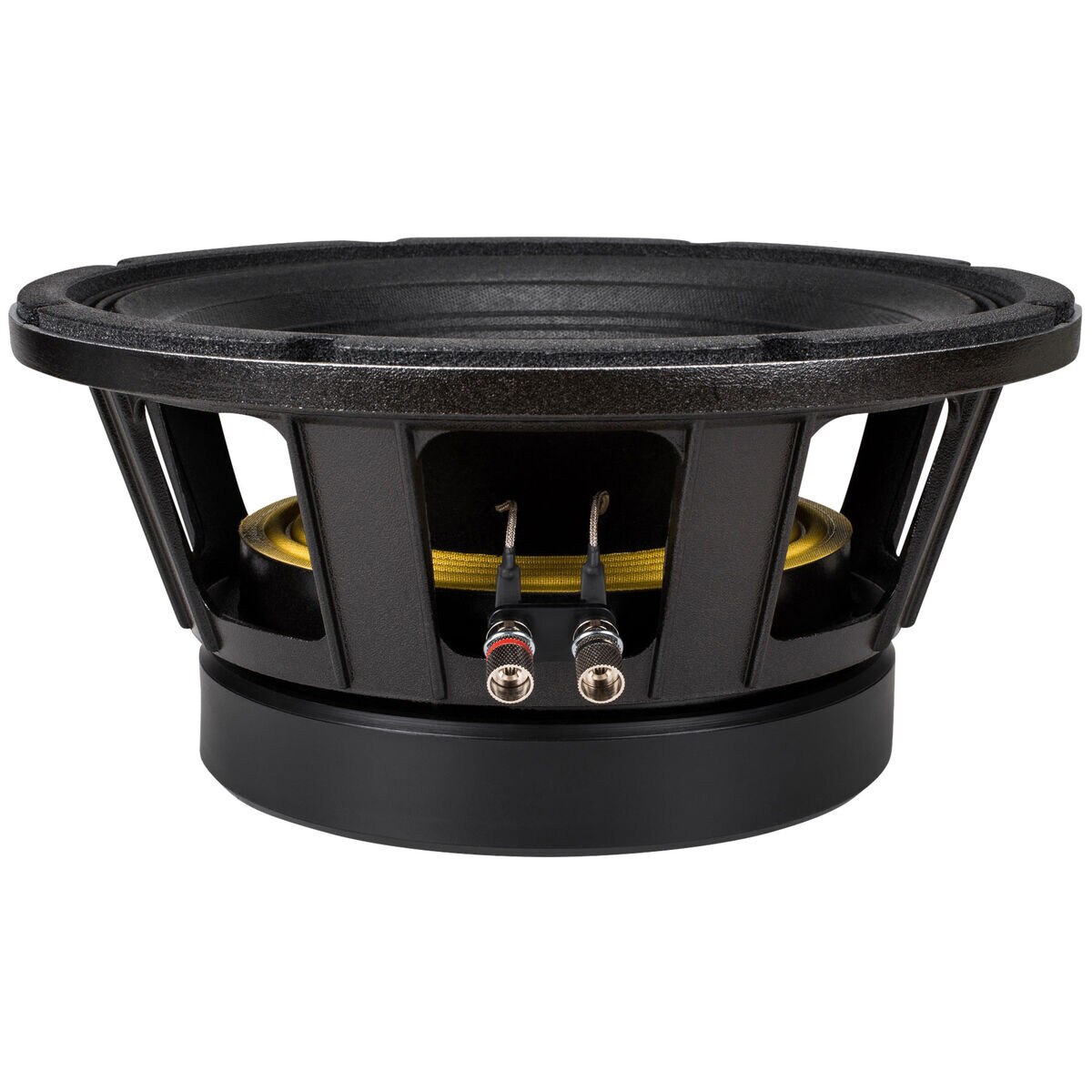

Eminence Definimax 4012ULF-8 12" Cast Frame Driver

Eminence Definimax 4012ULF-8 12" Cast Frame Driver. Part Number: 290-4510 by Eminence Speaker.

Eminence Speaker . 4012ULF-8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandEminence Speaker
DimensionUnitinch
Extra Product NameEminence Definimax 4012ULF-8 12" Cast Frame Driver
UPC876358002580
Weight23.4
WeightUnitlbs
depth, length5.32
diameter, height, width12.38
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model4012ULF-8
qtyInStock0
SKU, Part Number290-4510
snippetEminence Definimax 4012ULF-8 12" Cast Frame Driver. Part Number: 290-4510 by Eminence Speaker.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.69
Power Handling (RMS)1200 Watts
Power Handling (MAX)2400 Watts
Impedance8?
Frequency Response37 to 200Hz
Sensitivity90.7dB 2.83V/1m
Voice Coil Diameter4"
Resonant Frequency (Fs)40Hz
DC Resistance (Re)6.2?
Voice Coil Inductance (Le)4.32mH
Mechanical Q (Qms)12.13
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)1.46ft?
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)27.38T?m
Maximum Linear Excursion (Xmax)6.7mm
Surface Area of Cone (Sd)2259cm?
Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.38"
Baffle Cutout Diameter11.07"
Depth5.32"
# Mounting Holes8
Sealed Volume0.208ft?
Sealed F3109.1Hz
Vented Volume0.484ft?
Vented F365.89Hz
