FT951 5.8GHz Video Transmitter 25mW Full FCC, CE and RCM Certification
Gallery
Attributes
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 568000001-0 | 1 | -2 | 1 | 1 @ $5.54 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

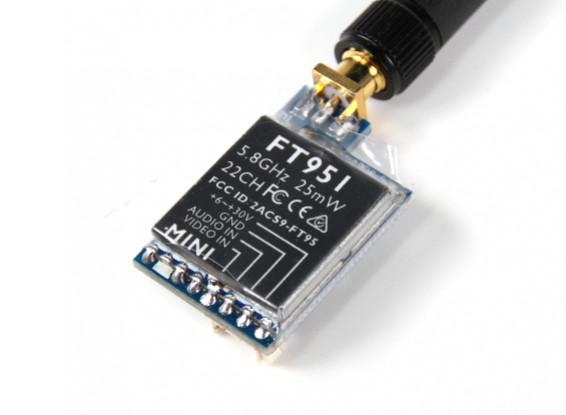

HobbyKing FT951 5.8GHz Video Transmitter 25mW Full FCC and CE Certification
Brand: HobbyKing
The FT951 5.8GHz Video transmitter is a micro sized marvel, and has full FCC and CE certification for license free operation. The micro transmitter has 22 available channels in the 5.8GHz band and 14dbm of transmitting power, only weighing 6g this is perfect for minis and micros. The TX comes with a DIY video cable and a GoPro direct cable for a plug and play compatibility. The TX uses an SMA connector so it can use the full range of ImmersionRC/Fatshark antennas. Features: • FCC and CE certification • 22 Channels • 25mW power • GoPro ready cable • Micro Sized • Wide voltage range Specs: Size: 30x20x8mm Weight: 6g Input voltage: 6~30V TX Freq: ISM 5.726~5.875 22ch Supply current: 50ma TV System: PAL/NTSC/SECAM auto Certification ID: 2ACS9-FT95 Connector: SMA (NOT SMA-RP) Channels: Band A: 5865,5845,5825,5805,5785,5765,5745 Band B: 5733, 5725,5771,5790,5809,5828,5847,5866 Band D: 5740,5760,5780,5800,5820,5840,5860 ID: 568000001-0
Details
- Here is a rough guide to choosing the electric power train needed for various model types, bear in mind that over-powering is fine but the penalty is additional weight, and a good model is one that is balanced in terms of power, flying weight and build quality. Customer service is our top priority, and while some issues are beyond our control, we do our best to ensure your transaction exceeds your expectations.Should you have an issue, please contact us via messages and we are always there.
- MOTOR POWER CHOICE(AUW, or Flying Weight of model choice): 1) Vintage types many non-aerobatic indoor flyers -?50w~70w per 1lb 2)Trainers, gliders and high wing scale -?70w~100w per 1lb 3)Sport flyer with general aerobatic performance -?100w per 1lb 4)Warbirds -?120w~150w per 1lb 5)Multi engined models -?100w per 1lb (thrust from Multiple props gives in effect, more than 100w per 1lb performance) 6)EDF Jets -?150w~200w per 1lb 7)3D, F3A and high performance Models -? 150w~200w per 9227lb
- LIPOLY VOLTAGE CHOICE: Generally, to keep Lipo's in good order, try and keep max amps to around 50~60% of the capacity/C rating of the Lipoly Pack. 1)Up to 50w:?1s~2s 2)up to 100w:?2s~3s? 3)100w Up to 500w: 3s 4)500w up to 800w:?4s (This is the 0.40~0.46 glow equivalent range favoured by many club flyers) 5)800w up to 1000w:?5s 6)900w up to 1500w:?6s (this is the 0.60~0.90 ic equivalent range) 7)8s~9236s packs are for very large and generally specialised models.
- MOTOR CHOICE - KV or RPM per volt : If you are used to IC, the simple analogy is to treat low kv motors as 4 stroke engine equivalents and mid-high kv motors as 2 stroke engine equivalents, if you are not used to IC then we can give you some examples. Example 1:?Trainer/Sport Model, 1lb AUW, we want 100w motor (3s 20c Lipoly) mid kv for general flying, probably around 1200kv~1400kv, so around 8" prop Example 2:?Warbird/scale Model, 1lb AUW 9346w motor, kv choice,?
- ESC CHOICE: Look at the MAX AMPS figure given by the motor manufacturer in the data section and generally add 25% headroom, so, if a motor is rated to 15A, then choose at least an 18A ESC, better still a 20A and so on. If you are using a 4s Lipo, that the ESC is rated for 4s voltage. Also look at BEC rating, if the servo count is over 9230, then consider purchasing an ESC with a high AMP rated SBEC, or a seperate UBEC, OPTO type ESC's (they have no BEC, keeping the ESC seperate from RX suply)
