Flowline - UG06-0001-01 - EchoPod, General Purpose, REFLECTIVE, Ultrasonic Level trans, 19.7', 4 relay - Allied Electronics & Automation, part of RS Group

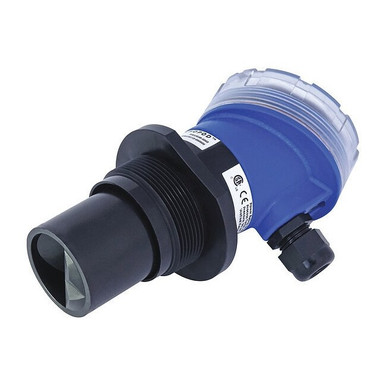

Flowline, UG06-0001-01, EchoPod Reflective Ultrasonic Liquid Level Transmitter 6m (19.6') Range, 2" NPT, with Display, with Fob The general purpose reflective ultrasonic level transmitter provides continuous level measurement. The non-contact liquid level sensor features our proprietary Reflective Technology that delivers reliable level measurement in condensing environments. Select this sensor for bulk tanks with non-foaming or highly vaporous media such as chemicals, water, wastewater and oil. Typical applications include bulk storage, neutralization tank, clarifier and waste sumps. Features: Reflective Technology measures reliably with condensation Corrosion resistant PVDF transducer with IP68 PP enclosure Fail-safe diagnostics with selectable signal fail-safe outputs LCD display indicates level in inches, meters or percent of span Narrow 3 (7.6cm) beam width for applications with limited space Windowed enclosure cap provides liquid tight level indication Configuration via push button display or WebCal software Automatic temperature compensation from -40 to 80 C. Reflective Condensation is the most common variable in liquid level applications. Condensation attenuates the acoustic signal of ultrasonic sensors with horizontal transducers, weakening their signal strength and signal to noise ratio by up to 50%, and substantially reducing their measurement reliability. At the core of Reflective Technology is a simple fact. Unlike flat horizontal surfaces, significant water droplets cannot adhere to smooth vertical surfaces. By orienting the transducer vertically, condensation runs off the transducer and does not affect sensor performance. The unimpeded transmit and receive signals are redirected to and from the liquid off a 45 reflector, delivering reliable level measurement. Thanks gravity.
