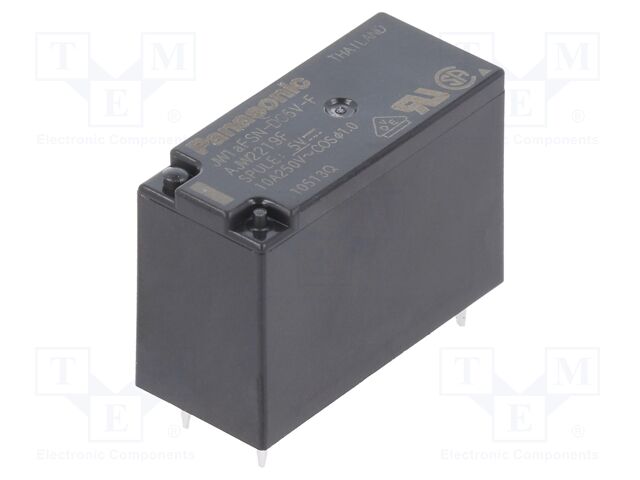

PANASONIC JW1AFSN5FT | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10A
PANASONIC JW1AFSN5FT | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | PANASONIC |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | PANASONIC JW1AFSN5FT | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | c60abc6883150d138200fd7d98f611df.5 |
| jsonUrlData2 | 11a6540ca197f17c3c26 |
| keywords | PANASONIC, JW1AFSN5FT, JW1AFSN-DC5V-F, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | JW1AFSN5FT |
| qtyInStock | 69 |
| SKU | JW1AFSN-DC5V-F |
| snippet | PANASONIC JW1AFSN5FT | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 10 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 1000 |
| tierPrice1 | 2.81 |
| tierPrice2 | 2.39 |
| tierPrice3 | 2.11 |
| tierPrice4 | 1.96 |
| tierPrice5 | 1.83 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 5V DC |
| Contact current max | 10A |
| AC contacts rating @R | 10A / 250V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 30V DC, |
| Relay variant | miniature |
| Mounting | PCB, |
| Coil resistance | 47? |
| Coil voltage min | 3.5V DC |
| Body dimensions | 28.6x12.8x20mm |
| Coil power consumption | 530mW |
| Operating temperature | -40...85?C |
| Relay series | JW |
| Contact material | AgSnO |
| Coil current | 106mA |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| JW1AFSN-DC5V-F | 1 | 69 | 1 | 1 @ $2.81, 5 @ $2.39, 25 @ $2.11, 100 @ $1.96, 1000 @ $1.83 |
