Parker

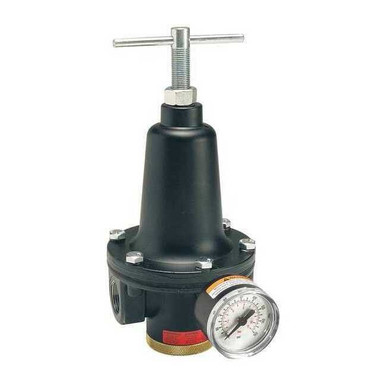

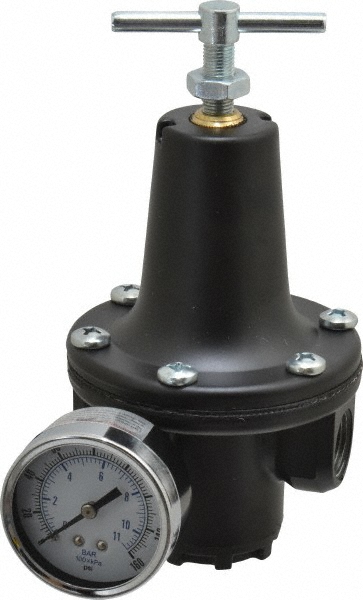

Air Regulator 1/2 Inch Npt 150 Cfm 300 Psi | 21U840 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . R119-04CG

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku21U840
UPCNone
UnitOfMeasureEA
Weight3.45
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height5.5
jsonUrlData924526ffbdad25e5923b
length11.8
moq, multiple, tierMinQty1, Number of Air Inlets, Number of Air Outlets1
MPNR119-04CG
qtyInStock261
qtyInStockOverride-2
SKUG4862496
tierPrice1110.60
urlhttps://www.zoro.com/parker-air-regulator-12-in-npt-150-cfm-300-psi-r119-04cg/i/G4862496/
width5.8
Promotion RestrictionNot eligible for promotion
ItemCompressed Air Regulator
Pipe Size - Regulators, Air Inlet Size, Air Outlet Size1/2 in
Max Inlet Pressure - Regulators, Max Inlet Pressure (Regulators), Maximum Operating Pressure, Max Pressure300 psi
Adjustment Range - Regulators, Adjustment Range (Regulators)0 to 125 psi
Max Temp - Regulators, Max Temp (Regulators), Maximum Operating Temperature125 Degrees F
Overall Height - Regulators6.76 in
Includes(2) Gauge Plugs and Face Gauge, Regulator
Adjustment KnobNonrising
Overall Height (Regulators), Height6.76"
Overall Width (Regulators), Length, Width3.56"
Overall Width - Regulators, Overall Length3.56 in
Compressed Air Regulator Product GroupingGeneral Purpose Air Regulator
Body Material, MaterialZinc
Valve DesignBalanced
SeriesR119
Max Flow - Regulators, Max Flow (Regulators), Maximum Flow Rate150 cfm
Gauge Port1/4 in NPT
Pipe Size (Regulators)1/2"
Inlet Size (Combined)1/2 in NPT
Adjustment MechanismScrewdriver
Air Outlet Type, Air Inlet Type, Pressure Gauge Port TypeNPT
Adjustment LocationTop
Overall Depth, Overall Width3 9/16 in
Minimum Operating Temperature40 Degrees F
Regulator Body MaterialAluminum or Zinc
Pressure Gauge IncludedYes
Overall Height6 7/8 in
Seal MaterialNitrile
Adjustment Mechanism MaterialSteel
Pressure Gauge Port Size1/4 in
Modular ConnectionNo Modular Connection
Air Inlet Gender, Air Outlet GenderFemale
Maximum Regulated Pressure125 psi
Regulator TypeRelieving
For Fluid Type, For Substance TypeAir
System LocationAir Line
Minimum Regulated Pressure2 psi
Pressure Control Range (Combined)2 psi to 125 psi
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG4862496126111 @ $110.60
Raptor SuppliesAB6KHG111 @ $280.97
Applied Industrial10179398011
bscsource.comR11904CG111 @ $155.99
sustainablesupply.comC16664001-211 @ $113.85
Guardian735356011-211 @ $208.91
simsupply.comZO-G486249614211 @ $148.28
National Supply Network735356011-211 @ $230.52
Voomi SupplyR119-04CG1-211 @ $181.06
