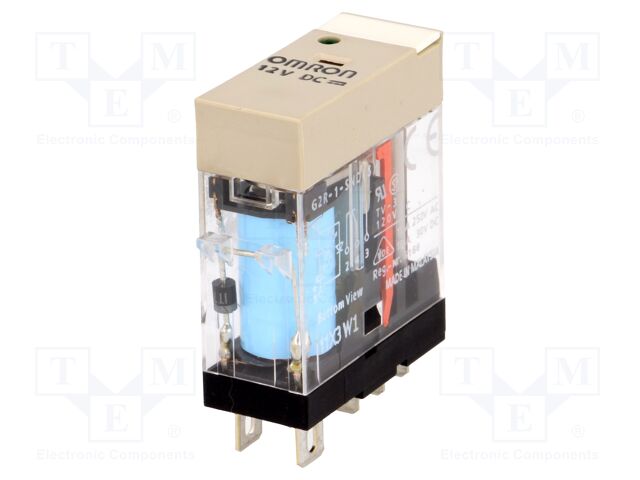

OMRON G2R-1-SND 12VDC (S) | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A
OMRON G2R-1-SND 12VDC (S) | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Industrial Electromagnetic Relays |
| Extra Product Name | OMRON G2R-1-SND 12VDC (S) | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | d3e347860c57db3ca4f67eee34b72122. |
| jsonUrlData2 | eb7ec3bf74fbbdb8e2ff |
| keywords | OMRON, G2R-1-SND 12VDC (S), G2R-1-SND-12DC |
| MPN | G2R-1-SND 12VDC (S) |
| qtyInStock | 165 |
| SKU | G2R-1-SND-12DC |
| snippet | OMRON G2R-1-SND 12VDC (S) | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 10 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierPrice1 | 11.04 |
| tierPrice2 | 10.04 |
| tierPrice3 | 9.03 |
| tierPrice4 | 8.03 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 12V DC |
| Contact current max | 10A |
| AC contacts rating @R | 10A / 250V AC |
| DC contacts rating @R | 10A / 30V DC |
| Switched voltage | max. 125V DC, |
| Relay variant | industrial, |
| Mounting | socket |
| Relay series | G2R-1-S |
| Operating temperature | -40...70?C |
| Body dimensions | 29x13x35.5mm |
| Coil resistance | 275? |
| Operate time | 15ms |
| Release time | 20ms |
| Coil current | 43.6mA |
| Contact resistance | 30m? |
| Coil power consumption | 530mW |
| Switching capacity | 300W, |
| Terminal pitch | 5.2mm |
| Related items | P2R-05A, |
| Indication | LED |
| Design | protection diode |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2R-1-SND-12DC | 1 | 165 | 1 | 1 @ $11.04, 5 @ $10.04, 25 @ $9.03, 100 @ $8.03 |
