Order YA30TC12FXB by Burndy Copper Compression Lug, (Pack of 25 pcs) - US Mega Store

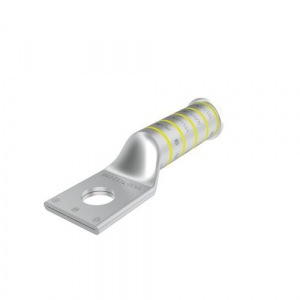

Burndy, YA30TC12FXB, Copper Compression Lug, UL Listed 90° C, 600 Volts to 35kV.

Burndy . YA30TC12FXB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA30TC12FXB
ConditionNEW
DimensionUnitmm
Extra Product NameOrder YA30TC12FXB by Burndy Copper Compression Lug, (Pack of 25 pcs) - US Mega Store
diameter, height20.574
height_AttribDimension - Outside Diameter inch
length103.0
length_AttribDimension - L Length Overall mm
moq, multiple, tierMinQty1, Physical Attribute - Number of Holes1
MPN, SKUYA30TC12FXB
qtyInStock-2
qtySourceFieldMap
snippetBurndy, YA30TC12FXB, Copper Compression Lug, UL Listed 90° C, 600 Volts to 35kV.
tierPrice135.94
width32.766
width_AttribDimension - Pad Width inch
Color CodeYellow
Connector TypeTerminal
Die Index16
Feature - Barrel StyleBelled
Feature - Barrel TypeLong
Material, Conductor - MaterialCopper
Physical Attribute - Tongue TypeStandard
PlatedYes
Plating TypeTin Plated
Trade NameHYLUG
TypeLong Barrel, Tin Plated
Dimension - B Length fraction2-3/16 in
Dimension - B Length inch2.16 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.56 in
Dimension - Bolt Size fraction, Dimension - Stud Size inch, Dimension - Thread Size1/2
Dimension - Hole Size mm14 mm
Dimension - L Length Overall mm103 mm
Dimension - Length Overall inch4.04 in
Dimension - N inch0.62 in
Dimension - Outside Diameter inch0.81 in
Dimension - Pad Width inch1.29 in
Dimension - Strip Length inch2-1/4 in
Dimension - Z inch0.64 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Flex G Size, Conductor - Copper Flex G Size Range, Conductor - Copper Flex H Size, Conductor - Copper Flex H Size Range, Conductor - Copper Flex I Size, Conductor - Copper Flex I Size Range, Conductor - Copper Flex K Size, Conductor - Copper Flex K Size Range, Conductor - Copper Flex M Size, Conductor - Copper Flex M Size Range, Conductor - Copper Solid Size, Conductor - Copper Solid Size Range, Conductor - Copper Str Size250 kcmil
Conductor - Copper Str Size Range300 kcmil

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA30TC12FXB1-211 @ $35.94
Graybar96095143111 @ $40.83
