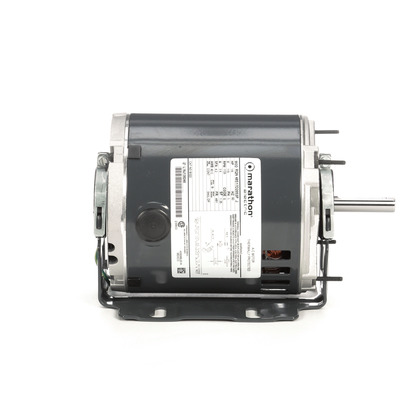

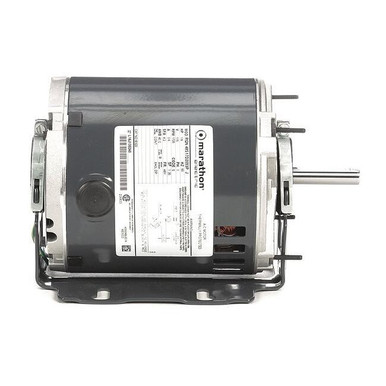

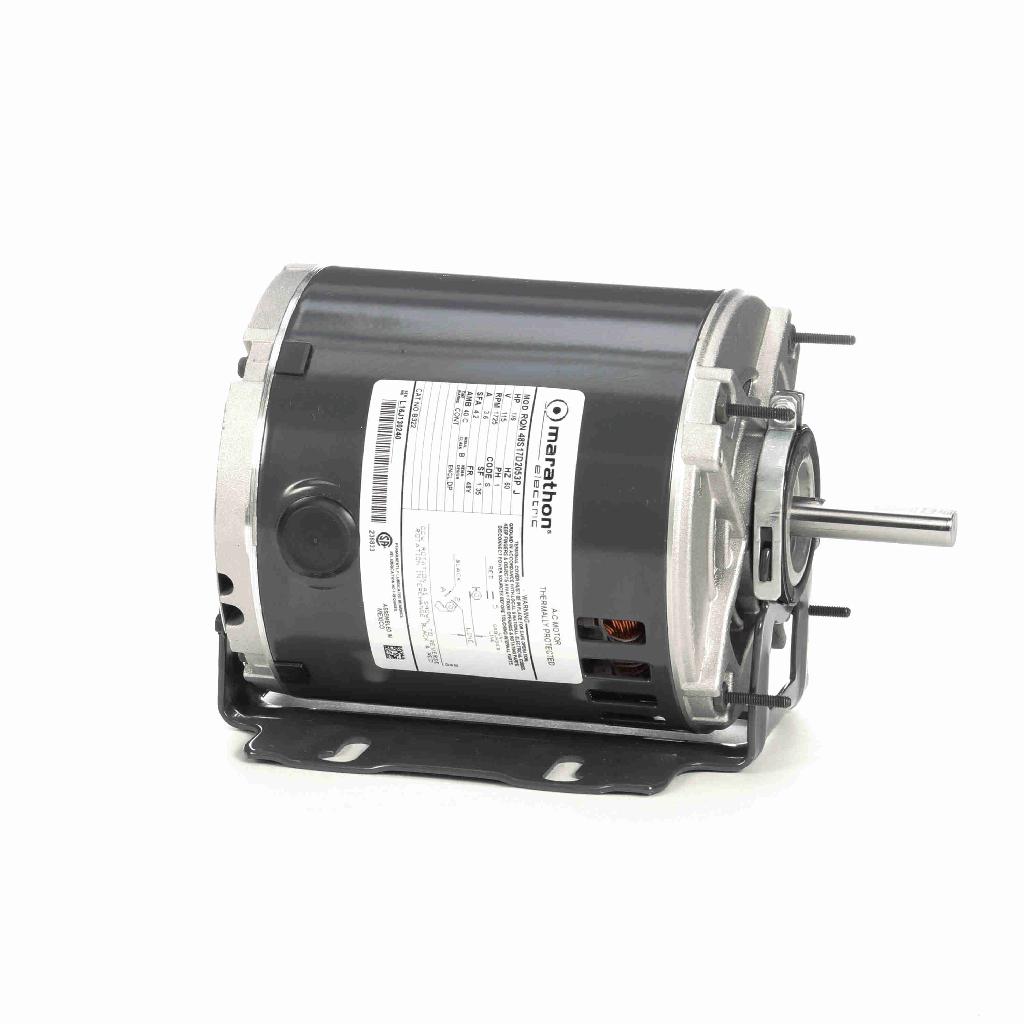

Condenser Fan Motor, 1/6 HP, 48Y Frame

048S17D2053 B322 HVAC Motor | B322 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Marathon Motors . 048S17D2053

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMarathon Motors
DimensionUnitinch
Extra Product NameCondenser Fan Motor, 1/6 HP, 48Y Frame
Voltage115V AC
Weight13
WeightUnitlbs
Weight_AttribWeight
countryOfOrigin, Country of Origin (subject to change)Mexico
diameter, height, width5.625
extendedLead26
extendedQty-2
height_Attrib, width_AttribBody Dia.
jsonUrlData924526ffbdad25e5923b
length9.3125
length_AttribOverall Length
moq, multiple, tierMinQty1, No of Speeds1
MPN048S17D2053
qtyInStock0
tierPrice1156.54
urlhttps://www.zoro.com/marathon-motors-condenser-fan-motor-16-hp-48y-frame-048s17d2053/i/G7244078/
Resilient Ring Dia2 1/4 in
StandardsCE, CSA (LR2025), UL (E6312)
Manufacturers Warranty Length1 yr
Stud Size#8-32
Full Load Amps3.6
Length Less Shaft7 7/16 in
Ins ClassB
Frame48Y
Motor Shaft DesignFlat
Ring to Ring Center7 1/16 in
Shaft Dia1/2 in
Body Dia5 5/8 in
Motor BearingsBall
Motor Enclosure DesignOpen Dripproof
ApplicationFan/Blower
Overall Length9 5/16 in
Capacitor Required, Usable @ 208V, Usable @ 200VNo
Nameplate RPM1,725
HP1/6
Motor Mounting TypeRing/Stud
Duty, Duty CycleContinuous
Hz60
Motor Mounting PositionHorizontal
Motor ApplicationHVAC/R
Bolt Circle Dia5-1/8"
ItemBelt Drive Motor
Nominal Efficiency55 %
PhaseSingle
Motor Shaft RotationCW/CCW
Shaft Length1 13/16 in
Motor Thermal ProtectionAuto
Motor Sub ApplicationDirect Drive Fan/Blower
RPM Range1,701-1,800
Mounting Stud Pattern3-5/8 in x 3-5/8 in
Stud Quantity4
Max Ambient Temp40 Degrees C
Motor Service Factor1.35
Motor DesignSplit-Phase
Voltage Compatibility115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Frame MaterialSteel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG7244078111 @ $156.54
Raptor SuppliesAJ2LEB111 @ $380.10
Dealers Electric048S17D2053111 @ $181.28
motorsandcontrol.comB322111 @ $158.23
simsupply.comCU-34393054393011811 @ $150.05
pumpproducts.com048S17D20531-211 @ $312.32
simsupply.comZO-G724407814211 @ $164.34
Grainger490T9011
Platt.com210584011
Galco048S17D2053-MARA111 @ $141.58
