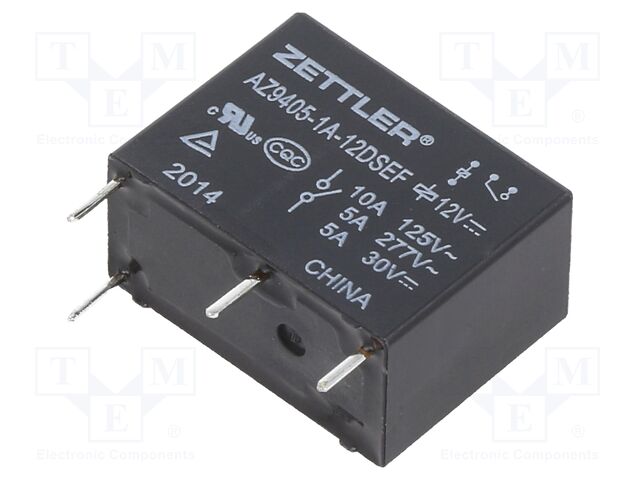

ZETTLER AZ9405-1A-12DSEF | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/277VAC; PCB
ZETTLER AZ9405-1A-12DSEF | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/277VAC; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ9405-1A-12DSEF | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/277VAC; PCB |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 34238f31697007b0aab2b0516db1b5b9. |
| jsonUrlData2 | 94e71cd9d5e377758913 |
| keywords | ZETTLER, AZ9405-1A-12DSEF, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ9405-1A-12DSEF |
| qtyInStock | 483 |
| snippet | ZETTLER AZ9405-1A-12DSEF | Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 5A/277VAC; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 1.46 |
| tierPrice2 | 1.25 |
| tierPrice3 | 1.15 |
| tierPrice4 | 1.03 |
| tierPrice5 | 0.96 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 12V DC |
| Contact current max | 10A |
| AC contacts rating @R | 5A / 277V AC |
| DC contacts rating @R | 5A / 30V DC |
| Switched voltage | max. 30V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 720? |
| Body dimensions | 20x10x15.2mm |
| Coil power consumption | 200mW |
| Operating temperature | -40...85?C |
| Relay series | AZ9405 |
| Contact resistance | 100m? |
| Terminal pitch | 7.62mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ9405-1A-12DSEF | 1 | 483 | 1 | 1 @ $1.46, 5 @ $1.25, 25 @ $1.15, 100 @ $1.03, 500 @ $0.96 |
