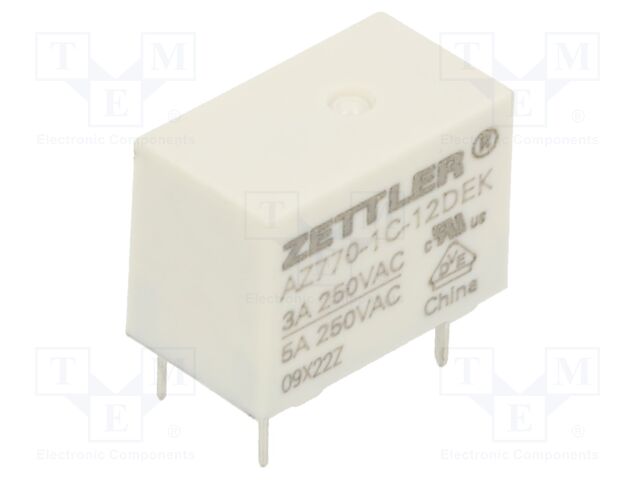

ZETTLER AZ770-1C-12DEK | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A; 3A/250VAC; 3A/30VDC
ZETTLER AZ770-1C-12DEK | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A; 3A/250VAC; 3A/30VD
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ770-1C-12DEK | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A; 3A/250VAC; 3A/30VDC |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | d38340bdaf642da29894ffe8e56543c6. |
| jsonUrlData2 | 69012c4a7a4132a3fc78 |
| keywords | ZETTLER, AZ770-1C-12DEK, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ770-1C-12DEK |
| qtyInStock | 490 |
| snippet | ZETTLER AZ770-1C-12DEK | Relay: electromagnetic; SPDT; Ucoil: 12VDC; 5A; 3A/250VAC; 3A/30VD |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 1.3 |
| tierPrice2 | 1.11 |
| tierPrice3 | 1.02 |
| tierPrice4 | 0.93 |
| tierPrice5 | 0.85 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 12V DC |
| Contact current max | 5A |
| AC contacts rating @R | 3A / 250V AC |
| DC contacts rating @R | 3A / 30V DC |
| Switched voltage | max. 30V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 320? |
| Body dimensions | 17.85x10.35x12.55mm |
| Coil power consumption | 450mW |
| Operating temperature | -40...85?C |
| Relay series | AZ770 |
| Contact resistance | 100m? |
| Contact material | AgNi |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ770-1C-12DEK | 1 | 490 | 1 | 1 @ $1.30, 5 @ $1.11, 25 @ $1.02, 100 @ $0.93, 500 @ $0.85 |
