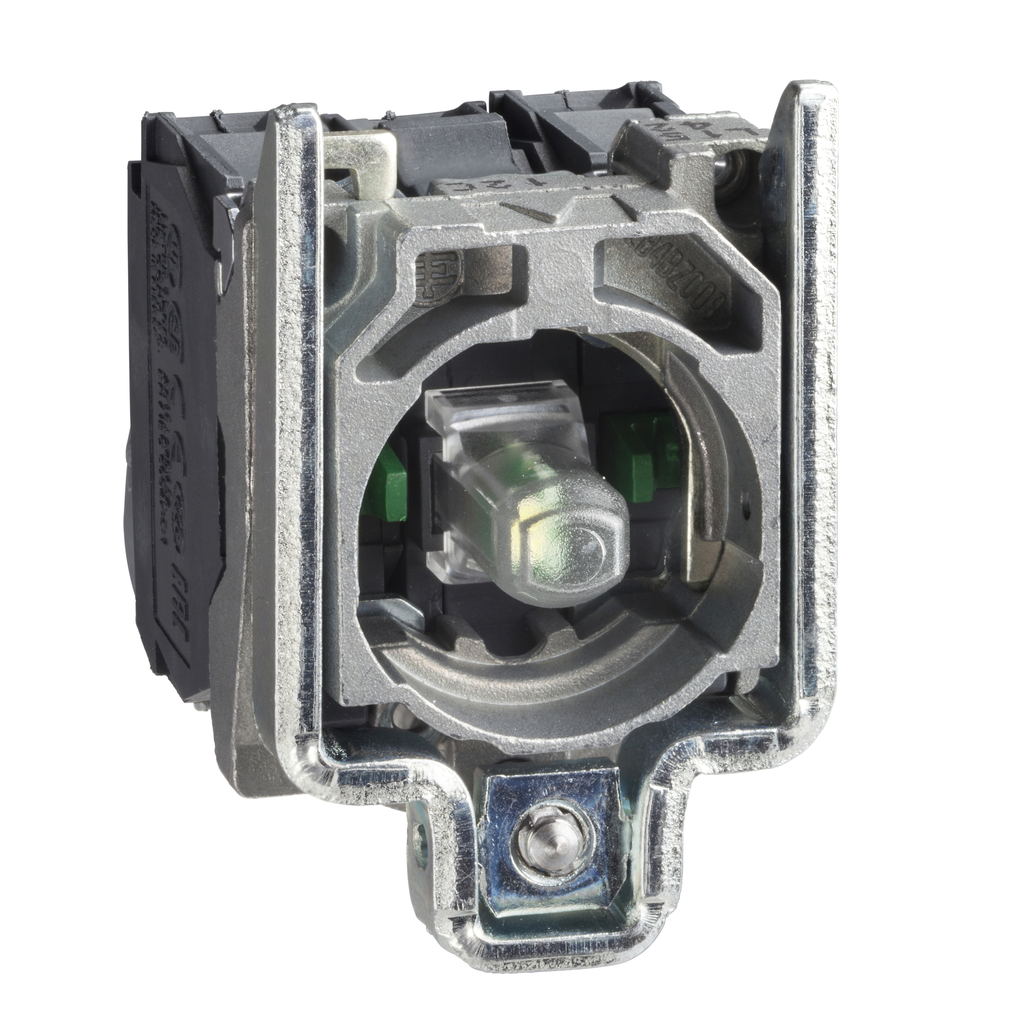

22mm push button, Harmony ZB4, metal base, yellow 12VAC/VDC LED light module, 2NO contacts | Mayer Electric

SQUARE D . SQDZB4BW0J53

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product Name22mm push button, Harmony ZB4, metal base, yellow 12VAC/VDC LED light module, 2NO contacts | Mayer Electric
UPC3606480499456
height47.0
height_AttribCad Overall Height
jsonUrlData/Product/SQUARE-D-22mm-push-button-Harmony-ZB4-metal-base-yellow-12VAC-VDC-LED-light-module-2NO-contacts-3606480499456
jsonUrlData277542a46-2ab3-4dc3-8280-ade40063c370
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDZB4BW0J53
qtyInStock0
tierPrice194.53
width30.0
width_AttribCad Overall Width
Range Of ProductHarmony XB4
Light Sourceprotected LED
Light Block Supplydirect
Product Or Component Typecomplete body/contact assembly and light block
Fixing Collar Materialzamak
Head Type, Contacts Usagestandard
Connections - Terminalsplug-in connector
Contacts Type And Composition2 NO
Contact Operationslow-break
Light Source Colourorange
Device Short NameZB4
[Us] Rated Supply Voltage12 V DC 50/60 Hz
Bulb Baseintegral LED
Terminals Description Iso N?1(11-12)NC
Short-Circuit Protection4 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force2 N NC changing electrical state || 2.3 N NO changing electrical state
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwith EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage4 kV EN 60947-1
Cad Overall Height47 mm
Current Consumption14 mA
Service Life100000 h at rated voltage and 25 ?C
Surge Withstand1 kV IEC 61000-4-5
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
Signalling Typesteady
Operating Torque0.05 N.m NO changing electrical state
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Mechanical Durability5000000 cycles
Cad Overall Width30 mm
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsDNV || GL || UL Listed || LROS (Lloyds register of shipping) || CSA || BV
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Electrical Shock Protection Classclass I IEC 60536
Protective TreatmentTH
Resistance To Fast Transients2 kV IEC 61000-4-4
Electromagnetic Emissionclass B IEC 55011
