MSP-9-AN, 9mm Two-Piece Shaft Collar, Anodized Aluminum | Ruland

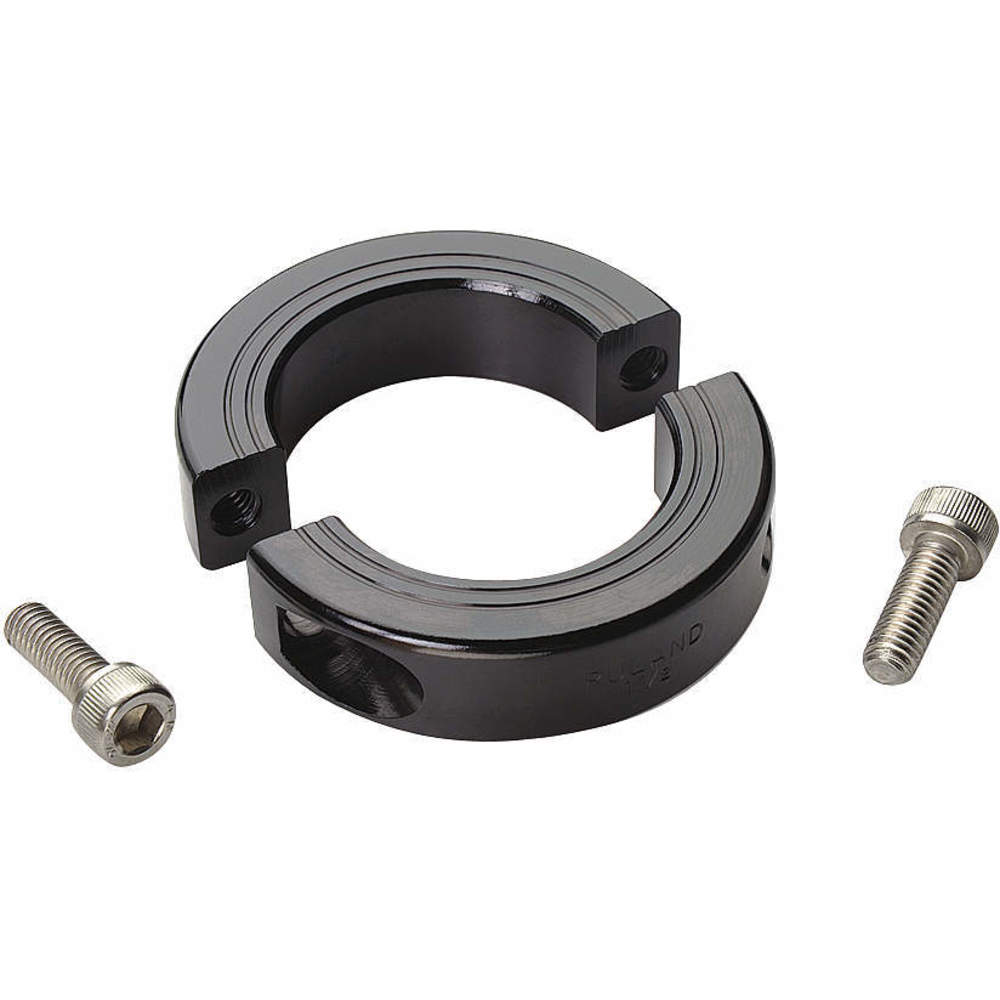

Ruland part number MSP-9-AN is an anodized aluminum two-piece shaft collar with 9mm bore. Download a 2D/3D CAD file or purchase the MSP-9-AN directly from the manufacturer.

Ruland . MSP-9-AN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRuland
DimensionUnitmm
Extra Product NameMSP-9-AN, 9mm Two-Piece Shaft Collar, Anodized Aluminum | Ruland
UPC634529118528
Weight, Weight (lbs)0.021300
WeightUnitlbs
Weight_AttribWeight (lbs)
countryOfOrigin, Country of OriginUSA
diameter, height, length26.3
height_Attrib, length_AttribClearance Diameter (C) MAX
keywordsMSP-9-AN, Shaft Collar, Two-Piece Shaft Collar
moq, multiple, tierMinQty1100
MPN, SKUMSP-9-AN
qtyInStock-2
qtySourceFieldMap
snippetRuland part number MSP-9-AN is an anodized aluminum two-piece shaft collar with 9mm bore. Download a 2D/3D CAD file or purchase the MSP-9-AN directly from the manufacturer.
tierMinQty2250
tierMinQty3500
tierPrice123.05
tierPrice217.28
tierPrice310.37
width9.0
width_AttribWidth (W)
Bore (B1), Width (W)9 mm
Bore Tolerance+0.050 mm / +0.012 mm
Outer Diameter (OD)24 mm
Clearance Diameter (C) MAX26.3 mm
Width Tolerance+0.076 mm / -0.254 mm
Recommended Gap1.59 mm
Recommended Shaft Tolerance+0.000 mm / -0.013 mm
Forged Clamp ScrewM3 x 10
Screw Material18-8 300 Series Stainless Steel
Hex Wrench Size2.5 mm
Screw FinishBright
Seating Torque1.1 Nm
Screw Location (R)8.51 mm
Number of Screws2 ea
Material Specification2024-T351 Aluminum Bar
Finish SpecificationSulfuric Anodized MIL-A-8625 Type II, Class 2 and ASTM B580 Type B Black Anodize
Temperature-40°F to 200°F (-40°C to 93°C)
Tariff Code8483.60.8000
UNSPC31162811
Note 1Performance ratings are for guidance only. The user must determine suitability for a particular application.

Distributor offers

SellerSKUMOQIn stockMultiplePrices
RulandMSP-9-AN100-2100100 @ $23.05, 250 @ $17.28, 500 @ $10.37
Raptor SuppliesAF9XQA111 @ $34.56
sustainablesupply.comC16462841-211 @ $16.97
Digi-Key13599772111 @ $19.78
Allied Electronics7262292211
ZoroG9685751111 @ $17.89
us.rs-online.com726229221001100 @ $28.50
