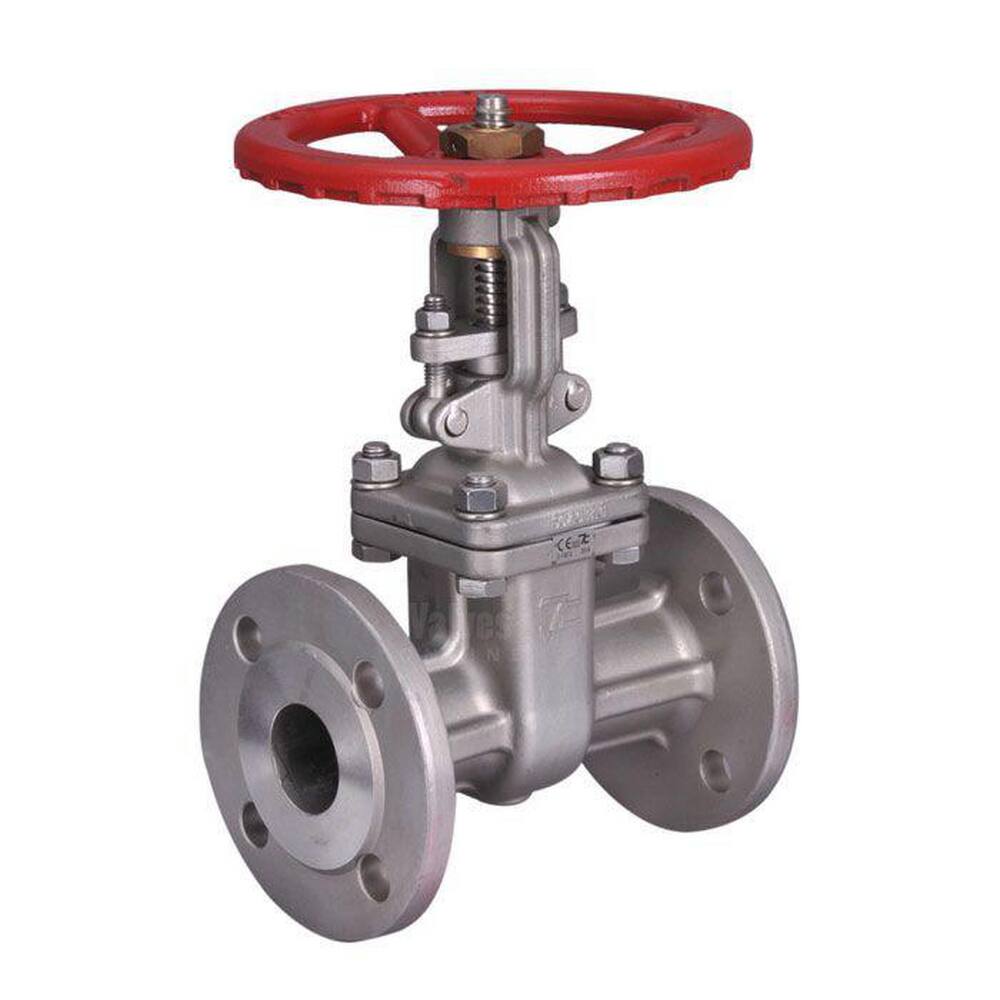

Ta Chen . V1GTF040
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Ta Chen |
|---|---|
| DimensionUnit | inch |
| Weight | 66.08 |
| Weight_Attrib | Weight |
| diameter, width | 8.82 |
| height | 20.39 |
| height_Attrib | Height |
| length | 9.0 |
| length_Attrib | Length |
| moq, multiple | 1 |
| MPN | V1GTF040 |
| qtyInStock | Call for Availability |
| SKU | 7191077 |
| width_Attrib | Diameter |
| ANSI Specifications | ANSI B16.10, ANSI B16.34, ANSI B16.5 |
| API Specifications | API 598 |
| ASTM Specifications | ASTM A-193 Grade B8, ASTM A-194 Grade 8, ASTM A-276 Grade 316, ASTM A-351 Grade CF8M, ASTM B-16.34 |
| Application | Industrial |
| Diameter | 8-41/50 in |
| End Connection 1, End Connection 2, End Connections | Flanged |
| FM Approved, NSF Certified, UL Listed | No |
| Handle Material | Ductile Iron |
| Height | 20-39/100 in |
| High Pressure | 125 |
| Length | 9 in |
| Material | Ductile Iron, Stainless Steel |
| Pressure Class | 150# |
| Valve Body Material, Valve Disc Material | Stainless Steel |
| Valve Operator | Handwheel |
| Valve Size | 4 in |
| Valve Stem | Rising OS&Y |
| Valve Type | Gate Valve |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 7191077 | 1 | Call for Availability | 1 |
