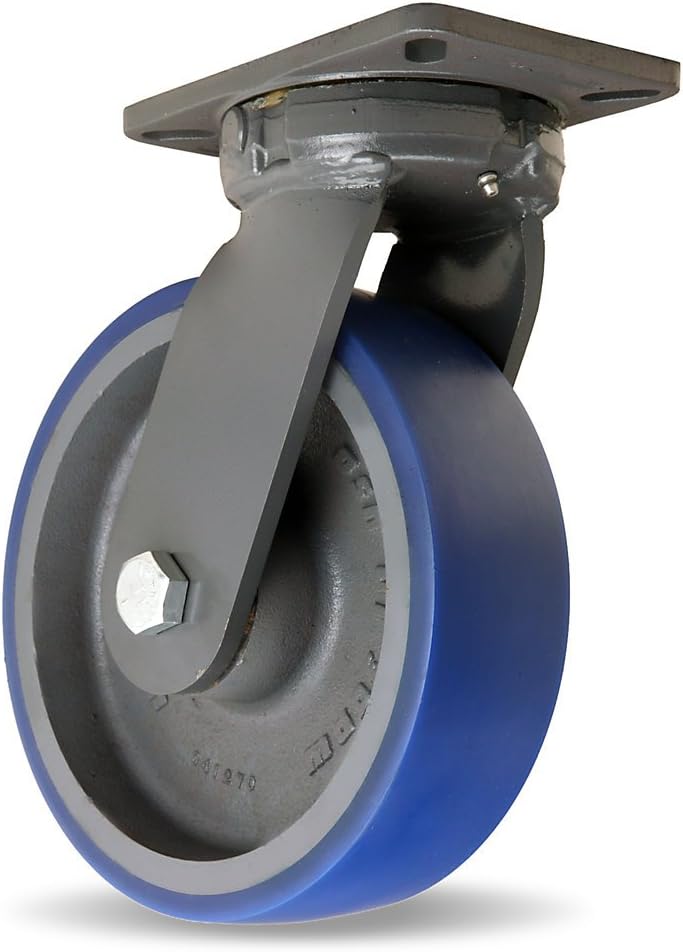

Super Endurance; Swivel Caster, 10" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Precison Tapered Roller Bearing

The Hamilton Super Endurance Caster features a 10-inch diameter by 3-inch wide poly-soft polyurethane wheel and -3/4 inch precision tapered roller bearings. It has a capacity of 2400 pounds and a swivel design.

Super Endurance; Swivel Caster, 10" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Precison Tapered Roller Bearing

Hamilton . S-SEC-13SPT

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Man, Publisher, StudioHamilton
CategoryId, CategoryIdL36740
CategoryIdL114394
CategoryIdL24473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GTIN, UPCNone
GraingerSku, MPN, Part Number, Model, ModelNumber, Model_number, PartNumber, Part_numberS-SEC-13SPT
UnitOfMeasureEA
Weight41 41.0 41.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height, length, moq, multiple, tierMinQty1, width, Number of Wheels, Case, NumberOfItems, Number_of_items1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3722562
snippetSuper Endurance; Swivel Caster, 10" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel with 3/4" Precison Tapered Roller Bearing
tierPrice1454.99
urlhttps://www.zoro.com/hamilton-super-endurance-swivel-caster-10-x-3-ergo-glide-polyurethane-85a-on-cast-iron-wheel-s-sec-13spt/i/G3722562/
Product GroupHome Improvement
Wheel Dia10
Wheel Width3
Plate Size5 1/4 x 7 1/4
Mounting Bolt Dia0.5
Mounting Height12.5
Caster Wheel ShapeStandard
Caster Wheel/Tread Material, Material, MaterialTypePolyurethane
Load Rating2400
Caster Product Group, ItemSwivel Caster
Caster Temp Range-50 to 200 deg(F)
Caster Wheel BearingsTapered
Inside Bolt Hole Spacing3 3/8 x 5 1/4
Replacement WheelW-1030-SPT-3/4
Caster Frame MaterialForged Steel
Non-Marking, Thread GuardsNo
Caster Plate Hole PatternA
Core ColorGray
Frame FinishPowder Coat
StandardsICWM
Outside Bolt Hole Spacing4 1/8 x 6 1/8
Caster Core MaterialCast iron
ASIN, AsinB00UZ6MF0M
BindingMisc.
Bullet_point-3/4" Precision Tapered Roller Bearings Capacity: 2400 lbs. Overall Height: 12.5" Wheel Dia.xW: 10x3" Wheel Type: Polyurethane
CatTools & Home Improvement
CatId228013
CatTree228013 468240 551240
ClassificationId511228
DisplayNameHardware
FeatureWheel Type: Polyurethane
Height1000 12.5 12.50 3.0 3.00 500 75
IsBrandQueryTrue
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleHamilton Super Endurance Casters - 10"Dia.X3"W Poly-Soft Polyurethane Wheel - -3/4" Precision Tapered Roller Bearings - 2400 Lbs. Capacity - Swivel
Item_package_weight, Item_weight41.0
Item_type_keywordplate-casters
Length0.0 0.00 10.0 12.5 12.50
Linkhttps://m.media-amazon.com/images/I/41J-yjGDzFL._SL75_.jpg https://m.media-amazon.com/images/I/41J-yjGDzFL.jpg https://m.media-amazon.com/images/I/614BgF9kP4L.jpg
ProductGroupBISS Basic Home Improvement
ProductTypeINDUSTRIAL_CASTERS
ProductTypeNameINDUSTRIAL_CASTERS TOOLS
Product_descriptionHAMILTON Super Endurance CastersA are excellent swivel casters for extreme loads. Kingpinless design reduces the chance of swivel failure. Perfect for extra-heavy duty applications. Top plate and inner raceway are formed from one piece, CNC-machined and hardened to ensure uniform hardness depth in the swivel raceway. -3/8x3" plate steel legs are robotically welded inside and outside to forged steel horn base. Load bearing is 3-5/8" diameter CNC-machined raceway. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs with tapered or straight roller bearings.
Product_site_launch_date2015-03-20T14:02:23.549Z
SkuHAMILTON S-SEC-13SPT
Supplier_declared_dg_hz_regulationunknown
URLhttps://m.media-amazon.com/images/I/41J-yjGDzFL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width0.0 0.00 10.0 10.00 1000 3.0 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3722562111 @ $454.99
ZoroG907072811
AmazonSCB00UZ6MF0M1-211 @ $473.20
National Supply Network172970211
motionindustries.com05865414111 @ $700.21

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton Super Endurance Casters - 10"Dia.X3"W Poly-Soft Polyurethane Wheel - -3/4" Precision Tapered Roller Bearings - 2400 Lbs. Capacity - Swivel
Brand: Hamilton
HAMILTON Super Endurance CastersA are excellent swivel casters for extreme loads. Kingpinless design reduces the chance of swivel failure. Perfect for extra-heavy duty applications. Top plate and inner raceway are formed from one piece, CNC-machined and hardened to ensure uniform hardness depth in the swivel raceway. -3/8x3" plate steel legs are robotically welded inside and outside to forged steel horn base. Load bearing is 3-5/8" diameter CNC-machined raceway. -3/4" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs with tapered or straight roller bearings.
Details
  • Wheel Type: Polyurethane
  • Wheel Dia.xW: 10x3"
  • Capacity: 2400 lbs.
  • Overall Height: 12.5"
  • -3/4" Precision Tapered Roller Bearings
Listing
BindingMisc.
Product groupHome Improvement
Product typeTOOLS
ModelS-SEC-13SPT
Part numberS-SEC-13SPT
Items per pack1
LabelHamilton
ManufacturerHamilton
Catalog
FeatureWheel Type: Polyurethane
CategoryTools & Home Improvement
MPNS-SEC-13SPT
Product groupHome Improvement
Product typeTOOLS
ManufacturerHamilton
