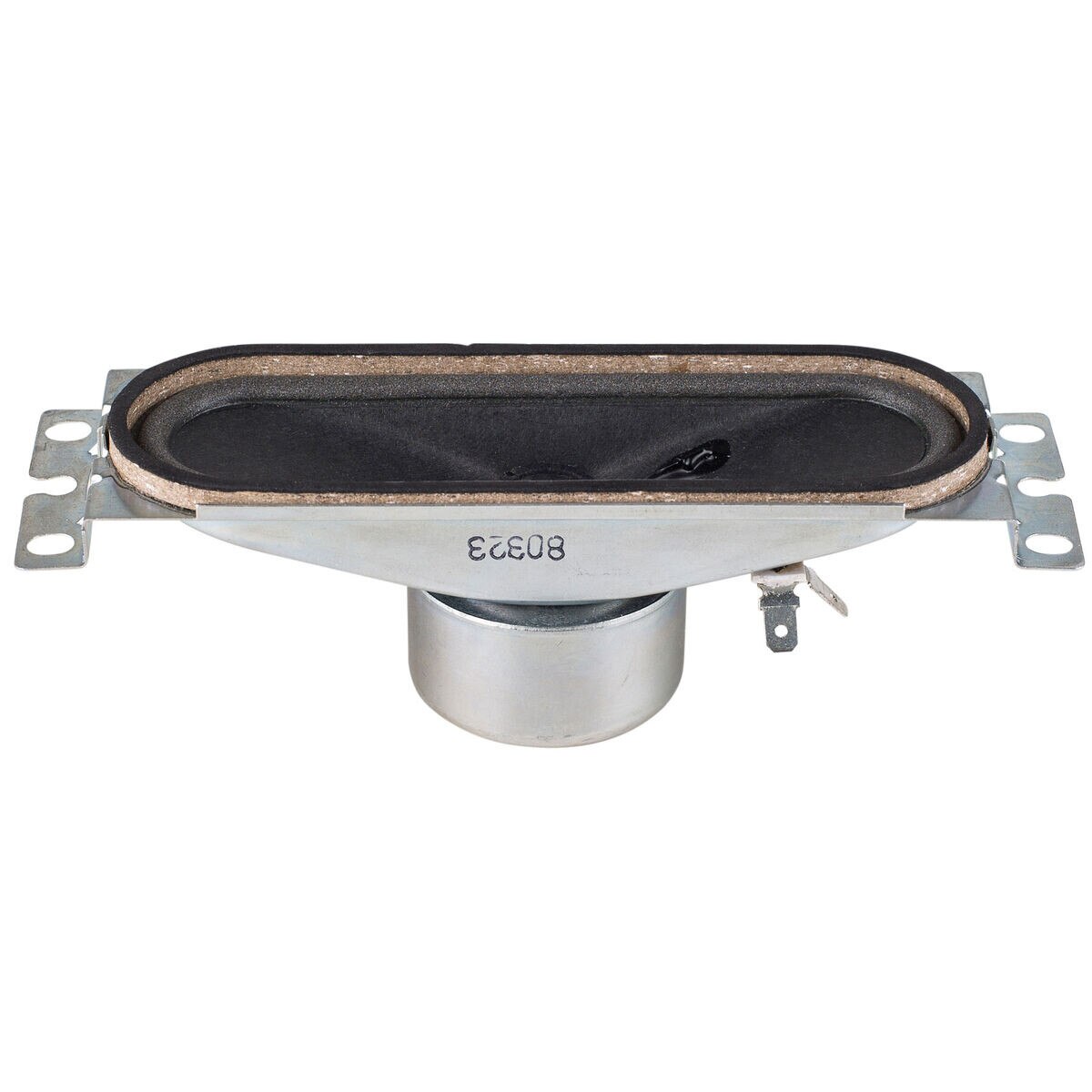

YDT513-16SX02 1-3/4" x 5" Paper Cone Full-Range Speaker 16 Ohms

YDT513-16SX02 1-3/4" x 5" Paper Cone Full-Range Speaker 16 Ohms. Part Number: 289-2210 by Factory Buyouts.

Factory Buyouts . YDT513-16SX02

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameYDT513-16SX02 1-3/4" x 5" Paper Cone Full-Range Speaker 16 Ohms
UPC848864048277
Weight0.35
WeightUnitlbs
depth, length1.59
diameter, height, width6.0
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelYDT513-16SX02
qtyInStock0
SKU, Part Number289-2210
snippetYDT513-16SX02 1-3/4" x 5" Paper Cone Full-Range Speaker 16 Ohms. Part Number: 289-2210 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter1 x 5"
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance16?
Frequency Response250 to 12,000Hz
Sensitivity83.84dB 2.83V/1m
Resonant Frequency (Fs)248.3Hz
DC Resistance (Re)14?
Voice Coil Inductance (Le)0.2523mH
Mechanical Q (Qms)6.289
Electromagnetic Q (Qes)8.55
Total Q (Qts)3.623
Cone MaterialPaper
Surround MaterialFoam
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter6 x 1.77"
Baffle Cutout Diameter5.28 x 1.77"
Depth1.59"
# Mounting Holes4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com289-221011
