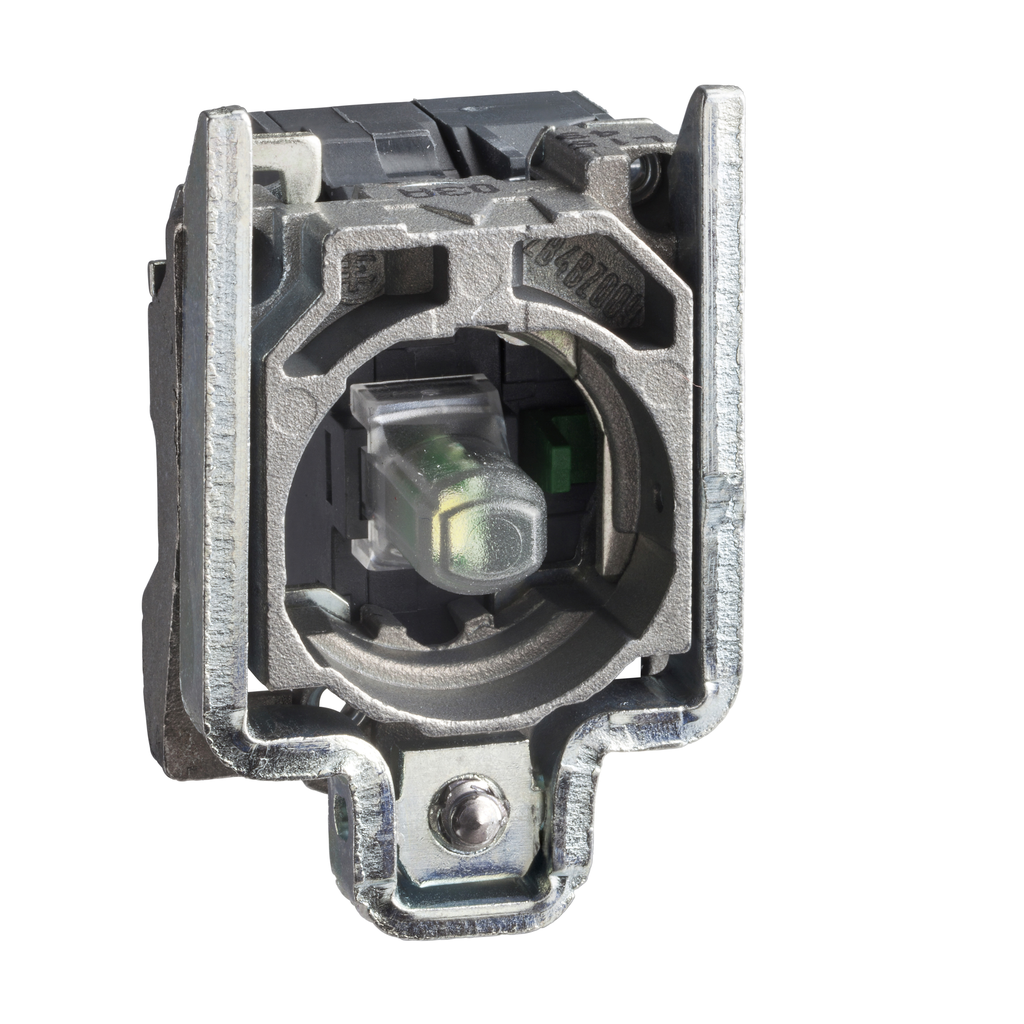

Complete body/contact assembly and light block, Harmony XB4, white, universal LED, body/fixing collar, 1NO + 1NC, 24V | Mayer Electric

SQUARE D . SQDZB4BW0B154

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameComplete body/contact assembly and light block, Harmony XB4, white, universal LED, body/fixing collar, 1NO + 1NC, 24V | Mayer Electric
UPC3389110894011
height47.0
height_AttribCad Overall Height
jsonUrlData/Product/SQUARE-D-Complete-body-contact-assembly-and-light-block-Harmony-XB4-white-with-body-fixing-collar-with-integral-LED-24-V-1NO1NC-3389110894011
jsonUrlData297536d95-3f9a-476d-bf92-aeea0058fa38
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDZB4BW0B154
qtyInStock0
tierPrice191.03
width30.0
width_AttribCad Overall Width
Range Of ProductHarmony XB4
Light Sourceuniversal LED
Light Block Supplydirect
Product Or Component Typecomplete body/contact assembly and light block
Fixing Collar Materialzamak
Head Type, Contacts Usagestandard
Connections - Terminalsplug-in connector
Contacts Type And Composition1 NO + 1 NC
Contact Operationslow-break
Light Source Colourwhite
Device Short NameZB4
[Us] Rated Supply Voltage24 V AC/DC 50/60 Hz
Bulb Baseintegral LED
Warranty18 months
Terminals Description Iso N?1(11-12)NC
Short-Circuit Protection4 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force2 N NC changing electrical state || 2.3 N NO changing electrical state
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwith EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage4 kV EN 60947-1
Cad Overall Height47 mm
Current Consumption18 mA
Service Life100000 h at rated voltage and 25 ?C
Surge Withstand1 kV IEC 61000-4-5
[Ui] Rated Insulation Voltage250 V 3)EN/IEC 60947-1
Signalling Typesteady
Operating Torque0.05 N.m NO changing electrical state
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Supply Voltage Limits19.2-30 V DC || 21.6-26.4 V AC
Mechanical Durability5000000 cycles
Cad Overall Width30 mm
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL Listed || DNV || LROS (Lloyds register of shipping) || BV || GL || CSA
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
StandardsEN/IEC 60947-5-5 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-2-6 || 8 kV in free air (in insulating parts) IEC 61000-2-6
Electrical Shock Protection Classclass I IEC 60536
Protective TreatmentTH
Resistance To Fast Transients2 kV IEC 61000-4-4
Electromagnetic Emissionclass B IEC 55011
