IXFB100N50Q3 IXYS | Discrete Semiconductor Products | DigiKey

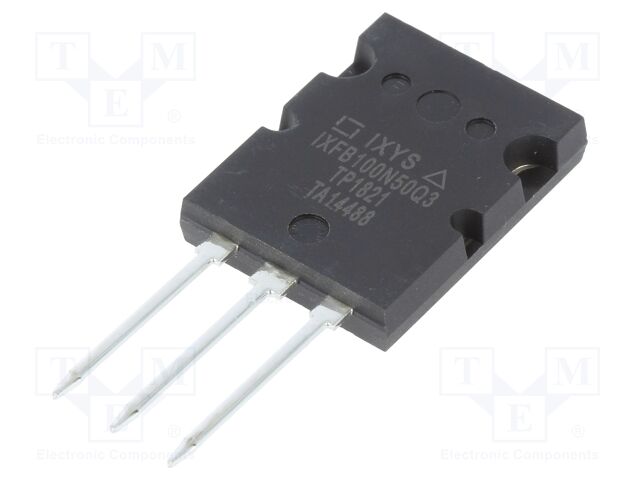

IXYS IXFB100N50Q3 | Transistor: N-MOSFET; unipolar; 500V; 100A; 1560W; PLUS264
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | IXYS |
|---|---|
| Extra Product Name | IXFB100N50Q3 IXYS | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple, tierMinQty1 | 1 |
| MPN | IXFB100N50Q3 |
| qtyInStock | 0 |
| SKU | IXFB100N50Q3-ND |
| tierMinQty2 | 10 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierMinQty6 | 1000 |
| tierMinQty7 | 2500 |
| tierMinQty8 | 5000 |
| tierPrice1 | 29.98000 |
| tierPrice2 | 27.64900 |
| tierPrice3 | 26.40680 |
| tierPrice4 | 23.30000 |
| tierPrice5 | 19.88262 |
| tierPrice6 | 19.57196 |
| tierPrice7 | 19.10596 |
| tierPrice8 | 18.63996 |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Current - Continuous Drain (Id) @ 25?C | 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 49mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 8mA |
| Vgs (Max) | ?30V |
| FET Feature | - |
| Power Dissipation (Max) | 1560W (Tc) |
| Operating Temperature | -55?C ~ 150?C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PLUS264? |
| Package / Case | TO-264-3, TO-264AA |
| Drain to Source Voltage (Vdss) | 500 V |
| Gate Charge (Qg) (Max) @ Vgs | 255 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 13800 pF @ 25 V |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Digi-Key | IXFB100N50Q3-ND | 1 | 1 | 1 @ $29.98, 10 @ $27.65, 25 @ $26.41, 100 @ $23.30, 500 @ $19.88, 1000 @ $19.57, 2500 @ $19.11, 5000 @ $18.64 | |
| 801-1364 | 1 | 23 | 1 | 1 @ $20.21 | |
| Future Electronics | 1021710 | 25 | 25 | 25 @ $22.63 | |
| IXFB100N50Q3 | 1 | 1 | 1 @ $39.49, 3 @ $35.47, 10 @ $33.14, 25 @ $31.98 | ||
| Digi-Key | 2773859 | 1 | 25 | 1 | 1 @ $43.47, 10 @ $40.55, 100 @ $35.21 |
